Find the operation mode of the transistor and the current through the diode. VT=3 V, K=0.25 mA/V^...

Question

Question

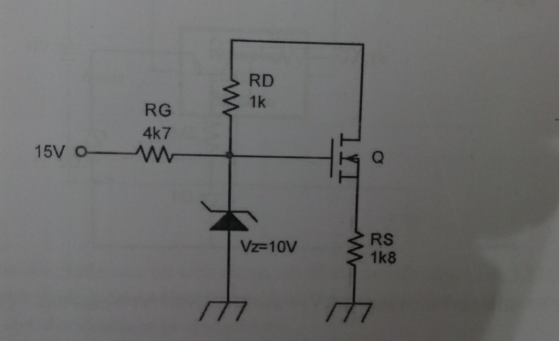

RD 1k RG 4k7 RS 1k8 Vz=10V

Find the operation mode of the transistor and the current through the diode. VT=3 V, K=0.25 mA/V^2. VDrain isn't provided.

engineering Electrical-Engineering

Answer 1

Answer #1

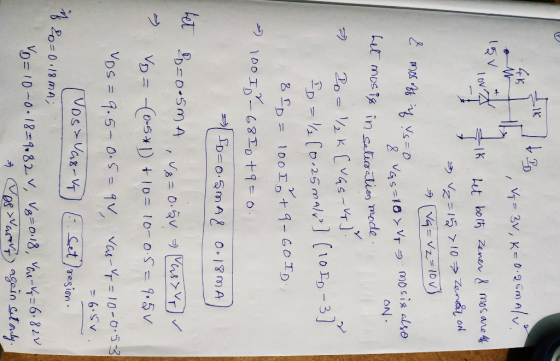

4 K l ov ON tet 马-o- 5m Α ゾ,8二0.gv 0.18 mA

Answer 2

Similar Homework Help Questions

This NMOS transistor has Vt=1 V and (1/2)kn'(W/L)=1 mA/V^2. Find the operating mode (cutoff, triode, or...

This NMOS transistor has Vt=1 V and (1/2)kn'(W/L)=1 mA/V^2. Find the operating mode (cutoff, triode, or saturation) and values for Vg, Id, Vd, and Vs. 49v Up Va (K
Vpp +20 V Ro 1 mA k = 0.25 mA/V 8os = 20 us C2 he...

Vpp +20 V Ro 1 mA k = 0.25 mA/V 8os = 20 us C2 he 0.1 uF V Ri 30 ΚΩ 10 v Rsig VG AH 10 ΚΩ 0.01 uF RG Rs C 2uF In the figure, measurements made at relevant points in the circuit and using the parameters given for FET; this The voltage gain value of the amplifier circuit (entire = source-tooutput) | 6 | and all to make the lower cut-off frequency of the circuit 50...
URGENT The NMOS in the shown figure has Vt = 0.8V, kn = 5 mA/V2, and...

URGENT The NMOS in the shown figure has Vt = 0.8V, kn = 5 mA/V2, and VA = 40 V. The circuit also has Vdd = 5V, VSS = -5V, RG = RLD = 1 M2, and RLS = 0 A. [3 marks] Neglecting the channel length modulation effect, find the value of Rs so that the NMOS operates in saturation with Ip = 0.4 mA B. [2 marks] Neglecting the channel length modulation effect, find the largest possible value...

In the circuit shown below, the knee current is 10 mA. To maintain 5 V across...

In the circuit shown below, the knee current is 10 mA. To maintain 5 V across the output find, the minimum RL and minimum power rating across the diode. Iz min = 10 mA. Is 1000 Vs=10v Vz= 5 v
3. .) In the circuit below, k, = 1 mA/V2, Vt = 1V, VDD = 11V, RL = 1 kΩ a.) Show that the transis...

3. .) In the circuit below, k, = 1 mA/V2, Vt = 1V, VDD = 11V, RL = 1 kΩ a.) Show that the transistor is in Cut off when S1 is connected to A. b.) Show that the transistor is in Ohmic Mode when S1 is connected to B and find RDS, ID, VSD, and Vo 싱, S1 0 80 Vo RL ウ 3. .) In the circuit below, k, = 1 mA/V2, Vt = 1V, VDD = 11V,...
In the circuit shown, find a) vgate b) Find isd in mA. c) Find vdrain in...

In the circuit shown, find a) vgate b) Find isd in mA. c) Find vdrain in Volts. d) find the mode of transistor I know that the mode of transistor is Linear, pleas help me verify the other answers. +10V 50K > Q4 JYT PMOS Vt=-1V K=3mAN2 W 100K 500 3

(20%) Consider an n-channel JFET with VPO= 2.0 V and IDSS= 2.0 mA. The JFET is...

(20%) Consider an n-channel JFET with VPO= 2.0 V and IDSS= 2.0 mA. The JFET is in the self-biasing circuit (page35/38B of Handout). Let Rd = 10 kohm, Rs = 2 kohm, VDD= 10.0 V and ignore Rg. a.Calculate two possible IDS values assuming the transistor is at saturation mode (hint: find IDS with quadratic formula). b. Calculate two possible VDS values based on the above result. c. Choose the right operating point (IDS and VDS) using a calculation (hint:...
V.+w Operation in the triode reglon Condition v. e Wov 20 Vos uov os os-V (2) p V, so onl+Pala Characteristics Same rel...

V.+w Operation in the triode reglon Condition v. e Wov 20 Vos uov os os-V (2) p V, so onl+Pala Characteristics Same relationships as for NMOS trasistos tCharacteristics: a CuGs- V,) ®os- } ip.C Replace .and NA with p,,and Nprespectively. V.V V, and yare negative. 2 wov ps For vos 2( -V) e Conditions for operation in the triode region ip lvi Q1. (10 points) For the following configuration of the given figure below, with the following parameters: VDD= +10...
nMOS transistor is biased width Vds = 2 V and Vgs = 1.1 V. Assume k...

nMOS transistor is biased width Vds = 2 V and Vgs = 1.1 V. Assume k = 2 mA and VT = 0.5 V. Calculate the drain current in mA.

Question 3: For the circuit given below, V, 10V, Ri 4k0, Re2Q, R3=1 k? and Diode...

Question 3: For the circuit given below, V, 10V, Ri 4k0, Re2Q, R3=1 k? and Diode D has a forward voltage drop OTV i. (2pts) Write node equation for Node A using KCL and -w- R1 R2 R3 calculate V 10 VA VA VA . 1K i. (1pts) Calculate current through resistor R
