Question

C++ program

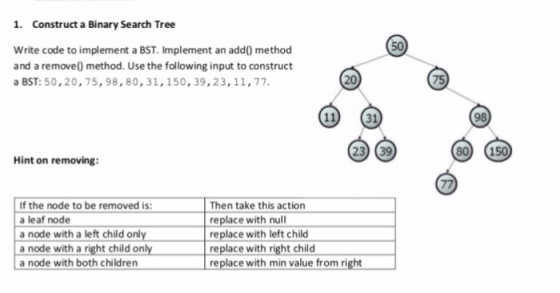

1. Construct a Binary Search Tree 50 Write code to implement a BST. Implement an add) method and a remove) method. Use the following input to construct a BST: 50,20,75,98,80,31,150, 39, 23,11,77 20 75 31 98 0 (150 Hint on removing If the node to be removed is: a leaf node a node with a left child only a node with a right child only a node with both children Then take this action replace with null replace with left child replace with right child replace with min value from right

Answer 1

#include<bits/stdc++.h>
using namespace std;
struct node
{
    int key;
    struct node *left, *right;
};

// A function to create a new BST node
struct node *newNode(int item)
{
    struct node *temp = (struct node *)malloc(sizeof(struct node));
    temp->key = item;
    temp->left = temp->right = NULL;
    return temp;
}

/* A function to insert a new node with given key in BST */
struct node* add(struct node* node, int key)
{
    if (node == NULL) return newNode(key);
    if (key < node->key)
        node->left = add(node->left, key);
    else if (key > node->key)
        node->right = add(node->right, key);

    return node;
}

/* Given a non-empty binary search tree, return the node with minimum
   key value found in that tree. Note that the entire tree does not
   need to be searched. */
struct node * minValueNode(struct node* node)
{
    struct node* current = node;

    /* loop down to find the leftmost leaf */
    while (current->left != NULL)
        current = current->left;

    return current;
}

/* Given a binary search tree and a key, this function deletes the key
   and returns the new root */
struct node* remove(struct node* root, int key)
{
    // base case
    if (root == NULL) return root;

    // If the key to be deleted is smaller than the root's key,
    // then it lies in left subtree
    if (key < root->key)
        root->left = remove(root->left, key);

    // If the key to be deleted is greater than the root's key,
    // then it lies in right subtree
    else if (key > root->key)
        root->right = remove(root->right, key);

    // if key is same as root's key, then This is the node
    // to be deleted
    else
    {
        // node with only one child or no child
        if (root->left == NULL)
        {
            struct node *temp = root->right;
            free(root);
            return temp;
        }
        else if (root->right == NULL)
        {
            struct node *temp = root->left;
            free(root);
            return temp;
        }

        // node with two children: Get the inorder successor (smallest
        // in the right subtree)
        struct node* temp = minValueNode(root->right);

        // Copy the inorder successor's content to this node
        root->key = temp->key;

        // Delete the inorder successor
        root->right = remove(root->right, temp->key);
    }
    return root;
}

// A function to do inorder traversal of BST
void inorder(struct node *root)
{
    if (root != NULL)
    {
        inorder(root->left);
        printf("%d ", root->key);
        inorder(root->right);
    }
}

int main()
{
    struct node *root = NULL;
    root = add(root, 50);
    add(root, 20);
    add(root, 75);
    add(root, 98);
    add(root, 80);
    add(root, 31);
    add(root, 150);
    add(root, 39);
    add(root, 23);
    add(root, 11);
    add(root, 77);
    cout<<"inoreder traversal of binary search tree: \n";
    inorder(root);
    return 0;
}
