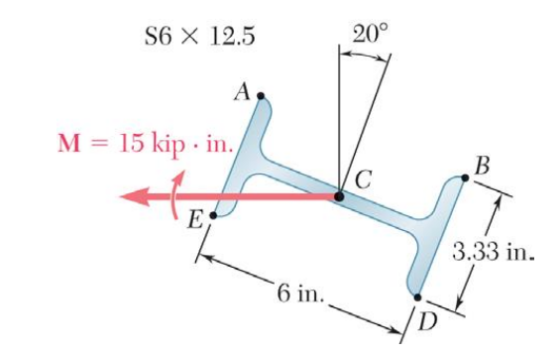

A S6 X 12.5 American Standard Shape steel beam is subjected to an unsymmetrical bending due to an applied moment M = 15 kip-in as shown below. Determine the orientation of the neutral axis with the horizontal. Also calculate the bending stresses in the beam at points A, B, D and E. From the steel table, the S6 X 12.5 shape has IX = 22.0 in4 and IY = 1.8 in4

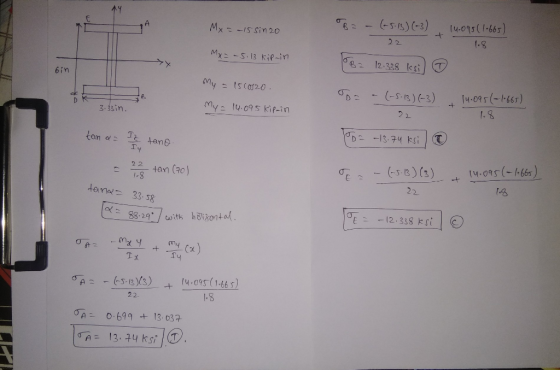

Homework Answers
Add Answer to:
A S6 X 12.5 American Standard Shape steel beam is subjected to an unsymmetrical bending due to an...
Question 3 O out of 12.5 points x If the beam is subjected to an internal...
Question 3 O out of 12.5 points x If the beam is subjected to an internal bending moment of 10.2 kip-ft, determine the normal stress (in ksi) due to bending developed at point A on the cross-section. Note: Your answer should be in requested units and be to 2 decimal places. 12" M 1.5" 1.5" B 6 6" Selected Answer: [None Given] Correct Answer: -1.82 + 2% (ksi)
1. Reinforced Rectangular Concrete Beam The reinforced concrete beam shown is subjected to a bending moment...
1. Reinforced Rectangular Concrete Beam The reinforced concrete beam shown is subjected to a bending moment of 200 kip ft. Knowing that the modulus of elasticity for the concrete and the steel are respectively Ec= 3.75 X 10 psi and Es = 30 x 10 psi, determine the tensile stress in [ksh] that develops in the steel bars. 20 in 1 in diameter 72.5 in 12 in-
Problem 9.4 The W10x15 cantilevered beam is made of A-36 steel and is subjected to the...
Problem 9.4 The W10x15 cantilevered beam is made of A-36 steel and is subjected to the loading shown. Using the table in Appendix C, determine the displacement at B and the slope at B. 4 kip 6 kip В 6 ft 6 ft Problem 9.5 The W410x53 beam is made of A-36 steel has a fixed support at A and a roller support at C. The beam is subjected to the loading shown. Using the table in Appendix C, (a)...
A beam whose cross-section is shown in the figure is subjected to a bending moment M...
A beam whose cross-section is shown in the figure is subjected to a bending moment M inclined at 0 = 70° from the z axis. a) Locate the orientation of the neutral axis B and draw this axis on the figure b) Calculate the maximum flexural tensile stress Omax,T and the maximum flexural compressive stress Omax.c in the beam and indicate at which points in the section these occur. M= 2 Nm D e Z 20 mm A B 60...
Figure 2a shows a composite beam made by placing three steel plates inside a wooden section....
Figure 2a shows a composite beam made by placing three
steel plates inside a wooden
section.
(a) Determine the maximum bending stress developed in the wooden
section and steel plate
if the beam is subjected to allowable bending moment, M of 20 kN.m.
Given that the
Modulus of Elasticity of wood is 13.1 GPa and steel is 200
GPa.
[14 Marks]
Figure 2a: Composite beam
(b) Figure 2b shows another beam without steel plates. Suggest the
maximum bending
stress for...
326 СНАРТER 6 BENDING EXAMPLE 6.18 The reinforced concrete beam has the cross-sectional area shown in Fig. 6-39a. If it...
326 СНАРТER 6 BENDING EXAMPLE 6.18 The reinforced concrete beam has the cross-sectional area shown in Fig. 6-39a. If it is subjected to a bending moment of M = 60 kip ft determine the normal stress in each of the steel reinforcing rods and the maximum normal stress in the concrete. Take Est = 29(10) ksi and Econc = 3.6(103) ksi SOLUTION Since the beam is made of concrete, in the following analysis we will neglect its strength in supporting...
Problem 12.88 The W10 x 15 cantilevered beam is made of A-36 steel and is subjected...
Problem 12.88 The W10 x 15 cantilevered beam is made of A-36 steel and is subjected to the loading shown (Figure 1) Part A Determine the displacement at B.If R-6 kip and B = 5 kip Express your answer with the appropriate units. Figure < 1 of 1 HA Ap- Value Units Submit Request Answer Part B Determine the slope at B if P = 6 kip and P = 5 kip Express your answer with the appropriate units.
3. A 16-foot-long single overhang steel beam is loaded as shown. Assuming a W8 x 35...
3. A 16-foot-long single overhang steel beam is loaded as shown. Assuming a W8 x 35 section, determine the maximum bending stress developed. (A992 steel, Fb-30 ksi) (25 points) Gk INSTRUCTIONS For PROBLEM do the following steps: 1. Show ALL your work 2. Draw appropriately labeled FBDs 3. Use appropriate segments to develop expressions for the shear force and bending moment. diagrams in a standard format the required stresses in the critical points in the 4. Draw the shear force...
Question 6 O out of 12.5 points The bar has a diameter of 1.8 in. If...
Question 6 O out of 12.5 points The bar has a diameter of 1.8 in. If it is subjected to the loadings shown (P = 299 kip, T = 36.9 kip-ft, L1 = 1.38 ft, and L2 = 1.09 ft, determine the shear stress (in ksi) at point B. Note: Your answer should include requested units and be to 3 decimal places. у 30° P Selected Answer: 3 [None Given] Correct Answer: 386.688 + 2% (ksi) Question 7 O out...
please help quick (15 pts.) A bending moment M is applied to the beam section shown...
please help quick
(15 pts.) A bending moment M is applied to the beam section shown in Figure 1. If the highest compressive stress due to the loading is 60MPa, determine a) the moment M applied to the section and, b) the orientation of the neutral axis. 20° B 50 mm 5 mm 5 וחוון M D E 5 mm 50 mm 18,57 mm 1 = 281 x 10 mm 1. - 176,9 x 103 mm Figure 1 "LEGAL AND...
Question 3 O out of 12.5 points x If the beam is subjected to an internal bending moment of 10.2 kip-ft, determine the normal stress (in ksi) due to bending developed at point A on the cross-section. Note: Your answer should be in requested units and be to 2 decimal places. 12" M 1.5" 1.5" B 6 6" Selected Answer: [None Given] Correct Answer: -1.82 + 2% (ksi)
1. Reinforced Rectangular Concrete Beam The reinforced concrete beam shown is subjected to a bending moment of 200 kip ft. Knowing that the modulus of elasticity for the concrete and the steel are respectively Ec= 3.75 X 10 psi and Es = 30 x 10 psi, determine the tensile stress in [ksh] that develops in the steel bars. 20 in 1 in diameter 72.5 in 12 in-
Problem 9.4 The W10x15 cantilevered beam is made of A-36 steel and is subjected to the loading shown. Using the table in Appendix C, determine the displacement at B and the slope at B. 4 kip 6 kip В 6 ft 6 ft Problem 9.5 The W410x53 beam is made of A-36 steel has a fixed support at A and a roller support at C. The beam is subjected to the loading shown. Using the table in Appendix C, (a)...
A beam whose cross-section is shown in the figure is subjected to a bending moment M inclined at 0 = 70° from the z axis. a) Locate the orientation of the neutral axis B and draw this axis on the figure b) Calculate the maximum flexural tensile stress Omax,T and the maximum flexural compressive stress Omax.c in the beam and indicate at which points in the section these occur. M= 2 Nm D e Z 20 mm A B 60...
Figure 2a shows a composite beam made by placing three
steel plates inside a wooden
section.
(a) Determine the maximum bending stress developed in the wooden
section and steel plate
if the beam is subjected to allowable bending moment, M of 20 kN.m.
Given that the
Modulus of Elasticity of wood is 13.1 GPa and steel is 200
GPa.
[14 Marks]
Figure 2a: Composite beam
(b) Figure 2b shows another beam without steel plates. Suggest the
maximum bending
stress for...
326 СНАРТER 6 BENDING EXAMPLE 6.18 The reinforced concrete beam has the cross-sectional area shown in Fig. 6-39a. If it is subjected to a bending moment of M = 60 kip ft determine the normal stress in each of the steel reinforcing rods and the maximum normal stress in the concrete. Take Est = 29(10) ksi and Econc = 3.6(103) ksi SOLUTION Since the beam is made of concrete, in the following analysis we will neglect its strength in supporting...
Problem 12.88 The W10 x 15 cantilevered beam is made of A-36 steel and is subjected to the loading shown (Figure 1) Part A Determine the displacement at B.If R-6 kip and B = 5 kip Express your answer with the appropriate units. Figure < 1 of 1 HA Ap- Value Units Submit Request Answer Part B Determine the slope at B if P = 6 kip and P = 5 kip Express your answer with the appropriate units.
3. A 16-foot-long single overhang steel beam is loaded as shown. Assuming a W8 x 35 section, determine the maximum bending stress developed. (A992 steel, Fb-30 ksi) (25 points) Gk INSTRUCTIONS For PROBLEM do the following steps: 1. Show ALL your work 2. Draw appropriately labeled FBDs 3. Use appropriate segments to develop expressions for the shear force and bending moment. diagrams in a standard format the required stresses in the critical points in the 4. Draw the shear force...
Question 6 O out of 12.5 points The bar has a diameter of 1.8 in. If it is subjected to the loadings shown (P = 299 kip, T = 36.9 kip-ft, L1 = 1.38 ft, and L2 = 1.09 ft, determine the shear stress (in ksi) at point B. Note: Your answer should include requested units and be to 3 decimal places. у 30° P Selected Answer: 3 [None Given] Correct Answer: 386.688 + 2% (ksi) Question 7 O out...
please help quick
(15 pts.) A bending moment M is applied to the beam section shown in Figure 1. If the highest compressive stress due to the loading is 60MPa, determine a) the moment M applied to the section and, b) the orientation of the neutral axis. 20° B 50 mm 5 mm 5 וחוון M D E 5 mm 50 mm 18,57 mm 1 = 281 x 10 mm 1. - 176,9 x 103 mm Figure 1 "LEGAL AND...
