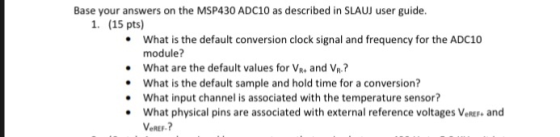

Base your answers on the MSP430 ADC10 as described in SLAUJ user guide. 1. (15 pts) What is the d...

Question

Question

engineering Electrical-Engineering

Answer 1

Answer #1

1) From ADC10CTL1 register the default ADC10SSELx bits will be 00 that means clock source will be ADC10OSC and its default frequency is 5MHz.

2)From ADC10CTL0 register the default SERFx value is 000. That means V_R+= V_cc and V_R-= V_ss

3)From ADC10CTL0 register the default ADC10SHTx bits will be 00 that means that means 4 x ADC10CLKs

4) ADC10 (1010) channel is connected to the internal temperature sensor .

5)P1.3 is connected to V_eREF- and P1.4 is connected to V_eREF+
