Homework Answers
Add Answer to:

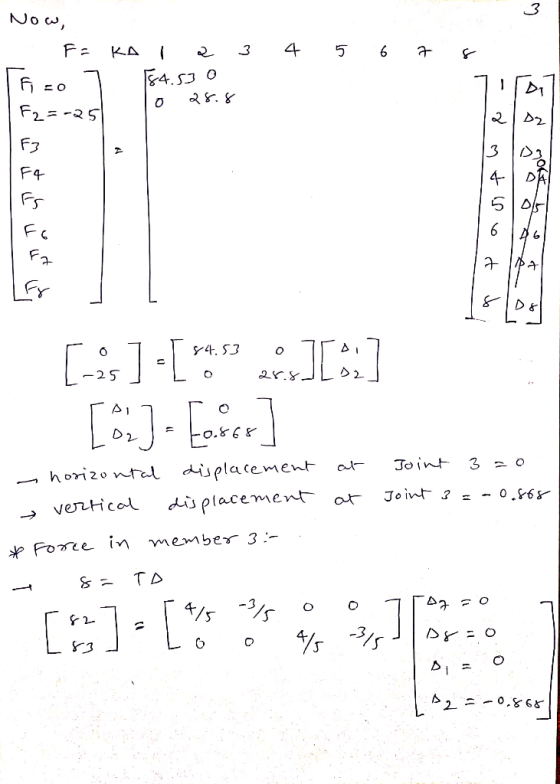

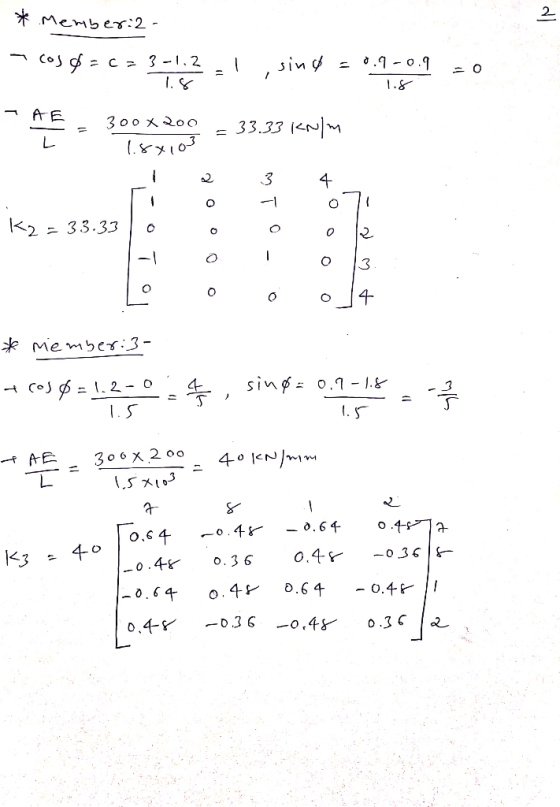

Determine the horizontal and vertical displacements at joint 3 and the force in member 3 of the a...
12 kN 144. Determine the vertical deflection at joint 2 and the force in member 4...
12 kN 144. Determine the vertical deflection at joint 2 and the force in member 4 of the truss in Prob. 14-3. Take A = 0,0015 m- and E = 200 GPa for each member. Page 20
Week 7. Question 1: Use the stiffness method to determine the horizontal and vertical displacements at...
Week 7. Question 1: Use the stiffness method to determine the horizontal and vertical displacements at joint A. For all members, E-206.8 GPa and A - 1290 mm? Take a - 8 mandb-6.1 m B 2 انها 160 kN Solve the problem by following these steps Part 1) Calculate the stiffness matrix of each member in the global coordinate system. Check kna (the value at the second column and second row) in each member stiffness matrix a) Member 1: ky...
20 kN 5 Determine the vertical displacement of joint B. Assume the members are pin connected...
20 kN 5 Determine the vertical displacement of joint B. Assume the members are pin connected at their end points. Take A = 200 mm and E= 200 GPa for each member. Use the method of virtual work. 12 kN #m B 4 m
Q3: Determine the vertical and horizontal displacement of joint A for the truss shown in Fig....
Q3: Determine the vertical and horizontal displacement of joint A for the truss shown in Fig. (3). each bar is made of steel and has the cross-sectional area of 400mm Take E = 200 GPa Use the method of virtual work. E D 2 m |в -1.5 m -1.5 m 20 KN 40 KN Fig. (3)
2. Determine the vertical displacement at joint B and horizontal displacement at joint D using Castigliano's...
2. Determine the vertical displacement at joint B and horizontal displacement at joint D using Castigliano's Second Theorem. The truss is pinned and roller at A and C, respectively. Use, E = 200 GPa and A = 2400 mm. E = 200 x 10°N/m². 20 KN 60 CAB 4 m 3m 3m
Q3: Determine the vertical and horizontal displacement of joint A for the truss shown in Fig....
Q3: Determine the vertical and horizontal displacement
of joint A for the truss shown in Fig. (3), each bar is made of
steel and has the cross-sectional area of 400mm?. Take E = 200 GPa.
Use the method of virtual work.
E D 00. 2 m СІ Ao cocoa B 1.5 m 1.5 m 20 KN 40 kN Fig. (3)
Use MATLAB to determine the five unknown displacements of the following truss and determine the axial...
Use MATLAB to determine the five unknown displacements of the
following truss and determine the axial force in all members of the
truss. Take A = 0.0015 m^2 and E = 200 GPa for each member.
Please post the MATLAB code, as well as the final answers.
2 4 1 3 m 4 13 4 m 7 kN
The cross-sectional area of each member of the truss shown in the figure is 4 =...
The cross-sectional area of each member of the truss shown in the figure is 4 = 400 mm and E = 200 GPa. (a) Determine the vertical displacement of joint Cif a 4-KN force is applied to the truss at C. (b) If no loads act on the truss, what would be the vertical displacement of joint C if member AB were 5 mm too short? (c) If 4 kN force and fabrication error are both accounted, what would be...
Name 1Pag Question 1 (35 marks) Use the method of virtual work to determine the vertical displace...
structure design
Name 1Pag Question 1 (35 marks) Use the method of virtual work to determine the vertical displacement of joint C of the truss below The cross-sectional area of each member is A 300 mm2 and E- 200 GPa Note 1 GPa -1.0 x 10 kN/m 1 mm2-10 x 10-*m2 3 kN 2 m 2 m 1.5 m EA Set out wour computations as follows (a) Find the reactions at hinge support E and at roller support A b)...
Use the stiffness method to determine the horizontal and vertical components of the displacement at Joints...
Use the stiffness method to determine the horizontal and vertical components of the displacement at Joints C and D. For all bars, E = 206.8 GPa and A = 1290 mm². Take i = 70 kN and j = 80 kN. 3.66 m 4.88 m Joint C: a) Az = b) 4y = Joint D: c) 4, = d) 4, =
12 kN 144. Determine the vertical deflection at joint 2 and the force in member 4 of the truss in Prob. 14-3. Take A = 0,0015 m- and E = 200 GPa for each member. Page 20
Week 7. Question 1: Use the stiffness method to determine the horizontal and vertical displacements at joint A. For all members, E-206.8 GPa and A - 1290 mm? Take a - 8 mandb-6.1 m B 2 انها 160 kN Solve the problem by following these steps Part 1) Calculate the stiffness matrix of each member in the global coordinate system. Check kna (the value at the second column and second row) in each member stiffness matrix a) Member 1: ky...
20 kN 5 Determine the vertical displacement of joint B. Assume the members are pin connected at their end points. Take A = 200 mm and E= 200 GPa for each member. Use the method of virtual work. 12 kN #m B 4 m
Q3: Determine the vertical and horizontal displacement of joint A for the truss shown in Fig. (3). each bar is made of steel and has the cross-sectional area of 400mm Take E = 200 GPa Use the method of virtual work. E D 2 m |в -1.5 m -1.5 m 20 KN 40 KN Fig. (3)
2. Determine the vertical displacement at joint B and horizontal displacement at joint D using Castigliano's Second Theorem. The truss is pinned and roller at A and C, respectively. Use, E = 200 GPa and A = 2400 mm. E = 200 x 10°N/m². 20 KN 60 CAB 4 m 3m 3m
Q3: Determine the vertical and horizontal displacement
of joint A for the truss shown in Fig. (3), each bar is made of
steel and has the cross-sectional area of 400mm?. Take E = 200 GPa.
Use the method of virtual work.
E D 00. 2 m СІ Ao cocoa B 1.5 m 1.5 m 20 KN 40 kN Fig. (3)
Use MATLAB to determine the five unknown displacements of the
following truss and determine the axial force in all members of the
truss. Take A = 0.0015 m^2 and E = 200 GPa for each member.
Please post the MATLAB code, as well as the final answers.
2 4 1 3 m 4 13 4 m 7 kN
The cross-sectional area of each member of the truss shown in the figure is 4 = 400 mm and E = 200 GPa. (a) Determine the vertical displacement of joint Cif a 4-KN force is applied to the truss at C. (b) If no loads act on the truss, what would be the vertical displacement of joint C if member AB were 5 mm too short? (c) If 4 kN force and fabrication error are both accounted, what would be...
structure design
Name 1Pag Question 1 (35 marks) Use the method of virtual work to determine the vertical displacement of joint C of the truss below The cross-sectional area of each member is A 300 mm2 and E- 200 GPa Note 1 GPa -1.0 x 10 kN/m 1 mm2-10 x 10-*m2 3 kN 2 m 2 m 1.5 m EA Set out wour computations as follows (a) Find the reactions at hinge support E and at roller support A b)...
Use the stiffness method to determine the horizontal and vertical components of the displacement at Joints C and D. For all bars, E = 206.8 GPa and A = 1290 mm². Take i = 70 kN and j = 80 kN. 3.66 m 4.88 m Joint C: a) Az = b) 4y = Joint D: c) 4, = d) 4, =
