Homework Answers
Add Answer to:

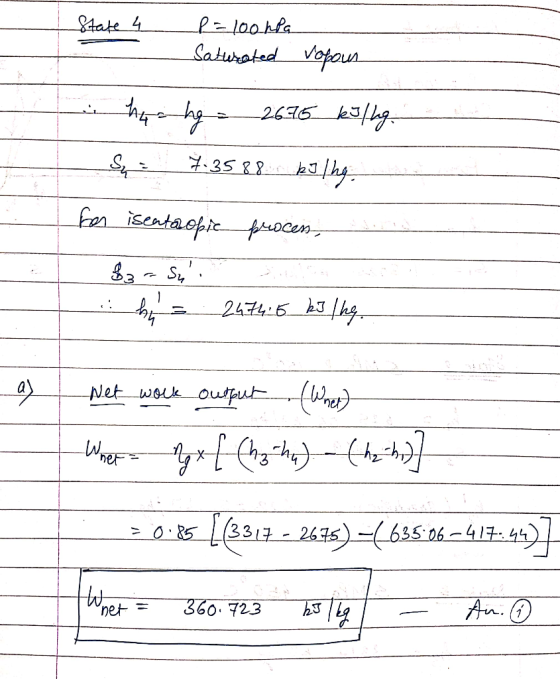

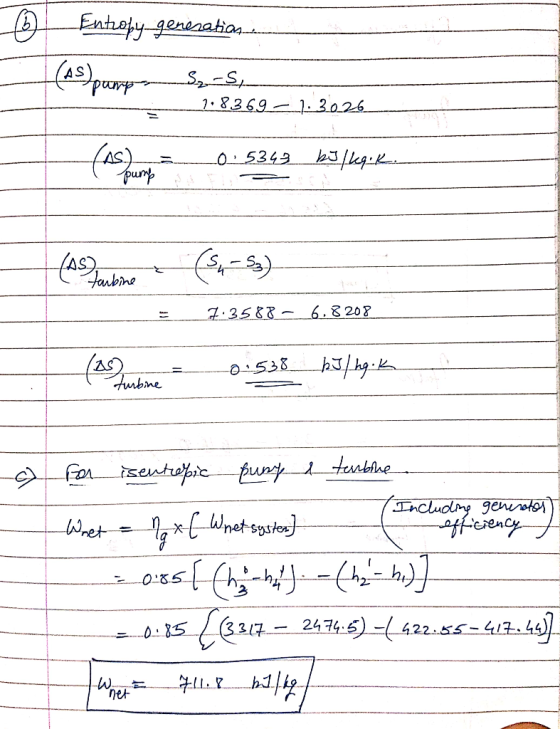

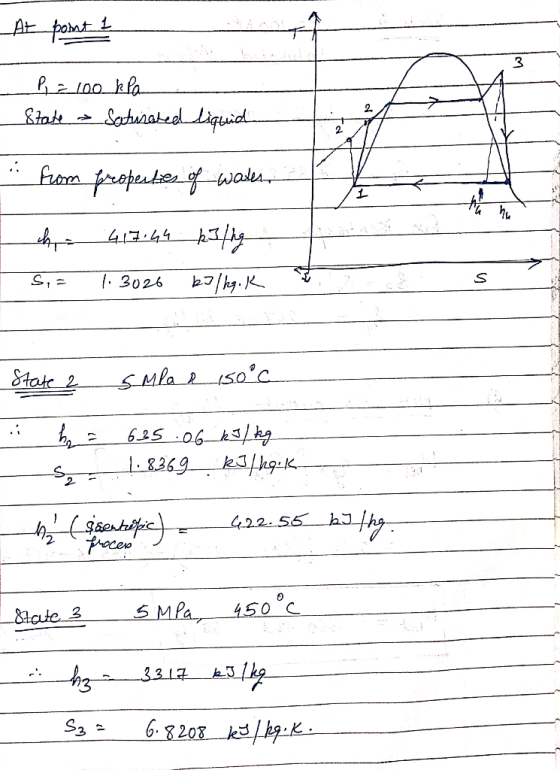

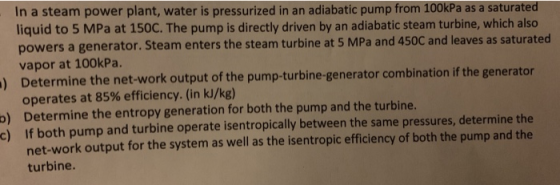

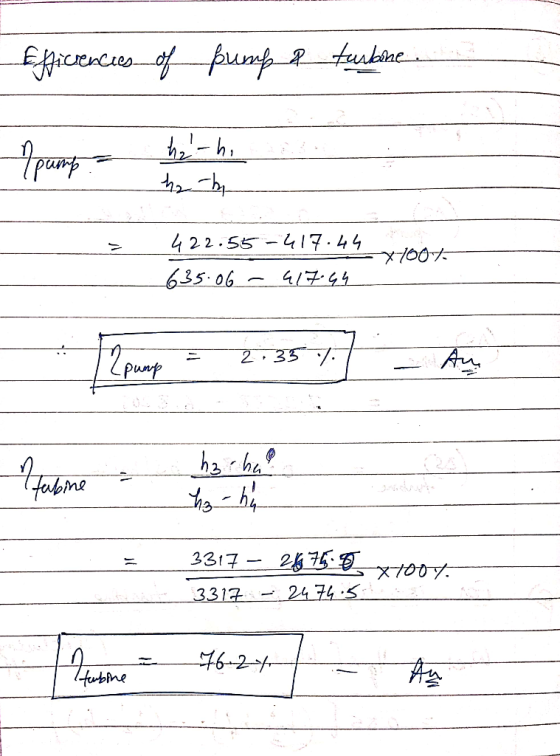

In a steam power plant, water is pressurized in an adiabatic pump from 100kPa as a saturated liqu...
A combined gas turbine-vapor power plant has a net power output of 100 MW. Air enters...
A combined gas turbine-vapor power plant has a net power output of 100 MW. Air enters the compressor of the gas turbine at 100kPa, 300K, and is compressed to 1200kPa. The isentropic efficiency of the compressor is 84%. The conditions at the inlet to the turbine are 1200kPa and 1400 K. Air expands through the turbine, which has an isentropic efficiency of 88%, to a pressure of 100kPa. The air then passes through the interconnecting heat exchanger, and is finally...
A power plant operates on a regenerative vapor power cycle with one open feedwater heater. Steam...
A power plant operates on a regenerative vapor power cycle with one open feedwater heater. Steam enters the first turbine stage at 12 MPa, 560°C and expands to 1 MPa, where some of the steam is extracted and diverted to the open feedwater heater operating at 1 MPa. The remaining steam expands through the second turbine stage to the condenser pressure of 6 kPa. Saturated liquid exits the open feedwater heater at 1 MPa. The net power output for the...
A power plant operates on a regenerative vapor power cycle with one open feedwater heater. Steam...
A power plant operates on a regenerative vapor power cycle with one open feedwater heater. Steam enters the first turbine stage at 12 MPa, 560°C and expands to 1 MPa, where some of the steam is extracted and diverted to the open feedwater heater operating at 1 MPa. The remaining steam expands through the second turbine stage to the condenser pressure of 28 kPa. Saturated liquid exits the open feedwater heater at 1 MPa. The net power output for the...
11) An adiabatic compressor is to be powered by a direct-coupled adiabatic turbine that is also...
11) An adiabatic compressor is to be powered by a direct-coupled adiabatic turbine that is also driving a generator. Steam enters the turbine at 10 MPa and 500 °C at a rate of 15 kgs and exits at 20 kPa. The turbine isentropic efficiency is 85% Air enters the compressor at 98 kPa and 230C at a rate of 10 kg/s, and exits the compressor at 1.2 MPa. The compressor efficiency is 75 %. Determine: a) the power requirement of...
Steam enters an adiabatic turbine steadily at 7 MPa, 500 °C, and 45 m/s
Steam enters an adiabatic turbine steadily at 7 MPa, 500 °C, and 45 m/s, and leaves at 100 kPa and 75 m/s. If the power output of the turbine is 5 MW and the isentropic efficiency is 77 percent, determine: A. the mass flow rate of steam through the turbine, B. the temperature at the turbine exit, and C. the rate of entropy generation during this process.
Question 3 [30 marks] A reheat Rankine cycle is designed for a steam power plant. Steam...
Question 3 [30 marks] A reheat Rankine cycle is designed for a steam power plant. Steam enters both the high- and low- pressure turbines at 600oC. The maximum and minimum pressures of the cycle are 20 MPa and 20 kPa, respectively. Steam leaves the condenser as a saturated liquid. The moisture content of the steam at the exit of the low-pressure turbine is 4% if the actual expansion process is adiabatic; 8.5% if the ideal expansion process is isentropic. The...
In a reheat-cycle power plant, steam enters the high-pressure turbine at 5 MPa, 450°C, and expands...
In a reheat-cycle power plant, steam enters the high-pressure turbine at 5 MPa, 450°C, and expands to 0.5 MPa, after which it is reheated to 450°C. The steam is then expanded through the low-pressure turbine to 7.5 kPa. Liquid water (Vi 0.001 m/kg) leaves the condensor at 30°C, is pumped to 5 MPa, and returned to the steam generator. Each turbine is adiabatic, with an isentropic efficiency of 81.6 % and the pump efficiency is 848 %. If the total...
1. (10 points) A combined gas turbine-vapor power plant has a net power output of 45...
1. (10 points) A combined gas turbine-vapor power plant has a net power output of 45 MW. Air enters the compressor of the gas turbine at 100 kPa, 300 K, and is compressed to 1200 kPa. The isentropic efficiency of the compressor is 84%. The condition at the inlet to the turbine is 1200 kPa, 1400 K. Air expands through the turbine, which has an isentropic efficiency of 88%, to a pressure of 100 kPa. The air then passes through...
You are to analyze a simple steam power plant. At the boiler exit, the pressure is...
You are to analyze a simple steam power plant. At the boiler exit, the pressure is 8 MPa and the temperature is 1000 °C. The turbine isentropic efficiency is 85%. The condenser pressure is 15 kPa and the water is a saturated liquid at the condenser exit. The pump isentropic efficiency is 80%. Answer the following: a) What is the quality at the exit in %, if the turbine is assumed isentropic? b) What is the work output of the...
Consider a steam power plant that operates on a reheat Rankine cycle and has a net...
Consider a steam power plant that operates on a reheat Rankine cycle and has a net power output of 80 MW. Steam enters the high-pressure turbine at 10 MPa and 500°C and the low-pressure turbine at 1 MPa and 500°C. Steam leaves the condenser as a saturated liquid at a pressure of 10 kPa. The isentropic efficiency of the turbine is 74 percent and that of the pump is 95 percent. Determine the quality (or temperature, if superheated) of the...
A power plant operates on a regenerative vapor power cycle with one open feedwater heater. Steam enters the first turbine stage at 12 MPa, 560°C and expands to 1 MPa, where some of the steam is extracted and diverted to the open feedwater heater operating at 1 MPa. The remaining steam expands through the second turbine stage to the condenser pressure of 6 kPa. Saturated liquid exits the open feedwater heater at 1 MPa. The net power output for the...
11) An adiabatic compressor is to be powered by a direct-coupled adiabatic turbine that is also driving a generator. Steam enters the turbine at 10 MPa and 500 °C at a rate of 15 kgs and exits at 20 kPa. The turbine isentropic efficiency is 85% Air enters the compressor at 98 kPa and 230C at a rate of 10 kg/s, and exits the compressor at 1.2 MPa. The compressor efficiency is 75 %. Determine: a) the power requirement of...
In a reheat-cycle power plant, steam enters the high-pressure turbine at 5 MPa, 450°C, and expands to 0.5 MPa, after which it is reheated to 450°C. The steam is then expanded through the low-pressure turbine to 7.5 kPa. Liquid water (Vi 0.001 m/kg) leaves the condensor at 30°C, is pumped to 5 MPa, and returned to the steam generator. Each turbine is adiabatic, with an isentropic efficiency of 81.6 % and the pump efficiency is 848 %. If the total...
1. (10 points) A combined gas turbine-vapor power plant has a net power output of 45 MW. Air enters the compressor of the gas turbine at 100 kPa, 300 K, and is compressed to 1200 kPa. The isentropic efficiency of the compressor is 84%. The condition at the inlet to the turbine is 1200 kPa, 1400 K. Air expands through the turbine, which has an isentropic efficiency of 88%, to a pressure of 100 kPa. The air then passes through...
