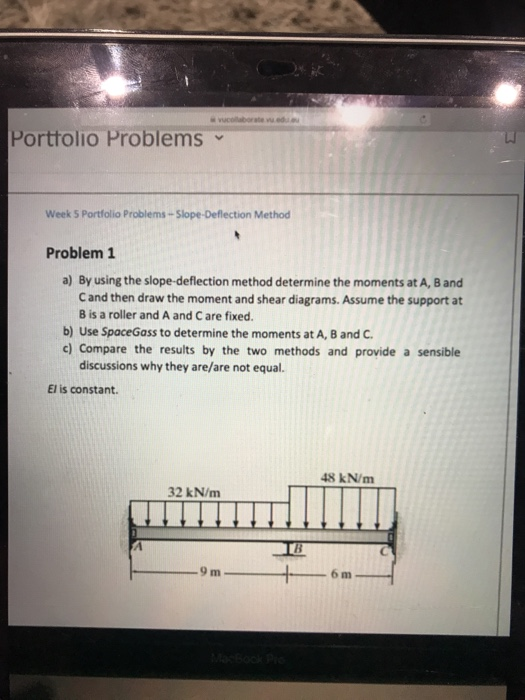

please becareful with your handwrite, thats the third time i asked
for this Question, also dont make it as PDF just normal pic will be
okHomework Answers
Add Answer to:
Please becareful with your handwrite, thats the third time i asked for this Question, also dont m...
A) By using the slope-deflection method determine the moments at A, B, C and D and then draw the ...
a) By using the slope-deflection method determine the moments at A, B, C and D and then draw the moment and shear diagrams. Assume the supports at B and C are a roller and A and D are fixed b) Use SpaceGass to determine the moments at A, B, Cand D. c) Compare the results by the two methods and provide a sensible discussions why they are/are not equal. El is constant. 2.5 kN 20 kN/m 4
a) By using...
Portalio Problems-Virtal Work M ork Method Problem 3 For the frame structure below: a) Use the me...
Portalio Problems-Virtal Work M ork Method Problem 3 For the frame structure below: a) Use the method of Virtual Work to determine the slope and horizontal b) Use SpaceGass to determine the slope and horizontal displacement at c) Compare the results by the two methods and provide a sensible displacement of joint C joint C discussions why they are/are not equal. Take E 200 GPa and /- 200(10) mm 6 kN/m 3 m 2.4 m C 3 kN/m
Portalio Problems-Virtal...
4. Calculate the moments at A, B, C and Din Figure 4 by using Slope Deflection...
4. Calculate the moments at A, B, C and Din Figure 4 by using Slope Deflection Method, then draw the shear force and moment diagram for the frame. Assume A is pinned, D is a roller and C is fixed. El is constant. 80 KN 20 kN/m -15 m 12 m- 12 m Figure 4 (30 marks) (CLO3: PLO2: C4)
Determine the reactions and moments using Slope-deflection method and draw V, M diagram SITUATION 너-B 28...
Determine the reactions and moments using
Slope-deflection method and draw V, M diagram
SITUATION 너-B 28 KN y1KH 38 KN/m 1.5T 2/KN-n 1m, 2m SLOPE- DEFLECTION METHOD: DETERMINE THE REACTIONS AND MOMENTS, AND DRAW SHEAR AND MOMENT DIAGRAM SOLUTION

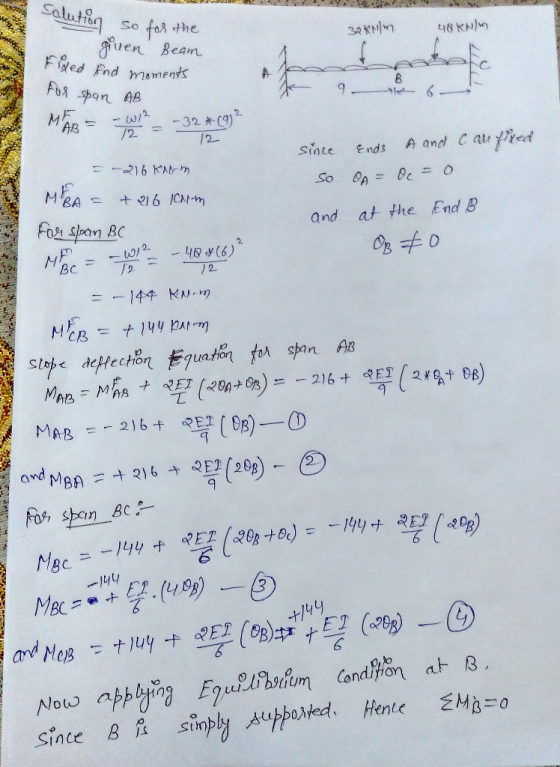

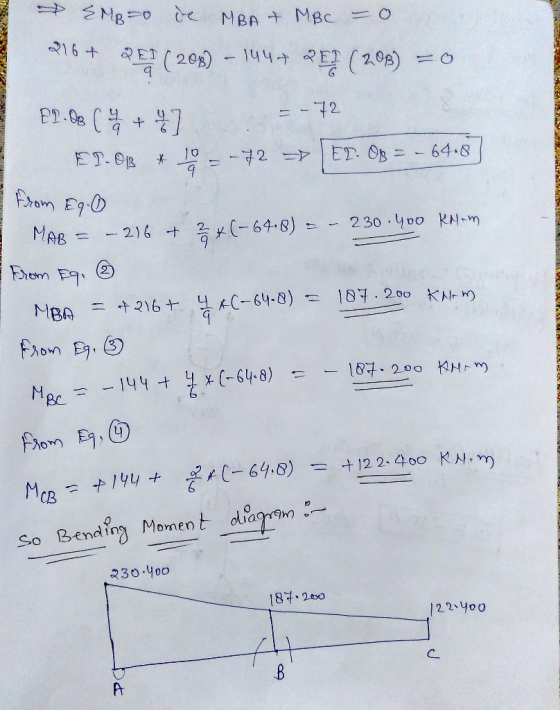

Determine the reactions and moments using Slope-deflection method and draw V, M diagram SITDATION 1.B 38...
Determine the reactions and moments using
Slope-deflection method and draw V, M diagram
SITDATION 1.B 38 KN/m 58KN/m 2 SLOPE-DEFLECTION METHOD: DETERMINE THE REACTIONS AND MOMENTS. AND DRAW SHEAR AND MOMENT DIAGRAM
Please make sure your handwriting is clear and readable. Thank you. :) 1. Determine the reactions...
Please make sure your handwriting is clear and readable. Thank
you. :)
1. Determine the reactions and draw the shear and bending moment diagrams for the shown beam using slope-deflection method. 20 kN/m 60 KN El = constant E = 70 GPa 1 = 800 ( 1 00) mm4
Determine the reactions and moments using Slope-deflection method and draw V, M diagram 3I TUATION 3.B...
Determine the reactions and moments using
Slope-deflection method and draw V, M diagram
3I TUATION 3.B 88 KN/m 5/ KN 41 KN/m 21-5 mD6m E 2I 5I SLOPE-DEFLECTON METHOD : DETERMINE THE REACTIONS AND MOMENTS,AND-、 DRAW-THE-SHEAR-AND-MOMENT DIAG RAM SO LUTİON
Use moment distribution method or slope deflection method. The frame shown if Fig. 2.1 is supporting...
Use moment distribution method or slope deflection
method.
The frame shown if Fig. 2.1 is supporting a lateral load of 60 kN and a gravity load of 50 kNIm. Neglect the weight of the members (a) Determine th reaction forces. (b) Draw the axial, shear, and bending moment and qualitative deflected shape diagrams of the frame. Specify values at a change of loading positions and at all points of zero shear and moment. Use slope-deflection method 2m Fig. 2.1 w...
The beam is shown in the figure below. Use the slope-deflection method. The support Ais pinned,...
The beam is shown in the figure below. Use the slope-deflection method. The support Ais pinned, support B is a roller, and support C is fixed. Assume El = 21537 kNm2. The support at B settles by 73 mm (downwards). The segment AB is subjected to a uniformly distributed load w= 11 kN/m. The segment BC is subjected to a point load P = 91 KN. Enter the digit one in the answer box. The link will be provided on...
Problem#2: Use the conjugate-beam method and determine the slope just to the left and just to...
Problem#2: Use the conjugate-beam method and determine the slope just to the left and just to the right of the pin at B. Also, determine the deflection at D. Assume the beam is fixed supported at A, and C is a roller. El is constant. [35 points] Ma 5 kN m moment at point on conjugaie bea ri shear at point on conjngele beam Ay Im im
a) By using the slope-deflection method determine the moments at A, B, C and D and then draw the moment and shear diagrams. Assume the supports at B and C are a roller and A and D are fixed b) Use SpaceGass to determine the moments at A, B, Cand D. c) Compare the results by the two methods and provide a sensible discussions why they are/are not equal. El is constant. 2.5 kN 20 kN/m 4
a) By using...
Portalio Problems-Virtal Work M ork Method Problem 3 For the frame structure below: a) Use the method of Virtual Work to determine the slope and horizontal b) Use SpaceGass to determine the slope and horizontal displacement at c) Compare the results by the two methods and provide a sensible displacement of joint C joint C discussions why they are/are not equal. Take E 200 GPa and /- 200(10) mm 6 kN/m 3 m 2.4 m C 3 kN/m
Portalio Problems-Virtal...
4. Calculate the moments at A, B, C and Din Figure 4 by using Slope Deflection Method, then draw the shear force and moment diagram for the frame. Assume A is pinned, D is a roller and C is fixed. El is constant. 80 KN 20 kN/m -15 m 12 m- 12 m Figure 4 (30 marks) (CLO3: PLO2: C4)
Determine the reactions and moments using
Slope-deflection method and draw V, M diagram
SITUATION 너-B 28 KN y1KH 38 KN/m 1.5T 2/KN-n 1m, 2m SLOPE- DEFLECTION METHOD: DETERMINE THE REACTIONS AND MOMENTS, AND DRAW SHEAR AND MOMENT DIAGRAM SOLUTION
Determine the reactions and moments using
Slope-deflection method and draw V, M diagram
SITDATION 1.B 38 KN/m 58KN/m 2 SLOPE-DEFLECTION METHOD: DETERMINE THE REACTIONS AND MOMENTS. AND DRAW SHEAR AND MOMENT DIAGRAM
Please make sure your handwriting is clear and readable. Thank
you. :)
1. Determine the reactions and draw the shear and bending moment diagrams for the shown beam using slope-deflection method. 20 kN/m 60 KN El = constant E = 70 GPa 1 = 800 ( 1 00) mm4
Determine the reactions and moments using
Slope-deflection method and draw V, M diagram
3I TUATION 3.B 88 KN/m 5/ KN 41 KN/m 21-5 mD6m E 2I 5I SLOPE-DEFLECTON METHOD : DETERMINE THE REACTIONS AND MOMENTS,AND-、 DRAW-THE-SHEAR-AND-MOMENT DIAG RAM SO LUTİON
Use moment distribution method or slope deflection
method.
The frame shown if Fig. 2.1 is supporting a lateral load of 60 kN and a gravity load of 50 kNIm. Neglect the weight of the members (a) Determine th reaction forces. (b) Draw the axial, shear, and bending moment and qualitative deflected shape diagrams of the frame. Specify values at a change of loading positions and at all points of zero shear and moment. Use slope-deflection method 2m Fig. 2.1 w...
The beam is shown in the figure below. Use the slope-deflection method. The support Ais pinned, support B is a roller, and support C is fixed. Assume El = 21537 kNm2. The support at B settles by 73 mm (downwards). The segment AB is subjected to a uniformly distributed load w= 11 kN/m. The segment BC is subjected to a point load P = 91 KN. Enter the digit one in the answer box. The link will be provided on...
Problem#2: Use the conjugate-beam method and determine the slope just to the left and just to the right of the pin at B. Also, determine the deflection at D. Assume the beam is fixed supported at A, and C is a roller. El is constant. [35 points] Ma 5 kN m moment at point on conjugaie bea ri shear at point on conjngele beam Ay Im im
