Homework Answers
Add Answer to:

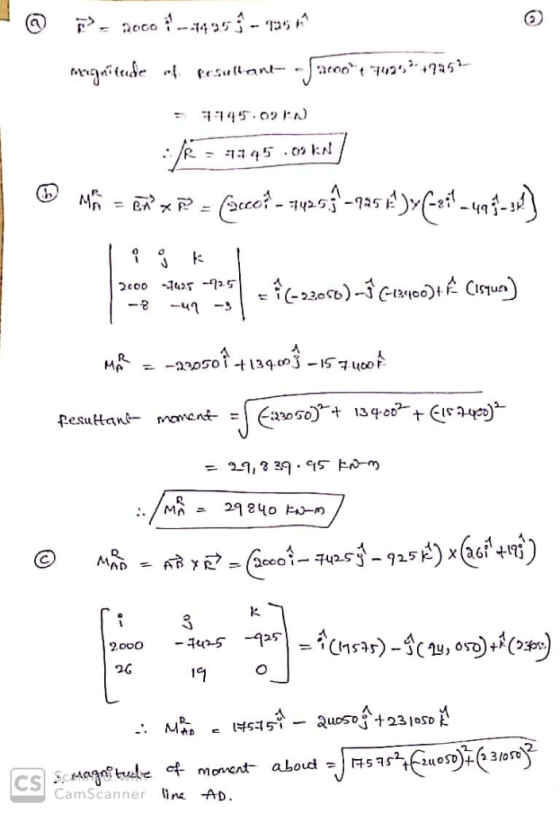

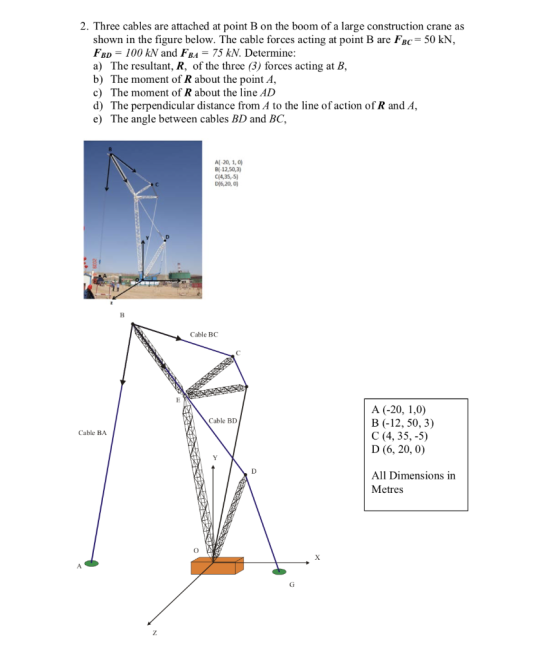

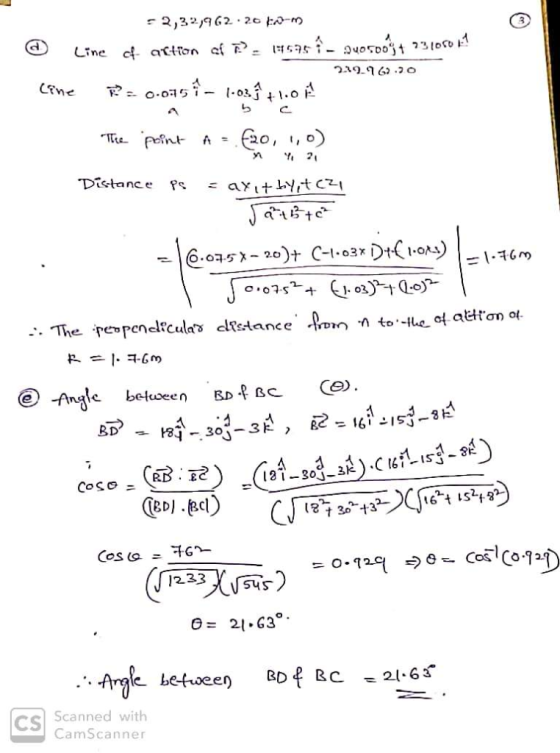

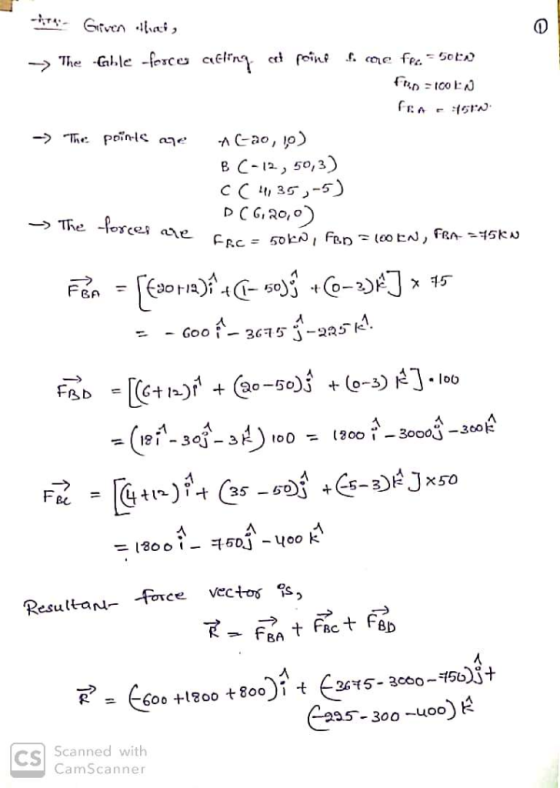

2. Three cables are attached at point B on the boom of a large construction crane as shown in the...
Question 2: (15 Point) The boom ABC is held in place by two cables and a...
Question 2: (15 Point) The boom ABC is held in place by two cables and a ball-and-socket support at A. Force F = 0 i + F j + F k kN is applied at C. Ifthe tension in cable BE is 9-kN and tension in cable BD is 6.4-kN, determine the magnitude of the force Fand D the reactions at A. Weight of the boom is negligible. Do not use geometry .5 m- 1 m
2-P A tugboat pulls on cable AB with a force of 50 kN. Determine the forces...
2-P A tugboat pulls on cable AB with a force of 50 kN. Determine the forces developed in cables BC and BD necessary for equilibrium. (Note: All three cables lie in the same plane.) 址 -30° 20° 50 kN
Q1. A weight of W is supported by three cables AD, BD and DE as shown below. Cables AD and BD are attached to a ver...
Q1. A weight of W is supported by three cables AD, BD and DE as shown below. Cables AD and BD are attached to a vertical wall. Points A, B and C are on the y-z plane while Points C, D and E lie on the x-y plane. Line D-E and Line A-C-B are parallel to x-axis and z-axis, respectively. Given AC-CB and AB-AD-BD, W-10 kN and F -5 kN, determine the tension force in cables AD and BD. (7...
The three supporting cables exert the forces shown on the sign. a) b) Determine the angle...
The three supporting cables exert the forces shown on the sign. a) b) Determine the angle θ between BA and BC. Determine the magnitude of the projected component of the 3 kN force acting along the axis BC of the pipe. 2 m 4 m F-3KNC
A crane is made from a uniform rigid boom of length L = 30m and weight...
A crane is made from a uniform rigid boom of length L = 30m and weight w = 400N. The boom is sup- ported by a frictionless hinge at its lower end. Its upper end is attached to a support cable which is fas- tened behind the boom at the same horizontal level as the hinge. Adjusting the length of the support / cable adjusts the angle of the boom. In a particu- 7/TTI IN lar application, the crane is...
Determine the following: (A) The angle formed by cables AB and AD (B) The perpendicular distance...
Determine the following: (A) The angle formed by cables AB and AD (B) The perpendicular distance from point B to the line AD (C) If the force in cable AC is 500N, find the component of that force in the direction of line AB If the force in cable AC is 500N, find the moment of this force about a line joining BD (D) What is the perpendicular distance from point B and cable AC? (E) 0.36 m 0.56 m...
Force F, 1 kN, is applied in the negative y-direction at point B. The magnitudes of...
Force F, 1 kN, is applied in the negative y-direction at point
B. The magnitudes of the tension in the cables are T(BC) = 707 N
and T(BD) = 1500 N. Point E is 3m from point A.
a) Calculate the vectors representing the tensions in the
cables.
b) Determine the internal force and moment system in the bar at
x-section E. Show the internal forces and moment on free body
diagram.
6 m I) 6 3
1. + 0/2 points Previous Answers NorEngStatics1 3 D 103. The system shown consists of cables...
1. + 0/2 points Previous Answers NorEngStatics1 3 D 103. The system shown consists of cables AB, BC, and CD knotted together at B. Cable BD supports a 190 kg mass at D 2012 190 kg Determine the magnitude of the tensile forces in newtons in cables AB and BC. TAB = 1710 BC = 1259 2. NorEngStatics 1 3.P.006. 0/2 points Previous Answers Type here to search
Draw the shear and bending moment diagrams for the horizontal boom of the crane as pictured...
Draw the shear and bending moment diagrams for the horizontal boom of the crane as pictured here. The load side is on the left and the balast side is on the right of the image. TB.1 m The dimensions and loads are shown in the free body diagram where is 10°, egis 28°, WL is 4 kN, WB is 14 KN, TLIS 9 KN and TB is 20 kN. You do not need to include normal (tension/compression) forces +3 m...
Problem 2: The turnbuckle is tightened until the tension in cable AE is 8kN. Create proper R-vectors for three cables A...
Problem 2: The turnbuckle is tightened until the tension in cable AE is 8kN. Create proper R-vectors for three cables AB, AC and AD. Develop three force vectors using R-vectors (unitize R-vectors). Show three EOE that you will solve to find tensions in AB, Be and CB. Show RREF matrix that you will use to solve for tensions. Show all tensions on an FBD with values AC 2.5 m 2 m D ECODS,a.) 2.5 m & KN EX 2.5 m...
Question 2: (15 Point) The boom ABC is held in place by two cables and a ball-and-socket support at A. Force F = 0 i + F j + F k kN is applied at C. Ifthe tension in cable BE is 9-kN and tension in cable BD is 6.4-kN, determine the magnitude of the force Fand D the reactions at A. Weight of the boom is negligible. Do not use geometry .5 m- 1 m
2-P A tugboat pulls on cable AB with a force of 50 kN. Determine the forces developed in cables BC and BD necessary for equilibrium. (Note: All three cables lie in the same plane.) 址 -30° 20° 50 kN
Q1. A weight of W is supported by three cables AD, BD and DE as shown below. Cables AD and BD are attached to a vertical wall. Points A, B and C are on the y-z plane while Points C, D and E lie on the x-y plane. Line D-E and Line A-C-B are parallel to x-axis and z-axis, respectively. Given AC-CB and AB-AD-BD, W-10 kN and F -5 kN, determine the tension force in cables AD and BD. (7...
The three supporting cables exert the forces shown on the sign. a) b) Determine the angle θ between BA and BC. Determine the magnitude of the projected component of the 3 kN force acting along the axis BC of the pipe. 2 m 4 m F-3KNC
A crane is made from a uniform rigid boom of length L = 30m and weight w = 400N. The boom is sup- ported by a frictionless hinge at its lower end. Its upper end is attached to a support cable which is fas- tened behind the boom at the same horizontal level as the hinge. Adjusting the length of the support / cable adjusts the angle of the boom. In a particu- 7/TTI IN lar application, the crane is...
Determine the following: (A) The angle formed by cables AB and AD (B) The perpendicular distance from point B to the line AD (C) If the force in cable AC is 500N, find the component of that force in the direction of line AB If the force in cable AC is 500N, find the moment of this force about a line joining BD (D) What is the perpendicular distance from point B and cable AC? (E) 0.36 m 0.56 m...
Force F, 1 kN, is applied in the negative y-direction at point
B. The magnitudes of the tension in the cables are T(BC) = 707 N
and T(BD) = 1500 N. Point E is 3m from point A.
a) Calculate the vectors representing the tensions in the
cables.
b) Determine the internal force and moment system in the bar at
x-section E. Show the internal forces and moment on free body
diagram.
6 m I) 6 3
1. + 0/2 points Previous Answers NorEngStatics1 3 D 103. The system shown consists of cables AB, BC, and CD knotted together at B. Cable BD supports a 190 kg mass at D 2012 190 kg Determine the magnitude of the tensile forces in newtons in cables AB and BC. TAB = 1710 BC = 1259 2. NorEngStatics 1 3.P.006. 0/2 points Previous Answers Type here to search
Draw the shear and bending moment diagrams for the horizontal boom of the crane as pictured here. The load side is on the left and the balast side is on the right of the image. TB.1 m The dimensions and loads are shown in the free body diagram where is 10°, egis 28°, WL is 4 kN, WB is 14 KN, TLIS 9 KN and TB is 20 kN. You do not need to include normal (tension/compression) forces +3 m...
Problem 2: The turnbuckle is tightened until the tension in cable AE is 8kN. Create proper R-vectors for three cables AB, AC and AD. Develop three force vectors using R-vectors (unitize R-vectors). Show three EOE that you will solve to find tensions in AB, Be and CB. Show RREF matrix that you will use to solve for tensions. Show all tensions on an FBD with values AC 2.5 m 2 m D ECODS,a.) 2.5 m & KN EX 2.5 m...
