rod bc is 3 meters, wheel a has radius of 1.25 m, collar c can only move vertically,wheel a angual acceleration of .15 rad/sec and angular velocity of 2.5 rad/sec

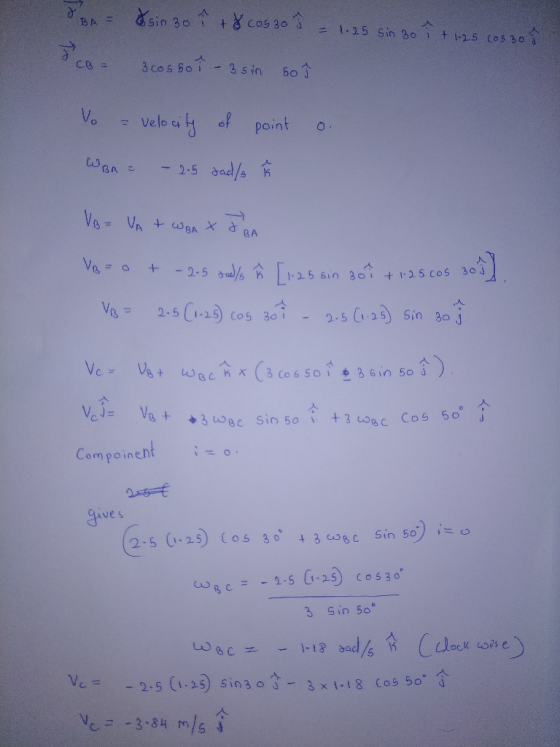

determine the velocity of pt b and c in vector form
angular velocity of rod BC in vector form

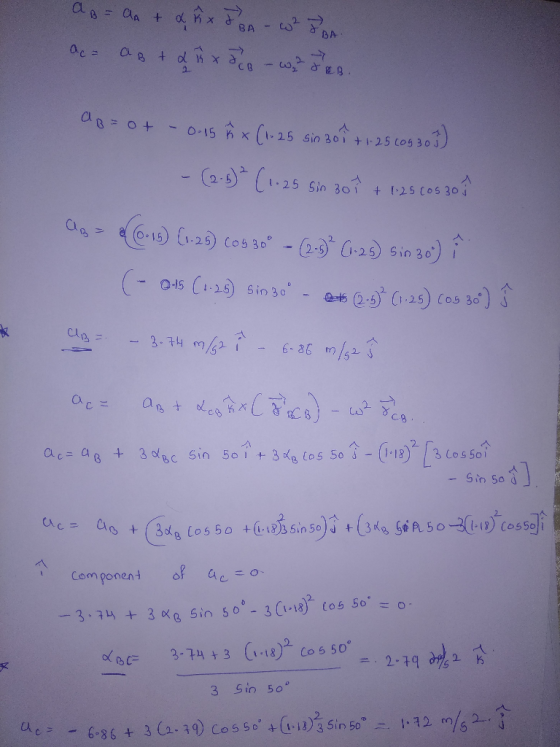

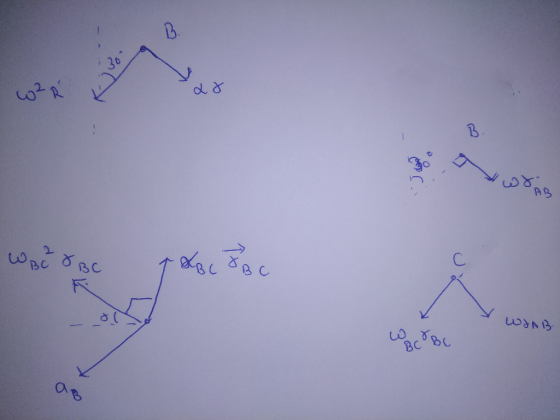

the acceleration of pt b and c in vector form
angular acceleration of rod BC in vector form
Homework Answers
Add Answer to:
Rod bc is 3 meters, wheel a has radius of 1.25 m, collar c can only move vertically,wheel a angua...
Collar C is attached to the rod AB by a double collar and translates along the...
Collar C is attached to the rod AB by a double collar and translates along the circular rod as shown in the figure below. The rod AB rotates counterclockwise with constant angular rate 6 of 3 rad/s. Point A on rod AB is pinned to the circular rod. The circular rod has a radius r of 0.5 m. Determine the velocity and acceleration of the collar C when 8 is 45 degrees. Express your final answers in the inertial reference...
3) (25) The collar at B is free to slide on link CD. The angular velocity...
3) (25) The collar at B is free to slide on link CD. The angular velocity of the link AB is 3 rad/sec CCW and the angular acceleration of link AB is 4 rad/sec? CW. Determine the angular velocity and angular acceleration of link CD together with the acceleration and velocity of the collar at B relative to rod CD. The length L is 2 m. The distance from C to B is also L. The pins at A and...
Review The collar C is pinned to rod CD while it slides on rod AB. Rod...
Review The collar C is pinned to rod CD while it slides on rod AB. Rod AB has an angular velocity of WAB = 3 rad/s and an angular acceleration of QAB = 9 rad/s, both acting counterclockwise. Suppose that a = 4 m and b = 3 m. (Figure 1) Part A Determine the angular velocity of rod CD at the instant shown measured counterclockwise. Express your answer using three significant figures. Enter positive value if the angular velocity...
A wheel with radius 0.50 meters starts rotating at a constant angular acceleration of 0.5 rad/s^2....
A wheel with radius 0.50 meters starts rotating at a constant angular acceleration of 0.5 rad/s^2. a) What is the angular velocity of the wheel after 15 seconds? b) The angle through which the wheel rotates during this time? c) The number of revolutions made by the wheel during this time? d) What is the linear velocity of the wheel after 20 seconds? e) What is linear acceleration of the wheel after 20 seconds? omega = omega_0 + alpha t...
Problem 1: The wheel shown has a radius of 20 cm, and rolls without slipping. It...
Problem 1: The wheel shown has a radius of 20 cm, and rolls without slipping. It starts at 6 = 3 rad/s when 0 = 0 and is given an angular acceleration a = (0.50) rad/s2, where Ois in radians. When the wheel has traveled 2 revolutions, determine: a. The angular velocity of the wheel b. The velocity of point B (center of wheel) C. The velocity of point C (top of wheel) d. The angular acceleration e. The acceleration...
Q2. The rod OB in Figure Q2 is rotating anticlockwise around O with an angular velocity of 2trad/s. Collar A moves along the rod with speed t sin(2t) m/s 8Orad and r-1m when t 0 s. a) Calculate the m...
Q2. The rod OB in Figure Q2 is rotating anticlockwise around O with an angular velocity of 2trad/s. Collar A moves along the rod with speed t sin(2t) m/s 8Orad and r-1m when t 0 s. a) Calculate the magnitude of the velocity vector of the collar A relative to o at t 1s. 5 Marks] b) Calculate the acceleration vector of the collar A relative to O at t-1s. [6 Marks] c) Determine the Cartesian velocity vector of the...
3. At t-0, angular velocity of a wheel is 24 rad/s, and its angular acceleration is...
3. At t-0, angular velocity of a wheel is 24 rad/s, and its angular acceleration is 30 rad/s. (i) How much angle does the wheel turn through after 2 seconds of rotation? (ii) At t-2 sec., the wheel suddenly begins to undergo angular deceleration (negative angular acceleration) of 8.16 rad/s'. What additional time from t -2 secs, does it take the wheel to come to a stop? Hint: Use appropriate rotational kinematic equation to answer different parts of the question....
Fly Wheel: The fly wheel has a mass M , a radius R , and a...
Fly Wheel: The fly wheel has a mass M , a radius R , and a
moment of inertia I=1/2MR^2
. The fly wheel has a gear of radius Rg
< R that is used to turn the wheel.
Drive Chain: The drive chain connects the gear on the fly wheel to
a motor. The gear, the black circle in the middle, rotates with the
wheel and the chain is pulling on the gear without slipping in the...
A wheel has a radius of 0.4 m and rotates at an angular velocity of 4...
A wheel has a radius of 0.4 m and rotates at an angular velocity of 4 rad/s. A peg at the edge of the wheel is at the heighted point at t -0. What is the period of the motion of the shadow? (A)15 (B) 1.57s(C)2.05 (D) .36(E) 3.14s
3.) Given: The rod AB is confined to move along the inclined planes at A and...
3.) Given: The rod AB is confined to move along the inclined planes at A and B. At the instant shown the rod becomes horizontal and the point A has an acceleration of 3 m/s and a velocity of 2 m/s, both directed down the plane. At the same time on the other side of the rod, the velocity of point B is 2 m/s directed up the plane. In addition, the angular velocity of the rod is AB =...
Collar C is attached to the rod AB by a double collar and translates along the circular rod as shown in the figure below. The rod AB rotates counterclockwise with constant angular rate 6 of 3 rad/s. Point A on rod AB is pinned to the circular rod. The circular rod has a radius r of 0.5 m. Determine the velocity and acceleration of the collar C when 8 is 45 degrees. Express your final answers in the inertial reference...
3) (25) The collar at B is free to slide on link CD. The angular velocity of the link AB is 3 rad/sec CCW and the angular acceleration of link AB is 4 rad/sec? CW. Determine the angular velocity and angular acceleration of link CD together with the acceleration and velocity of the collar at B relative to rod CD. The length L is 2 m. The distance from C to B is also L. The pins at A and...
Review The collar C is pinned to rod CD while it slides on rod AB. Rod AB has an angular velocity of WAB = 3 rad/s and an angular acceleration of QAB = 9 rad/s, both acting counterclockwise. Suppose that a = 4 m and b = 3 m. (Figure 1) Part A Determine the angular velocity of rod CD at the instant shown measured counterclockwise. Express your answer using three significant figures. Enter positive value if the angular velocity...
A wheel with radius 0.50 meters starts rotating at a constant angular acceleration of 0.5 rad/s^2. a) What is the angular velocity of the wheel after 15 seconds? b) The angle through which the wheel rotates during this time? c) The number of revolutions made by the wheel during this time? d) What is the linear velocity of the wheel after 20 seconds? e) What is linear acceleration of the wheel after 20 seconds? omega = omega_0 + alpha t...
Problem 1: The wheel shown has a radius of 20 cm, and rolls without slipping. It starts at 6 = 3 rad/s when 0 = 0 and is given an angular acceleration a = (0.50) rad/s2, where Ois in radians. When the wheel has traveled 2 revolutions, determine: a. The angular velocity of the wheel b. The velocity of point B (center of wheel) C. The velocity of point C (top of wheel) d. The angular acceleration e. The acceleration...
Q2. The rod OB in Figure Q2 is rotating anticlockwise around O with an angular velocity of 2trad/s. Collar A moves along the rod with speed t sin(2t) m/s 8Orad and r-1m when t 0 s. a) Calculate the magnitude of the velocity vector of the collar A relative to o at t 1s. 5 Marks] b) Calculate the acceleration vector of the collar A relative to O at t-1s. [6 Marks] c) Determine the Cartesian velocity vector of the...
3. At t-0, angular velocity of a wheel is 24 rad/s, and its angular acceleration is 30 rad/s. (i) How much angle does the wheel turn through after 2 seconds of rotation? (ii) At t-2 sec., the wheel suddenly begins to undergo angular deceleration (negative angular acceleration) of 8.16 rad/s'. What additional time from t -2 secs, does it take the wheel to come to a stop? Hint: Use appropriate rotational kinematic equation to answer different parts of the question....
Fly Wheel: The fly wheel has a mass M , a radius R , and a
moment of inertia I=1/2MR^2
. The fly wheel has a gear of radius Rg
< R that is used to turn the wheel.
Drive Chain: The drive chain connects the gear on the fly wheel to
a motor. The gear, the black circle in the middle, rotates with the
wheel and the chain is pulling on the gear without slipping in the...
A wheel has a radius of 0.4 m and rotates at an angular velocity of 4 rad/s. A peg at the edge of the wheel is at the heighted point at t -0. What is the period of the motion of the shadow? (A)15 (B) 1.57s(C)2.05 (D) .36(E) 3.14s
3.) Given: The rod AB is confined to move along the inclined planes at A and B. At the instant shown the rod becomes horizontal and the point A has an acceleration of 3 m/s and a velocity of 2 m/s, both directed down the plane. At the same time on the other side of the rod, the velocity of point B is 2 m/s directed up the plane. In addition, the angular velocity of the rod is AB =...
