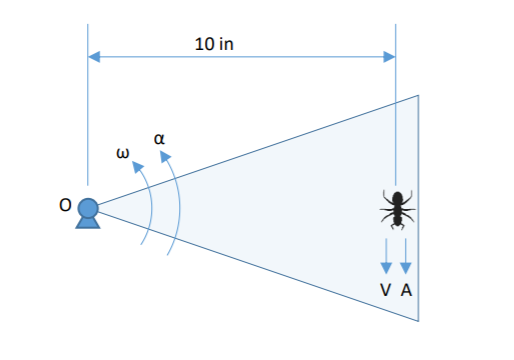

A8.11 - An ant is running along the edge of a triangular link with V = 2 in/s and A = 5 in/s2 . The link is rotating about fixed point O with ω = 2 rad/s and α = 1 rad/s2 . Draw and report the total acceleration vector of the ant with respect to the fixed ground.

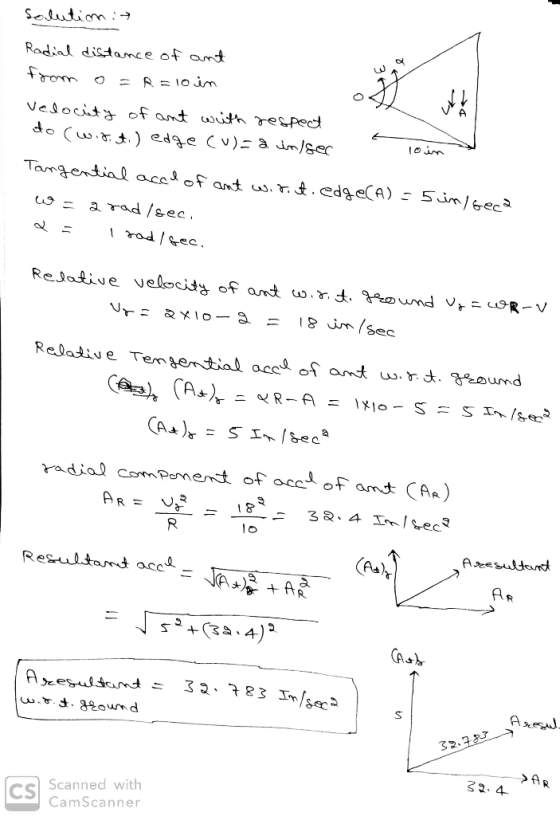

Homework Answers
Please upvote!!
Add Answer to:
A8.11 - An ant is running along the edge of a triangular link with V = 2 in/s and A = 5 in/s2 . T...
2. At the instant shown, the shaft and plate rotates with ω-14 rad/s and α- 7 rad/s2. Determine t...
2. At the instant shown, the shaft and plate rotates with ω-14 rad/s and α- 7 rad/s2. Determine the velocity and acceleration of point D located on the corner of the plate at this instant. Express the result in Cartesian vector form. 0.6 m 0.2 m 0.4m 0.3 m 0.3 m 0.4 m
2. At the instant shown, the shaft and plate rotates with ω-14 rad/s and α- 7 rad/s2. Determine the velocity and acceleration of point D located on...
1) The disk rolls without slipping with an angular velocity of o 2 rad's and an angular acceleration of -3 rad/s, Link AB is pin connected to the disk at point A which is on the periphery of t...
1) The disk rolls without slipping with an angular velocity of o 2 rad's and an angular acceleration of -3 rad/s, Link AB is pin connected to the disk at point A which is on the periphery of the disk. The length of the link is 0.5 m and the radius of the wheel is 0.25 m. Find the velocity of point B when A is 0.25m above the ground. 10 points a) VA-W /o o.25 ,775 Find the acceleration...
A disk is rotating around its center at an angular velocity of = (5+2+6) rad/s, where...
A disk is rotating around its center at an angular velocity of = (5+2+6) rad/s, where t is in seconds. Calculate the magnitude of the velocity and acceleration of point A when t = 0.5 S. Point A is on the disk as shown. 0.8 m a) va = 1.31 m/s aA = 2.21 m/s2 Ob) va = 4.22 m/s a A = 8.32 m/s2 Od VA = 6.15 m/s aa = 4.86 m/s2 O d) va = 2.60 m/s...
QUESTION 2 At the time instant shown in Figure 2, A is moving with constant speed v 1.2 m/s and link OC is rota...
QUESTION 2 At the time instant shown in Figure 2, A is moving with constant speed v 1.2 m/s and link OC is rotating clockwise with constant angular velocity-2 rad/s. Determine the angular velocity and angular acceleration of link BC at this instance. 400 mm 500 mm 300 mm U) Figre 2: A mechanism with motion controlled by controlling the motion of A and rotation of OC
QUESTION 2 At the time instant shown in Figure 2, A is moving...
A boy is running outwards at a constant speed of 2 m/s along a radial line...
A boy is running outwards at a constant speed of 2 m/s along a radial line on a merry-go-round platform. The platform is rotating at the rate of 20 revolutions per minute. What is the magnitude of the acceleration (in m/s2) acting on the boy when he is 1m away from the centre?
2. The driving link AB rotates at 00A 6 rad/s and αΑΒ-19 rad/S2 (1) Calculate the velocity at poi...
Hello I need the answer ASAP
2. The driving link AB rotates at 00A 6 rad/s and αΑΒ-19 rad/S2 (1) Calculate the velocity at point B at this instant. Taking point A as the reference (2) Calculate the acceleration at point B at this instant. Taking point A as the (3) Calculate the velocity at point C at this instant. Taking point B as the reference point. reference point point (4) Calculate the acceleration at point C at this instant....
This assignment pertains to the planar fourbar mechanism illustrated here. Link 1 is the ground l...
This assignment pertains to the planar fourbar mechanism
illustrated here. Link 1 is the ground link and includes points O2
and O4. Link 2 connects points O2 and A. Link 3 is a rigid body
with moving pivots at points A and B, and Point P is another fixed
point on Link 3. Link 4 connects points O4 and B. A 2-D Cartesian
coordinate system is fixed to ground with its origin at O2.
Can you solve all of it...
I can't seem to figure out how they getthis answer. The T-Shaped body rotates about a...
I can't seem to figure out how they getthis answer.
The T-Shaped body rotates about a horizontal axis through point
O......
Problem 2.The T-shaped body rotates about a horizontal axis through point O. At the instant represented, its angular velocity is ω = 5 rad/sec and its angular acceleration is α = 10 rad/s in the directions indicated. Determine the velocity and acceleration of point B. Express your results in terms of components along the x and y axes shown....
The two 4- lb rods EF and HI are fixed (welded) to the link AC at E . At the instant θ = 30 ∘ link AB has an angular velocity ω = 5 rad/s and an angular acceleration a = 8 rad/ s 2 as shown in (Figure...
The two 4- lb rods EF and HI are fixed (welded) to the link AC
at E . At the instant θ = 30 ∘ link AB has an angular velocity ω =
5 rad/s and an angular acceleration a = 8 rad/ s 2 as shown in
(Figure 1).
Part A
Determine the internal axial force Ex which
the bar AC exerts on FE at
E using scalar notation.
Express your answer to three significant figures and include the...
To take the time derivate of vectors that are defined in terms of fixed and moving coordinate systems. Students should be able to use the time derivative of vectors to calculate the linear and angular...
To take the time derivate of vectors that are defined in terms
of fixed and moving coordinate systems. Students should be able to
use the time derivative of vectors to calculate the linear and
angular acceleration of points on a body.
A satellite floating in space is subjected to three angular
velocities, ωA, ωZ and ωy. At the instant shown ωA is directed
along the antenna ending at Aand has a magnitude of 5.50 rad/s , ωZ
has a magnitude...
2. At the instant shown, the shaft and plate rotates with ω-14 rad/s and α- 7 rad/s2. Determine the velocity and acceleration of point D located on the corner of the plate at this instant. Express the result in Cartesian vector form. 0.6 m 0.2 m 0.4m 0.3 m 0.3 m 0.4 m
2. At the instant shown, the shaft and plate rotates with ω-14 rad/s and α- 7 rad/s2. Determine the velocity and acceleration of point D located on...
1) The disk rolls without slipping with an angular velocity of o 2 rad's and an angular acceleration of -3 rad/s, Link AB is pin connected to the disk at point A which is on the periphery of the disk. The length of the link is 0.5 m and the radius of the wheel is 0.25 m. Find the velocity of point B when A is 0.25m above the ground. 10 points a) VA-W /o o.25 ,775 Find the acceleration...
A disk is rotating around its center at an angular velocity of = (5+2+6) rad/s, where t is in seconds. Calculate the magnitude of the velocity and acceleration of point A when t = 0.5 S. Point A is on the disk as shown. 0.8 m a) va = 1.31 m/s aA = 2.21 m/s2 Ob) va = 4.22 m/s a A = 8.32 m/s2 Od VA = 6.15 m/s aa = 4.86 m/s2 O d) va = 2.60 m/s...
QUESTION 2 At the time instant shown in Figure 2, A is moving with constant speed v 1.2 m/s and link OC is rotating clockwise with constant angular velocity-2 rad/s. Determine the angular velocity and angular acceleration of link BC at this instance. 400 mm 500 mm 300 mm U) Figre 2: A mechanism with motion controlled by controlling the motion of A and rotation of OC
QUESTION 2 At the time instant shown in Figure 2, A is moving...
Hello I need the answer ASAP
2. The driving link AB rotates at 00A 6 rad/s and αΑΒ-19 rad/S2 (1) Calculate the velocity at point B at this instant. Taking point A as the reference (2) Calculate the acceleration at point B at this instant. Taking point A as the (3) Calculate the velocity at point C at this instant. Taking point B as the reference point. reference point point (4) Calculate the acceleration at point C at this instant....
This assignment pertains to the planar fourbar mechanism
illustrated here. Link 1 is the ground link and includes points O2
and O4. Link 2 connects points O2 and A. Link 3 is a rigid body
with moving pivots at points A and B, and Point P is another fixed
point on Link 3. Link 4 connects points O4 and B. A 2-D Cartesian
coordinate system is fixed to ground with its origin at O2.
Can you solve all of it...
I can't seem to figure out how they getthis answer.
The T-Shaped body rotates about a horizontal axis through point
O......
Problem 2.The T-shaped body rotates about a horizontal axis through point O. At the instant represented, its angular velocity is ω = 5 rad/sec and its angular acceleration is α = 10 rad/s in the directions indicated. Determine the velocity and acceleration of point B. Express your results in terms of components along the x and y axes shown....
The two 4- lb rods EF and HI are fixed (welded) to the link AC
at E . At the instant θ = 30 ∘ link AB has an angular velocity ω =
5 rad/s and an angular acceleration a = 8 rad/ s 2 as shown in
(Figure 1).
Part A
Determine the internal axial force Ex which
the bar AC exerts on FE at
E using scalar notation.
Express your answer to three significant figures and include the...
To take the time derivate of vectors that are defined in terms
of fixed and moving coordinate systems. Students should be able to
use the time derivative of vectors to calculate the linear and
angular acceleration of points on a body.
A satellite floating in space is subjected to three angular
velocities, ωA, ωZ and ωy. At the instant shown ωA is directed
along the antenna ending at Aand has a magnitude of 5.50 rad/s , ωZ
has a magnitude...
