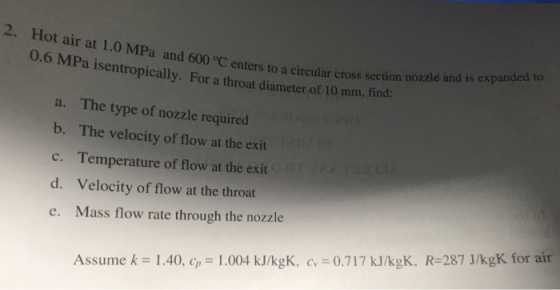

2. Hot air at 1.0 MPa and o0o "C enters to a circular cross section nozzle and is expanded to to ...
Hot air at 1.0 MPa and 600 °C enters to a circular cross section nozzle and is expanded to 0.6 MP...

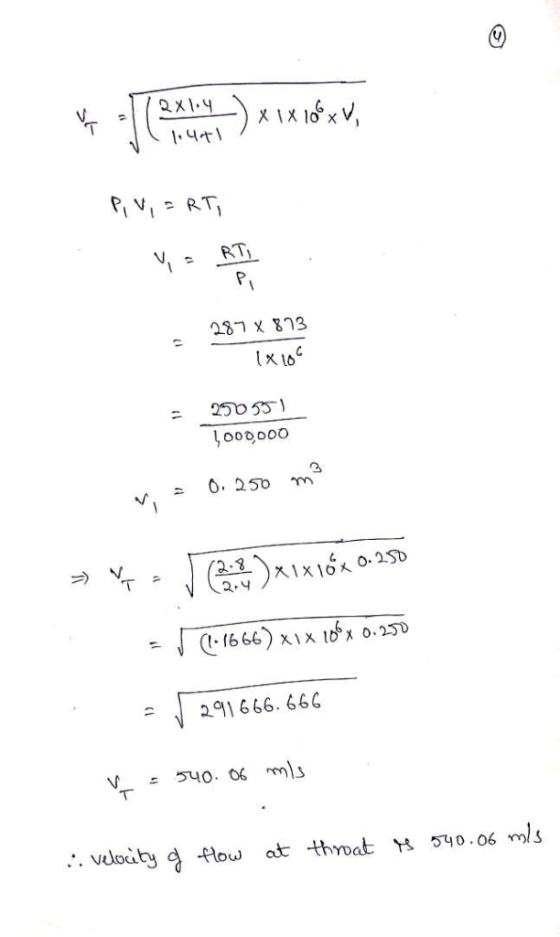

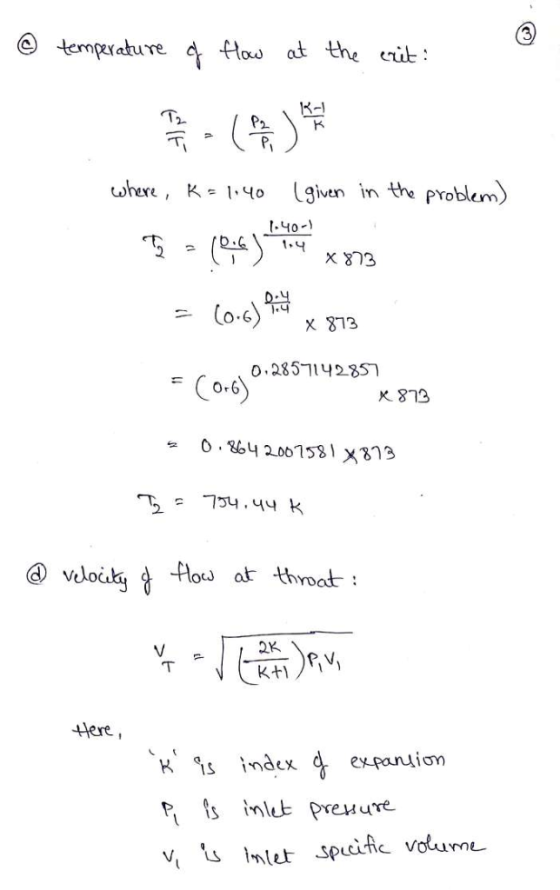

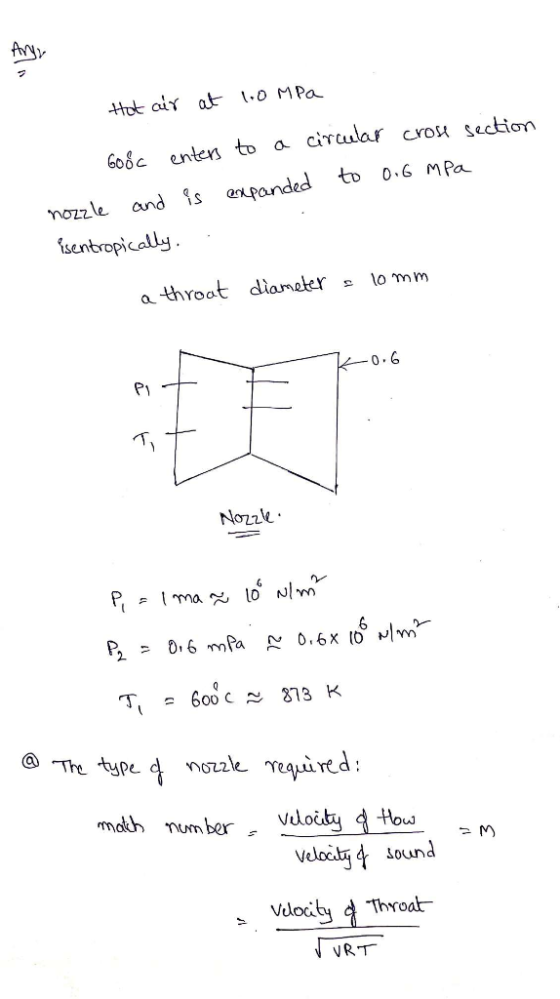

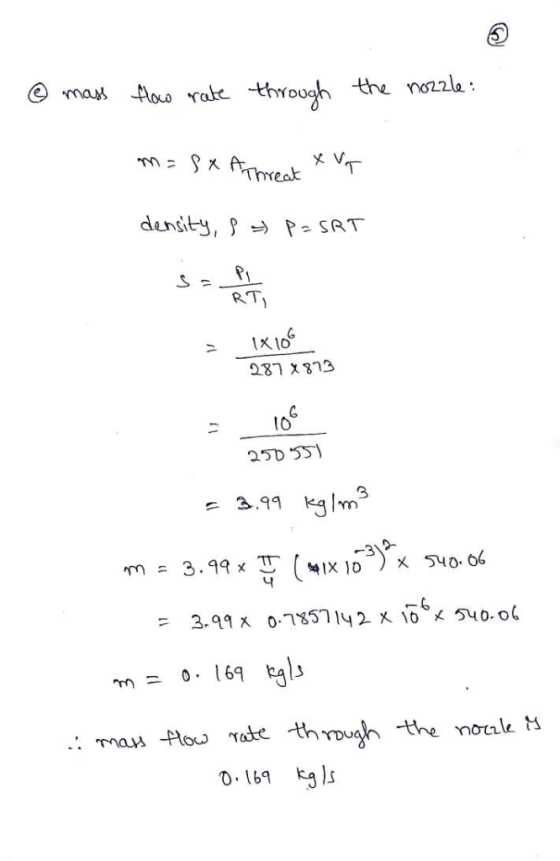

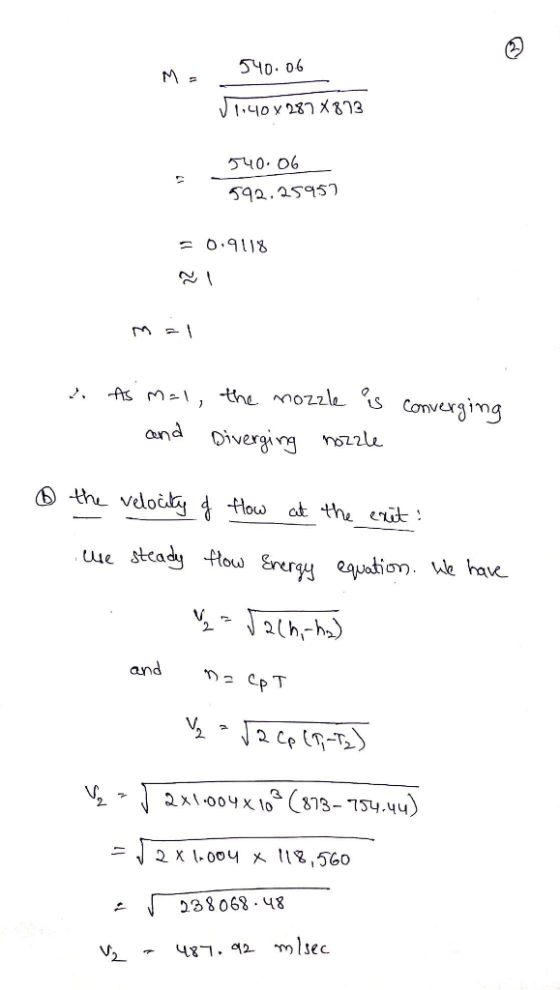

Hot air at 1.0 MPa and 600 °C enters to a circular cross section nozzle and is expanded to 0.6 MPa isentropically. For a throat diameter of 10 mm, find: a. The type of nozzle required b. The velocity of flow at the exit c. Temperature of flow at the exit d. Velocity of flow at the throat e. Mass flow rate through the nozzle Assume k 1.40, cp 1.004 kJ/kgK, cv 0.717 kJ/kgK, R-287 J/kgK for air
Hot air...
Hot air at 1.0 MPa and 600 °C enters to a circular cross section nozzle and...
Hot air at 1.0 MPa and 600 °C enters to a circular cross section nozzle and is expanded to 0.6 MPa isentropically. For a throat diameter of 10 mm, find: a. The type of nozzle required b. The velocity of flow at the exit c. Temperature of flow at the exit d. Velocity of flow at the throat e. Mass flow rate through the nozzle Assume k 1.40, cp 1.004 kJ/kgK, cv 0.717 kJ/kgK, R-287 J/kgK for air
3. Diesel engine exhaust gases at 0.3 MPa pressure and 800 K pass through a nozzle, where the nozzle coefficient (G) is 0.98, and expand to a pressure of 0.12 MPa. The hot gases enter to a simple...
3. Diesel engine exhaust gases at 0.3 MPa pressure and 800 K pass through a nozzle, where the nozzle coefficient (G) is 0.98, and expand to a pressure of 0.12 MPa. The hot gases enter to a simple impulse turbine of the turbocharger unit with diameter 0.4 m, nozzle angle 12° and blade coefficient (o) of 0.99. Find: a. Ideal rate of rotation of turbine, in rpm b. The velocity of air leaving the turbine, assuming a symmetric bl c....
3. Diesel engine exhaust gases at 0.3 MPa pressure and 800 K pass through a nozzle, where the nozzle (Cn) is 0.98, and expand to a pressure of 0.12 MPa. The hot gases enter to a simple impulse tu...
3. Diesel engine exhaust gases at 0.3 MPa pressure and 800 K pass through a nozzle, where the nozzle (Cn) is 0.98, and expand to a pressure of 0.12 MPa. The hot gases enter to a simple impulse tu turbocharger unit with diameter 0.4 m, nozzle angle 120 and blade coefficient (cs) of 0.99. Find a. Ideal rate of rotation of turbine, in rpm b. The velocity of air leaving the turbine, assuming a symmetric blade c. Diagram efficiency d....
3. Diesel engine exhaust gases at 0.3 MPa pressure and 800 K pass through a nozzle, where the nozzle coefficient (c ) is 0.98, and expand to a pressure of 0.12 MPa. The hot gases enter to a simpl...
3. Diesel engine exhaust gases at 0.3 MPa pressure and 800 K pass through a nozzle, where the nozzle coefficient (c ) is 0.98, and expand to a pressure of 0.12 MPa. The hot gases enter to a simple impulse turbine of the turbocharger unit with diameter 0.4 m, nozzle angle 12° and blade coefficient (o) of 0.99. Find: a. Ideal rate of rotation of turbine, in rpm b. The velocity of air leaving the turbine, assuming a symmetric blade...
Air enters an adiabatic nozzle at 500 kPa and a temperature of 200 °C with a...
Air enters an adiabatic nozzle at 500 kPa and a temperature of 200 °C with a velocity of 100 m/s. It exits the nozzle at a pressure of 100 kPa. Assuming that the expansion through the nozzle occurs reversibly, determine (a) the exit temperature and (b) the exit velocity of the air. The specific heats of air can be assumed to be constant with Cv = 0.742 kJ/kg oC and Cp = 1.029 kJ/kg oC.
5-30 Air enters an adiabatic nozzle steadily at 300 kPa, 200°C, and 30 m/s and leaves...
5-30 Air enters an adiabatic nozzle steadily at 300 kPa, 200°C, and 30 m/s and leaves at 100 kPa and 180 m/s. The inlet area of the nozzle is 80 cm². Determine (a) the mass flow rate through the nozzle, (b) the exit temperature of the air, and (c) the exit area of the nozzle. Answers: (a) 0.5304 kg/s, (b) 184.6°C, (c) 38.7 cm P = 300 kPa T, = 200°C Vi = 30 m/s A = 80 cm AIR...
Question 2 (30 marks) (a) A fluid flowing into a nozzle with specific enthalpy of 2980...
Question 2 (30 marks) (a) A fluid flowing into a nozzle with specific enthalpy of 2980 kJ/kg and the velocity is 80 m/s. At the exit of the nozzle, the specific enthalpy of the fluid drops to 2670 kJ/kg. The nozzle orientation is horizontal and the heat loss is negligible. Given that the nozzle inlet area is 0.25 m2 and the specific volume of the fluid is 0.2 m2/kg, calculate the velocity of the fluid at exit, the mass flow...
Question 3 (40 marks) (a) Air enters a horizontal nozzle with a velocity of 1 m/s,...
Question 3 (40 marks) (a) Air enters a horizontal nozzle with a velocity of 1 m/s, a pressure of 2 bar and a temperature of 350 K. At exit from nozzle, the air temperature is 450 K. The combined rate of specific heat transfers, and specific work transfers, w to the air as it passes through the nozzle is 150 kJ/kg. Assume that the air flow is steady and air can be treated as perfect gas with = 1005 J/(kg.K)....
1. Water enters the constant 130-mm inside-diameter tubes of a boiler at 7 MPa and 65°C...
1. Water enters the constant 130-mm inside-diameter tubes of a boiler at 7 MPa and 65°C and leaves the tubes at 6 MPa and 450°C with a velocity of 80 m/s. Calculate the velocity of the water at the tube inlet and the inlet volume flow rate. [5-14] 2. Air enters a nozzle steadily at 50 psia, 140°F, and 150 ft/s and leaves at 14.7 psia and 900 ft/s. The heat loss from the nozzle is estimated to be 6.5...
Hot air at 1.0 MPa and 600 °C enters to a circular cross section nozzle and is expanded to 0.6 MPa isentropically. For a throat diameter of 10 mm, find: a. The type of nozzle required b. The velocity of flow at the exit c. Temperature of flow at the exit d. Velocity of flow at the throat e. Mass flow rate through the nozzle Assume k 1.40, cp 1.004 kJ/kgK, cv 0.717 kJ/kgK, R-287 J/kgK for air
Hot air...
Hot air at 1.0 MPa and 600 °C enters to a circular cross section nozzle and is expanded to 0.6 MPa isentropically. For a throat diameter of 10 mm, find: a. The type of nozzle required b. The velocity of flow at the exit c. Temperature of flow at the exit d. Velocity of flow at the throat e. Mass flow rate through the nozzle Assume k 1.40, cp 1.004 kJ/kgK, cv 0.717 kJ/kgK, R-287 J/kgK for air
3. Diesel engine exhaust gases at 0.3 MPa pressure and 800 K pass through a nozzle, where the nozzle coefficient (G) is 0.98, and expand to a pressure of 0.12 MPa. The hot gases enter to a simple impulse turbine of the turbocharger unit with diameter 0.4 m, nozzle angle 12° and blade coefficient (o) of 0.99. Find: a. Ideal rate of rotation of turbine, in rpm b. The velocity of air leaving the turbine, assuming a symmetric bl c....
3. Diesel engine exhaust gases at 0.3 MPa pressure and 800 K pass through a nozzle, where the nozzle (Cn) is 0.98, and expand to a pressure of 0.12 MPa. The hot gases enter to a simple impulse tu turbocharger unit with diameter 0.4 m, nozzle angle 120 and blade coefficient (cs) of 0.99. Find a. Ideal rate of rotation of turbine, in rpm b. The velocity of air leaving the turbine, assuming a symmetric blade c. Diagram efficiency d....
3. Diesel engine exhaust gases at 0.3 MPa pressure and 800 K pass through a nozzle, where the nozzle coefficient (c ) is 0.98, and expand to a pressure of 0.12 MPa. The hot gases enter to a simple impulse turbine of the turbocharger unit with diameter 0.4 m, nozzle angle 12° and blade coefficient (o) of 0.99. Find: a. Ideal rate of rotation of turbine, in rpm b. The velocity of air leaving the turbine, assuming a symmetric blade...
5-30 Air enters an adiabatic nozzle steadily at 300 kPa, 200°C, and 30 m/s and leaves at 100 kPa and 180 m/s. The inlet area of the nozzle is 80 cm². Determine (a) the mass flow rate through the nozzle, (b) the exit temperature of the air, and (c) the exit area of the nozzle. Answers: (a) 0.5304 kg/s, (b) 184.6°C, (c) 38.7 cm P = 300 kPa T, = 200°C Vi = 30 m/s A = 80 cm AIR...
Question 2 (30 marks) (a) A fluid flowing into a nozzle with specific enthalpy of 2980 kJ/kg and the velocity is 80 m/s. At the exit of the nozzle, the specific enthalpy of the fluid drops to 2670 kJ/kg. The nozzle orientation is horizontal and the heat loss is negligible. Given that the nozzle inlet area is 0.25 m2 and the specific volume of the fluid is 0.2 m2/kg, calculate the velocity of the fluid at exit, the mass flow...
Question 3 (40 marks) (a) Air enters a horizontal nozzle with a velocity of 1 m/s, a pressure of 2 bar and a temperature of 350 K. At exit from nozzle, the air temperature is 450 K. The combined rate of specific heat transfers, and specific work transfers, w to the air as it passes through the nozzle is 150 kJ/kg. Assume that the air flow is steady and air can be treated as perfect gas with = 1005 J/(kg.K)....
1. Water enters the constant 130-mm inside-diameter tubes of a boiler at 7 MPa and 65°C and leaves the tubes at 6 MPa and 450°C with a velocity of 80 m/s. Calculate the velocity of the water at the tube inlet and the inlet volume flow rate. [5-14] 2. Air enters a nozzle steadily at 50 psia, 140°F, and 150 ft/s and leaves at 14.7 psia and 900 ft/s. The heat loss from the nozzle is estimated to be 6.5...
