Question

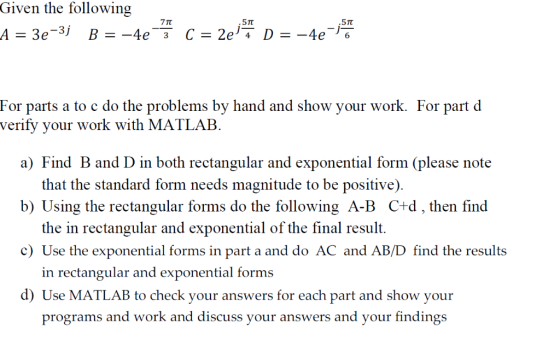

Given the following A 3e-31 B For parts a to c do the problems by hand and show vour work. For part d verify your work with MATLAB a) Find B and D in both rectangular and exponential form (please note b) Using the rectangular forms do the following A-B C+d, then find c) Use the exponential forms in part a and do AC and AB/D find the results d) Use MATLAB to check your answers for each part and show your that the standard form needs magnitude to be positive) the in rectangular and exponential of the final result. in rectangular and exponential forms programs and work and discuss your answers and your findings

Answer 1

`Hey,

Note: Brother in case of any queries, just comment in box I would be very happy to assist all your queries

clear
clc
A=3*exp(-3*j);
B=-4*exp(-7*pi/3);
C=2*exp(j*5*pi/4);
D=-4*exp(-j*5*pi/6);
disp('A in rectangular');
disp(A)
disp('B in rectangular');
disp(B)
disp('C in rectangular');
disp(C)
disp('D in rectangular');
disp(D)
disp('A in expo is');
fprintf('%f*exp(%f*j)\n',abs(A),angle(A));
disp('B in expo is');
fprintf('%f*exp(%f*j)\n',abs(B),angle(B));
disp('C in expo is');
fprintf('%f*exp(%f*j)\n',abs(C),angle(C));
disp('D in expo is');
fprintf('%f*exp(%f*j)\n',abs(D),angle(D));

Note: Brother according to HOMEWORKLIB RULES we are only allowed to answer 1 part if there are many. So, I request you to post other part as separate posts.

Kindly revert for any queries

Thanks.
