Let x-y-z be the principal axes. When rotating around y axis, what is the maximum shear stress en...

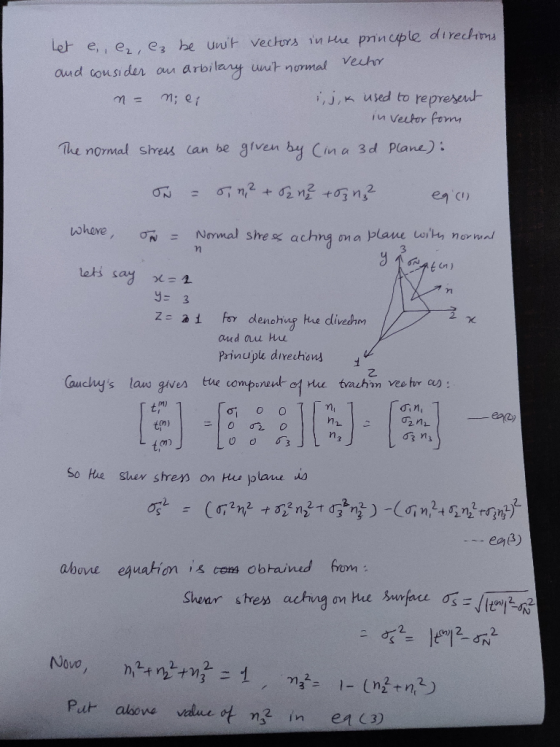

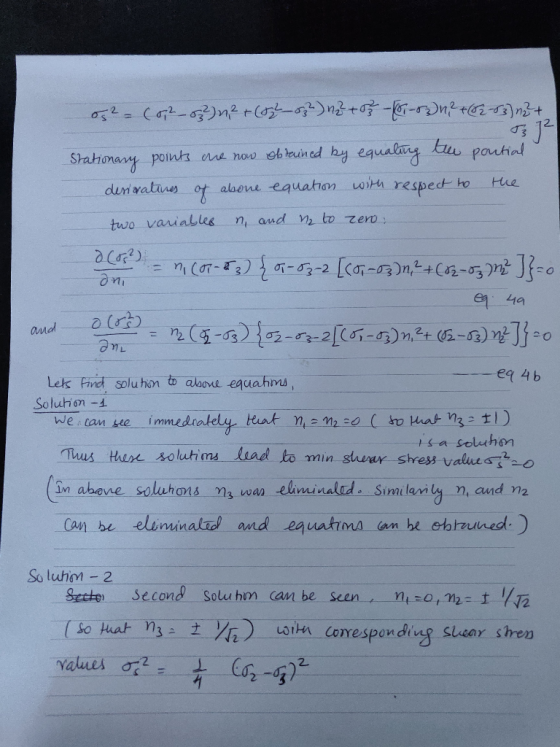

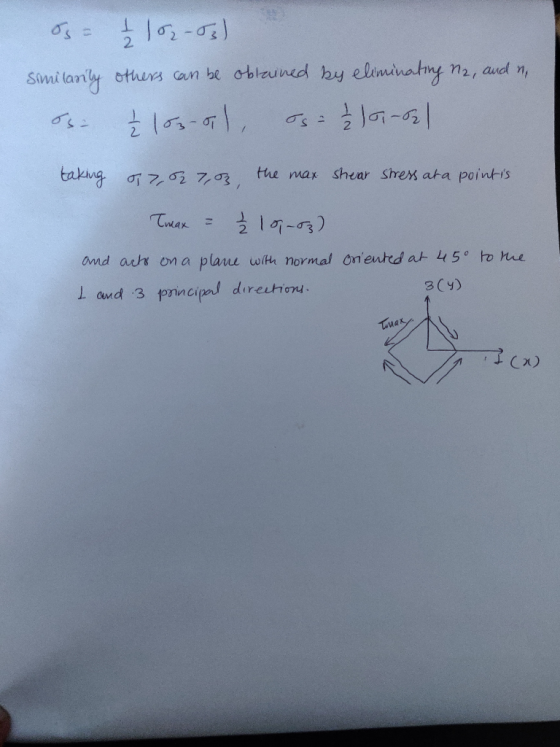

Let x-y-z be the principal axes. When rotating around y axis, what is the maximum shear stress encountered, and what is the corresponding rotation angle? Show the derivation.
Homework Answers
Add Answer to:
Let x-y-z be the principal axes. When rotating around y axis, what is the maximum shear stress en...
