Homework Answers
Add Answer to:

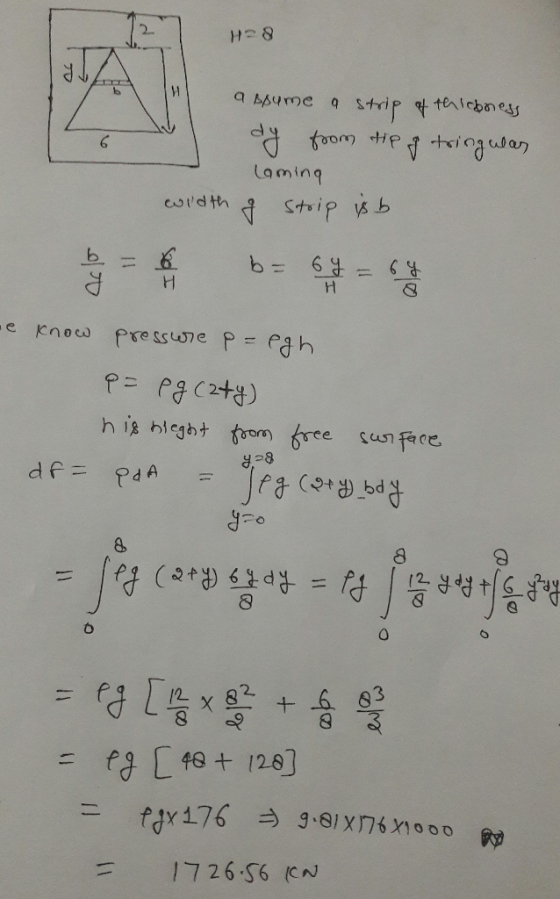

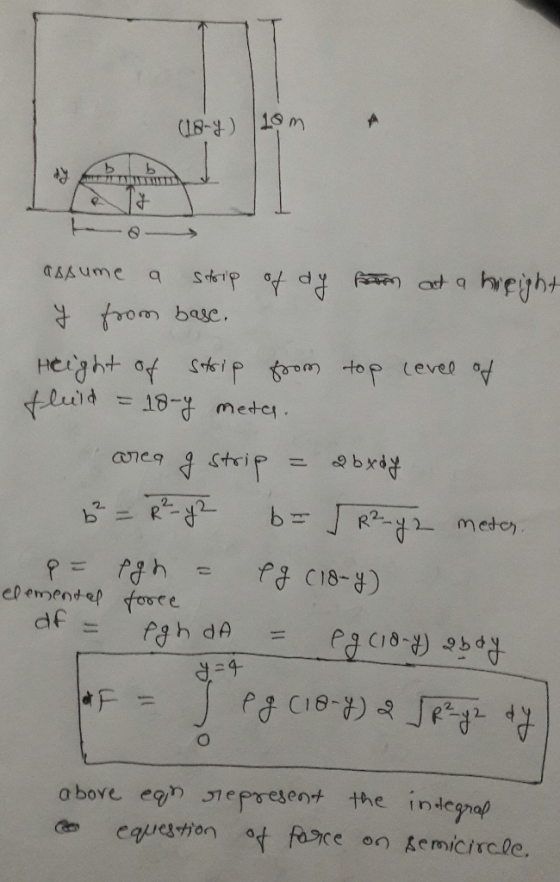

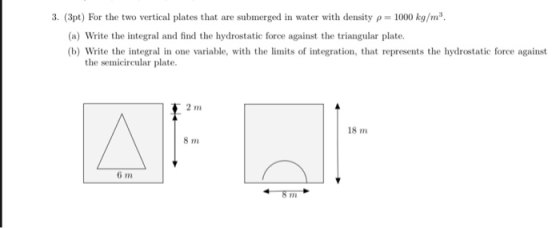

3. (3pt) For the two vertical plates that are submerged in water with density p 1000 kg/m3. (a) W...
6. A vertical plate is submerged in water as shown, with the top of the plate...
6. A vertical plate is submerged in water as shown, with the top of the plate (the top vertex of the triangle) THREE METERS BELOW the surface of the water. Express the force against one side as an integral and evaluate it. (p = 1000 kg g = 9.8 M/52) m3 4m 12m
A circular plate with radius 8 m is submerged vertically in water as shown. Express the...
A circular plate with radius 8 m is submerged vertically in water as shown. Express the hydrostatic force against one side of the plate as an integral and evaluate it. (Round your answer to the nearest whole number. Use 9.8 m/s2 for the acceleration due to gravity. Recall that the weight density of water is 1000 kg/m3.) (ρg 8 −8 =?) (dy ≈ ?N). BTW the distance of the submerged circular plate from its top is 4m to the surface...
Ask Your Teacher 3 -2 points SCalcETB 8.3005. My Notes A circular plate with radius 7...
Ask Your Teacher 3 -2 points SCalcETB 8.3005. My Notes A circular plate with radius 7 m is submerged vertically in water as shown. Express the hydrostatic force against one side of the plate as an integral and evaluate it. (Round your answer to the nearest whole number. Use 9.8 m/s2 for the acceleration due to gravity. Recall that the weight density of water is 1000 kg/m3.) N 3 m Need Help? Read It Talk to a Tuter Ask Your...
8. A plate whose shape is half disk of radius 8 meters is vertically submerged in...
8. A plate whose shape is half disk of radius 8 meters is vertically submerged in water. The top of the plate is 2 m below the water level. (The dashed line segment indicates the water level.) Use p = 1000 kg/m3 and g = 9.8 m/s2. (a) Set up an appropriate coordinate system, draw the strip on the plate and determine its area Ak. 2 m (b) Determine the pressure Pk and force Fx experienced by the strip. (c)...
8. A plate whose shape is half disk of radius 8 meters is vertically submerged in...
8. A plate whose shape is half disk of radius 8 meters is vertically submerged in water. The top of the plate is 2 m below the water level. (The dashed line segment indicates the water level.) Use p= 1000 kg/m² and g = 9.8 m/s2. (a) Set up an appropriate coordinate system, draw the strip on the plate and determine its area Ar. m (b) Determine the pressure P and force F experienced by the strip. (c) Set up...
Find hydrostatic Force
A semicircular plate with radius 7 m is submerged vertically in water so that the top is 2 m above the surface. Express the hydrostatic force against one side of theplate as an integral and evaluate it. Use 9.8 m/s2 for the acceleration due to gravity. The weight density of water is 1000 kg/m3.
A trapezoidal plate with heighth and bases a and 2a is submerged vertically in water as...
A trapezoidal plate with heighth and bases a and 2a is submerged vertically in water as shown. Express the hydrostatic force against one side of the plate as an integral and evaluate it. (Use delta for 8, the weight density constant.) 2adh? 2x dx = h 3 X X ) dx
A 10cmx10cmx10cm cube of density 650 kg/m3 and is submerged in a container filled with water...
A 10cmx10cmx10cm cube of density 650 kg/m3 and is submerged in a container filled with water of density 1000 kg/m3. It is initially held at rest by a string which is attached to the bottom of the container, as shown in the figure. When we cut the string, the cube starts moving upwards. Find the initial acceleration of the cube, immediately after it is released. Answer in units of m/s2.
Need Help? Read It Watch It Talk to a Tutor 5. [2/3 Points] DETAILS PREVIOUS ANSWERS...
Need Help? Read It Watch It Talk to a Tutor 5. [2/3 Points] DETAILS PREVIOUS ANSWERS SCALCET8 8.3.504.XP.MI. MY NOTES PRACTICE ANOTHER A triangular plate with base 2 m and height 3 m is submerged vertically in water so that the tip is even with the surface. Express the hydrostatic force against one side of the plate as an integral and evaluate it. (Round your answer to the nearest whole number. Use 9.8 m/s2 for the acceleration due to gravity....
Please show work and write clearly. Thank you. A semicircular plate with radius 6 m is...
Please show work and write clearly. Thank you.
A semicircular plate with radius 6 m is submerged vertically in water so that the top is 1 m above the surface. Express the hydrostatic force against one side of the plate as an integral and evaluate it. (Round your answer to the nearest whole number. Use 9.8 m/s2 for the acceleration due to gravity. Recall that the weight density of water is 1000 kg/m.) 2pg of N
6. A vertical plate is submerged in water as shown, with the top of the plate (the top vertex of the triangle) THREE METERS BELOW the surface of the water. Express the force against one side as an integral and evaluate it. (p = 1000 kg g = 9.8 M/52) m3 4m 12m
Ask Your Teacher 3 -2 points SCalcETB 8.3005. My Notes A circular plate with radius 7 m is submerged vertically in water as shown. Express the hydrostatic force against one side of the plate as an integral and evaluate it. (Round your answer to the nearest whole number. Use 9.8 m/s2 for the acceleration due to gravity. Recall that the weight density of water is 1000 kg/m3.) N 3 m Need Help? Read It Talk to a Tuter Ask Your...
8. A plate whose shape is half disk of radius 8 meters is vertically submerged in water. The top of the plate is 2 m below the water level. (The dashed line segment indicates the water level.) Use p = 1000 kg/m3 and g = 9.8 m/s2. (a) Set up an appropriate coordinate system, draw the strip on the plate and determine its area Ak. 2 m (b) Determine the pressure Pk and force Fx experienced by the strip. (c)...
8. A plate whose shape is half disk of radius 8 meters is vertically submerged in water. The top of the plate is 2 m below the water level. (The dashed line segment indicates the water level.) Use p= 1000 kg/m² and g = 9.8 m/s2. (a) Set up an appropriate coordinate system, draw the strip on the plate and determine its area Ar. m (b) Determine the pressure P and force F experienced by the strip. (c) Set up...
A trapezoidal plate with heighth and bases a and 2a is submerged vertically in water as shown. Express the hydrostatic force against one side of the plate as an integral and evaluate it. (Use delta for 8, the weight density constant.) 2adh? 2x dx = h 3 X X ) dx
A 10cmx10cmx10cm cube of density 650 kg/m3 and is submerged in a container filled with water of density 1000 kg/m3. It is initially held at rest by a string which is attached to the bottom of the container, as shown in the figure. When we cut the string, the cube starts moving upwards. Find the initial acceleration of the cube, immediately after it is released. Answer in units of m/s2.
Need Help? Read It Watch It Talk to a Tutor 5. [2/3 Points] DETAILS PREVIOUS ANSWERS SCALCET8 8.3.504.XP.MI. MY NOTES PRACTICE ANOTHER A triangular plate with base 2 m and height 3 m is submerged vertically in water so that the tip is even with the surface. Express the hydrostatic force against one side of the plate as an integral and evaluate it. (Round your answer to the nearest whole number. Use 9.8 m/s2 for the acceleration due to gravity....
Please show work and write clearly. Thank you.
A semicircular plate with radius 6 m is submerged vertically in water so that the top is 1 m above the surface. Express the hydrostatic force against one side of the plate as an integral and evaluate it. (Round your answer to the nearest whole number. Use 9.8 m/s2 for the acceleration due to gravity. Recall that the weight density of water is 1000 kg/m.) 2pg of N
