16.6a) A simply supported beam is to span 15 ft. It will support a uniformly distributed load of ...

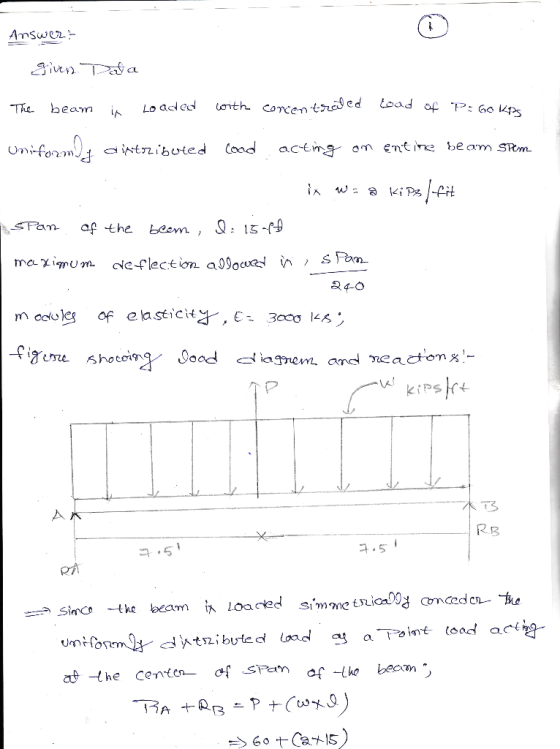

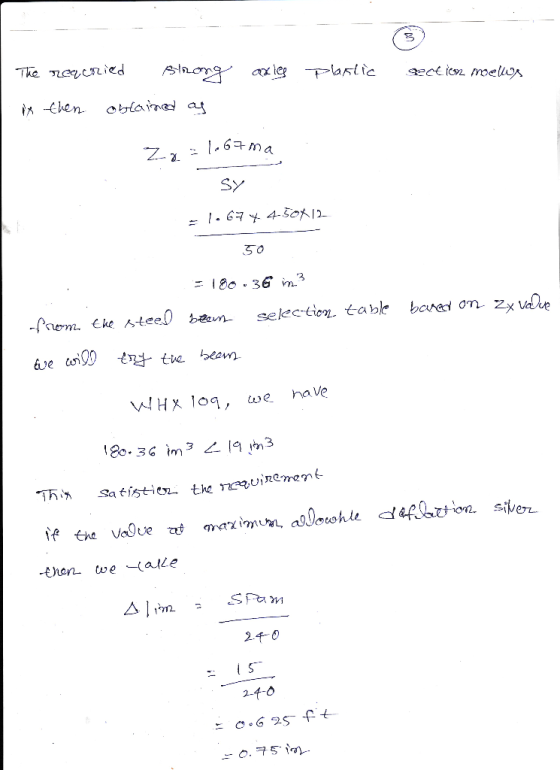

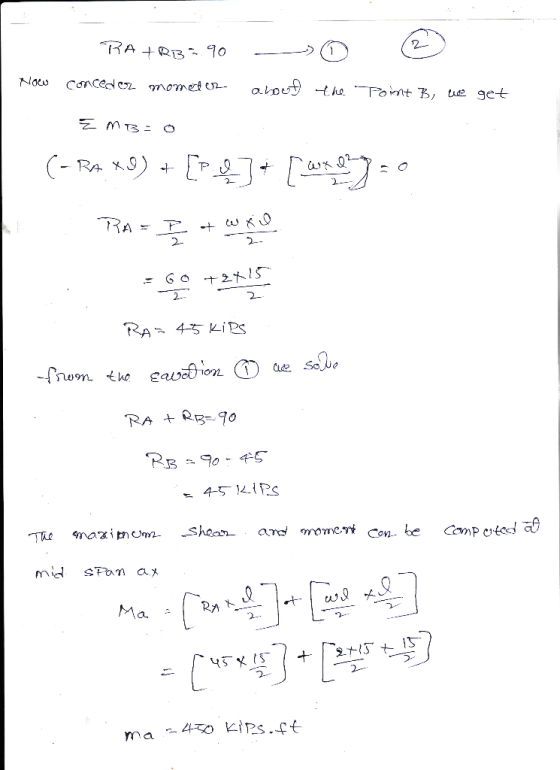

16.6a) A simply supported beam is to span 15 ft. It will support a uniformly distributed load of 2 kips/ft over the full span and a concentrated load of 60 kips at mid-span. What is the required plastic section modulus Zx? (Include self-weight)

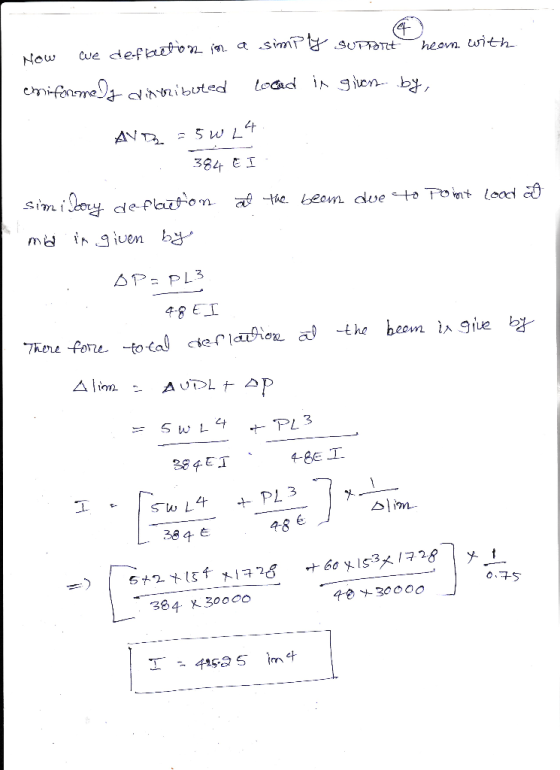

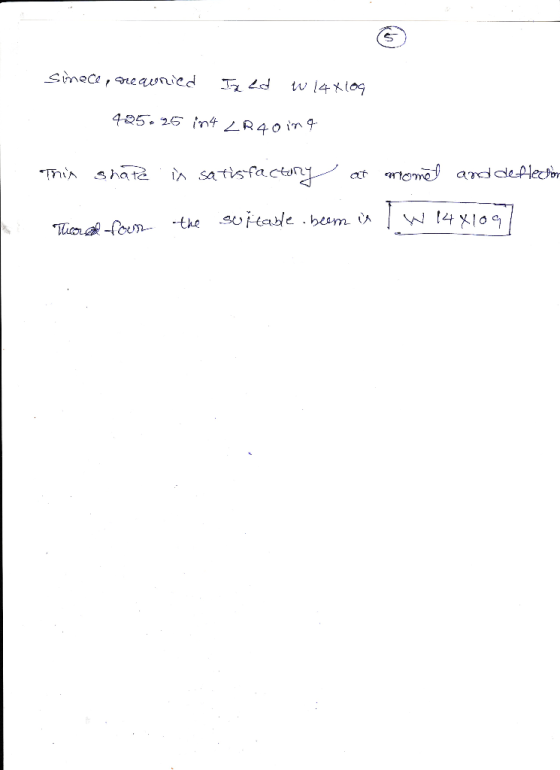

16.6b) A simply supported beam is to span 15 ft. It will support a uniformly distributed load of 2 kips/ft over the full span and a concentrated load of 60 kips at mid-span. Deflection is not to exceed span/240. What is the required moment of inertia Ix? (Include self-weight.)
16.6c) A simply supported beam is to span 15 ft. It will support a uniformly distributed load of 2 kips/ft over the full span and a concentrated load of 60 kips at mid-span. What is the required web area (dtw) for shear resistance?
Homework Answers
Add Answer to:
16.6a) A simply supported beam is to span 15 ft. It will support a uniformly distributed load of ...
An A992 beam, simply supported at both ends, spans 20 ft and is loaded at mid-span...
An A992 beam, simply supported at both ends, spans 20 ft and is loaded at mid-span with a dead load of 8.o kips and live load of 24.0 kips, in addition to its self-weight. Assume full lateral support and a compact section. Select the lightest weight wide-flange members with respect to bending capacity. Does the member selected in part (a), satisfy the live load deflection criteria of L/360.? Does the member selected in part (a), satisfy the live load deflection...
Problem 2: the most economical (lightest) W shape to support a uniformly distributed load of 4k/ft...
Problem 2: the most economical (lightest) W shape to support a uniformly distributed load of 4k/ft (This load includes the weight of the beam) on a simply supported span of 25 ft as shown. Assume the yield stress of the steel to be 50 ksi. The deflection limit (Allowable) is Select 360 w 4 kips/ft 25'-0" R 50 kips RB 50 kips
A 26.0 ft. simply supported beam is subjected to factored uniformly distributed load of wa equal ...
A 26.0 ft. simply supported beam is subjected to factored uniformly distributed load of wa equal to 6.0 kips/t. Beam properties are as follows: b-14 in, d-24 in, 4,000 psi (normal-weight concrete) and fy -60,000 psi. Design shear reinforcement for the entire beam (you can use symmetry if applicable). Use two different spacings over the beam length to come up with economical design. Perform all necessary checks and calculations. Draw final design for shear ma reinforcement indicating distribution (i.e, lengths,...
2. A 30 ft long simply supported beam supports a uniformly distributed load of 2 kips/ft...
2. A 30 ft long simply supported beam supports a uniformly distributed load of 2 kips/ft over the entire span. The beam and cross section are shown below. Draw the shear and moment diagrams, find the neutral axis location, moment of inertia of the composite section, the maximum bending stress on the cross section. (40 points) 10" 2 k/ft 1-3" 30'-0"
14.54 A simply supported rectangular beam with a span of 6 ft has a concentrated load of 4.1 kip ...
14.54 A simply supported rectangular beam with a span of 6 ft has a concentrated load of 4.1 kip at midspan. Se- lect the lightest rectangular wood beam that can safely support the loads (neglect the weight of the beam). The allowable stress in bending is 1200 psi and in shear parallel to the grain 100 psi
14.54 A simply supported rectangular beam with a span of 6 ft has a concentrated load of 4.1 kip at midspan. Se- lect...
A steel I-beam with a span of 20 feet will support both a concentrated load of...
A steel I-beam with a span of 20 feet will support both a concentrated load of 15 kips at the beam center and a uniformly distributed load of 2 kips/ft along the entire beam length. The steel beam is Grade 50 (Fy= 50,000 psi). i) Calculate for the lightest W-shape section that will safely carry the load, with the depth not to exceed 17 inches. Provide sketches. ii) The analysis is to include (a) bending strength, (b) shear strength, and...
3. Given a. W27X84 A992 Steel beam is simply supported over a 25' FT beam length. b. The compress...
Steel Design
3. Given a. W27X84 A992 Steel beam is simply supported over a 25' FT beam length. b. The compression flange of the beam is fully braced along the beam length. c. A uniformly distributed service dead load of 2.5 KLF. d. A uniformly distributed service live load of 3.5 KLF. e. A live load deflection limit of L/360. A dead live load deflection limit of L/240. f. Neglect the self-weight of the beam in all calculations. Determine: The...
a simply supported beam shown has a span length of 16 ft. the beam is laoded...
a simply supported beam shown has a span length of 16 ft. the
beam is laoded with to concentrated service live loads of 40 kips
and 80 kips as shown. if lateral support is provided only at both
ends, select the lightest w section of A992 steel that can carry
these applied loads. neglect the weight of the beam.
***Need this answered ASAP please***
***Please show ALL steps***
steel design - please show what tables the values come from.
thank...
The simply supported beam of length L is subjected to uniformly distributed load of w and...
The simply supported beam of length L is subjected to uniformly distributed load of w and a vertical point load P at its middle, as shown in Figure Q3. Both young's modulus and second moment of area of this structure are given as E and I. Please provide your answers in terms of letters w, P,L,1, E. Self-weight of the beam is neglected. P W L/2 L/2 Figure Q3 (a) Determine the reactions, bending moment equation along the beam and...
A simply supported wood beam with a span of L = 16 ft supports a uniformly...
A simply supported wood beam with a span of L = 16 ft
supports a uniformly distributed load of w0 =
305 lb/ft. The allowable bending stress of the wood is 1.30 ksi. If
the aspect ratio of the solid rectangular wood beam is specified as
h/b = 1.75, calculate the minimum width
b that can be used for the beam.
A simply supported wood beam with a span of L = 16 ft supports a uniformly distributed load of...
An A992 beam, simply supported at both ends, spans 20 ft and is loaded at mid-span with a dead load of 8.o kips and live load of 24.0 kips, in addition to its self-weight. Assume full lateral support and a compact section. Select the lightest weight wide-flange members with respect to bending capacity. Does the member selected in part (a), satisfy the live load deflection criteria of L/360.? Does the member selected in part (a), satisfy the live load deflection...
Problem 2: the most economical (lightest) W shape to support a uniformly distributed load of 4k/ft (This load includes the weight of the beam) on a simply supported span of 25 ft as shown. Assume the yield stress of the steel to be 50 ksi. The deflection limit (Allowable) is Select 360 w 4 kips/ft 25'-0" R 50 kips RB 50 kips
A 26.0 ft. simply supported beam is subjected to factored uniformly distributed load of wa equal to 6.0 kips/t. Beam properties are as follows: b-14 in, d-24 in, 4,000 psi (normal-weight concrete) and fy -60,000 psi. Design shear reinforcement for the entire beam (you can use symmetry if applicable). Use two different spacings over the beam length to come up with economical design. Perform all necessary checks and calculations. Draw final design for shear ma reinforcement indicating distribution (i.e, lengths,...
2. A 30 ft long simply supported beam supports a uniformly distributed load of 2 kips/ft over the entire span. The beam and cross section are shown below. Draw the shear and moment diagrams, find the neutral axis location, moment of inertia of the composite section, the maximum bending stress on the cross section. (40 points) 10" 2 k/ft 1-3" 30'-0"
14.54 A simply supported rectangular beam with a span of 6 ft has a concentrated load of 4.1 kip at midspan. Se- lect the lightest rectangular wood beam that can safely support the loads (neglect the weight of the beam). The allowable stress in bending is 1200 psi and in shear parallel to the grain 100 psi
14.54 A simply supported rectangular beam with a span of 6 ft has a concentrated load of 4.1 kip at midspan. Se- lect...
A steel I-beam with a span of 20 feet will support both a concentrated load of 15 kips at the beam center and a uniformly distributed load of 2 kips/ft along the entire beam length. The steel beam is Grade 50 (Fy= 50,000 psi). i) Calculate for the lightest W-shape section that will safely carry the load, with the depth not to exceed 17 inches. Provide sketches. ii) The analysis is to include (a) bending strength, (b) shear strength, and...
Steel Design
3. Given a. W27X84 A992 Steel beam is simply supported over a 25' FT beam length. b. The compression flange of the beam is fully braced along the beam length. c. A uniformly distributed service dead load of 2.5 KLF. d. A uniformly distributed service live load of 3.5 KLF. e. A live load deflection limit of L/360. A dead live load deflection limit of L/240. f. Neglect the self-weight of the beam in all calculations. Determine: The...
a simply supported beam shown has a span length of 16 ft. the
beam is laoded with to concentrated service live loads of 40 kips
and 80 kips as shown. if lateral support is provided only at both
ends, select the lightest w section of A992 steel that can carry
these applied loads. neglect the weight of the beam.
***Need this answered ASAP please***
***Please show ALL steps***
steel design - please show what tables the values come from.
thank...
The simply supported beam of length L is subjected to uniformly distributed load of w and a vertical point load P at its middle, as shown in Figure Q3. Both young's modulus and second moment of area of this structure are given as E and I. Please provide your answers in terms of letters w, P,L,1, E. Self-weight of the beam is neglected. P W L/2 L/2 Figure Q3 (a) Determine the reactions, bending moment equation along the beam and...
A simply supported wood beam with a span of L = 16 ft
supports a uniformly distributed load of w0 =
305 lb/ft. The allowable bending stress of the wood is 1.30 ksi. If
the aspect ratio of the solid rectangular wood beam is specified as
h/b = 1.75, calculate the minimum width
b that can be used for the beam.
A simply supported wood beam with a span of L = 16 ft supports a uniformly distributed load of...
