4- A steel strip of thickness 6-12 mm is annealed by passing it through a large fumace whose wall...

Question

Question

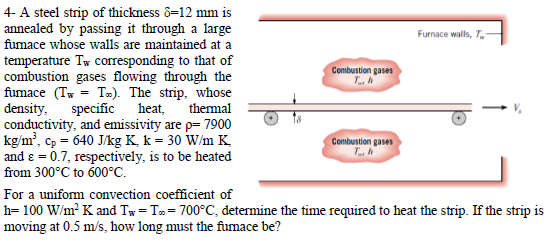

4- A steel strip of thickness 6-12 mm is annealed by passing it through a large fumace whose walls are maintained at a temper

engineering Mechanical-Engineering

Answer 1

Answer #1

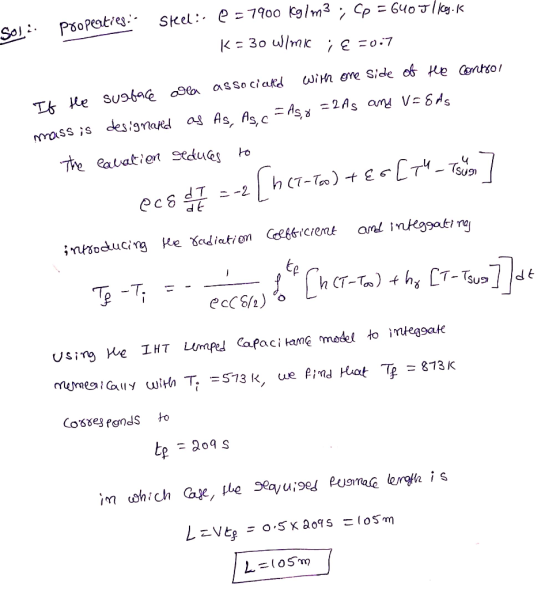

The eatatien Sedues to Eg

Answer 2

Similar Homework Help Questions

1. (10 points) A spherical thermocouple junction 1 mm in diameter is inserted in a combustion...

1. (10 points) A spherical thermocouple junction 1 mm in diameter is inserted in a combustion chamber to measure the temperature of the products of combustion. The hot gases are at 1000 K and have a velocity of 5 m/s. The thermocouple junction has an emissivity of 50% and the cooled walls of the combustor are at 500 K. The properties of the thermocouple junction are: p = 9000 kg/m”, Cp = 500 J/kg:K, k = 100 W/mK. The properties...
(25pts) Consider a 1.2-m-high and 2-m-wide glass window whose thickness is 6 mm and thermal conductivity...

(25pts) Consider a 1.2-m-high and 2-m-wide glass window whose thickness is 6 mm and thermal conductivity is k 0.78 W/m °C. Determine the steady rate of heat transfer through this glass window and the temperature of its inner surface for a day during which the room is maintained at 24°C while the temperature of the outdoors is-5°C. Take the convection heat transfer coefficients on the inner and outer surfaces of the window to be h 10 W/m2 °C and h...
