Question

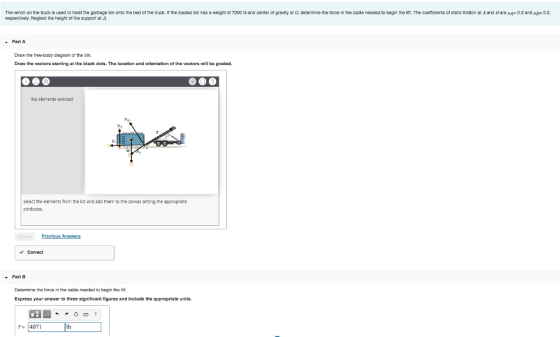

The winch on the truck is used to hoist the garbage bin onbo the bed of the truck I the loaded bin has a weight of 7200 lb and center of gravity at G, determine the torce in the cable needed to begin the lift. The coetmicients ot staic friction at Aand Bare MA 0.3 and pB 0.2 respectvely. Neglect the height of the support at A -Part A Draw the free-body disgram ot the bin Draw the vectors starting at the black dots. The location and orientation of the vectors will be graded. No elements selected 0 Select the elements from the list and add them to the canvas secting the appropriate attnbutes. Correct Part B Determina the force in the cabla neaded to begin the it Express your answer to three significant figures and include the appropriate units. T- 4071 lb

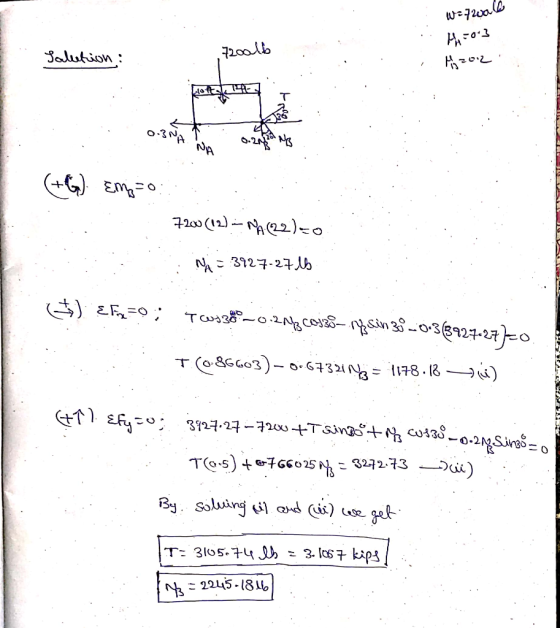

Answer 1

w#4200 Ng ะ 2245.1816
