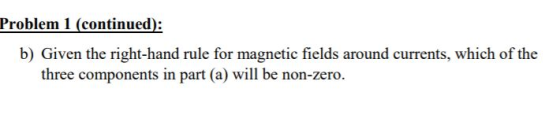

Problem 1 (continued): b) Given the right-hand rule for magnetic fields around currents, which of the three components in part (a) will be non-zero.
Homework Answers

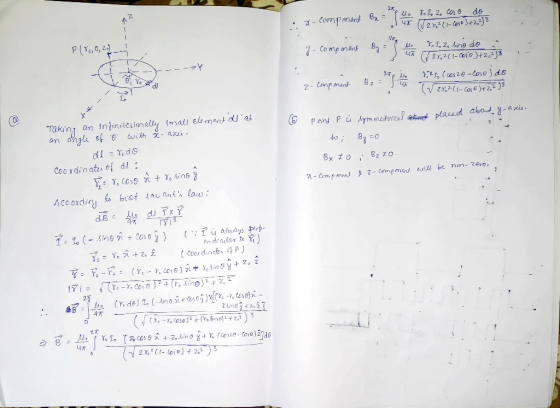

![2x LiA 0. Takin] an intintesimally imalil elment idi ho 2 0 Coordinates of d Accordiny 47 ,-) 22](http://img.homeworklib.com/images/e82253f2-93a0-4d83-8b6b-5a4455709f57.png?x-oss-process=image/resize,w_560)
***there are two pages first
see first page then move on to another.
Add Answer to:
Problem 1 (25 points): Magnetic Fields. A circular loop of current I, and radius ro lies in the x...
Problem 1 (25 points): Magnetic Fields. A circular loop of current Io and radius ro lies in the x...

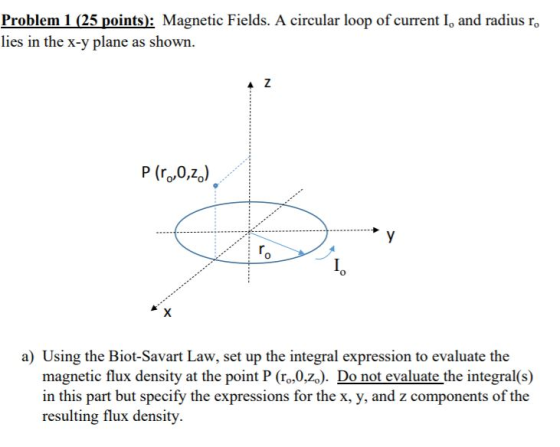

Problem 1 (25 points): Magnetic Fields. A circular loop of current Io and radius ro lies in the x-y plane as shown P (ro,0,zo) 0 a) Using the Biot-Savart Law, set up the integral expression to evaluate the magnetic flux density at the point P (ro,0,zo). Do not evaluate the integral(s) in this part but specify the expressions for the x, y, and z components of the resulting flux density. b) Given the right-hand rule for magnetic fields around currents,...
Problem 3 (25 points): Magnetic Field from Superposition. A circular disk of radius ro is uniformly...
Problem 3 (25 points): Magnetic Field from Superposition. A circular disk of radius ro is uniformly coated with charge with a surface charge density of ps the disk lies in the x-y plane and the disk axis is the z-axis. This disk is spinning about the z-axis at a rate of one revolution every T seconds. The resulting surface current density on the disk is given by 2Tps a) What is the magnetic field intensity on the z-axis at a...
Problem 3 (16 2 3 points): Static Magnetic Field: A wire carrying current lo runs from y = to theo along the y-axis and then from the origin to x along the x-axis. Use the Biot- Savart Law to determi...
Problem 3 (16 2 3 points): Static Magnetic Field: A wire carrying current lo runs from y = to theo along the y-axis and then from the origin to x along the x-axis. Use the Biot- Savart Law to determine the magnetic flux density at the point indicated in the figure. (хо.yo)
Problem 3 (16 2 3 points): Static Magnetic Field: A wire carrying current lo runs from y = to theo along the y-axis and then from the origin...
24: 15 points) consider a circular current loop of radius a in the x-y plane, which...
24: 15 points) consider a circular current loop of radius a in the x-y plane, which carries steady current l. Use Biot-Savart law to find the magnetic field strength anywhere on the z axis.
u Review IP A circular loop with a radius of 4.0 cm lies in the x-y...
u Review IP A circular loop with a radius of 4.0 cm lies in the x-y plane. The magnetic field in this region of space is uniform and given by B = 0.40 T )x+( -0.10 Tỷ+( 0.53 T ) 2. Part A What is the magnitude of the magnetic flux through this loop? Express your answer using two significant figures. VAE ? m Wb Submit Request Answer Part B Suppose we now increase the component of B, leaving the...
A circular area with a radius of 7.40 cm lies in the x-y plane.
A circular area with a radius of 7.40 cm lies in the x-y plane.For related problem-solving tips and strategies, you may want to view a Video Tutor Solution of Magnetic flux.Part AWhat is the magnitude of the magnetic flux through this circle due to a uniform magnetic field B =0.247 T that points in the +z direction?Part BWhat is the magnitude of the magnetic flux through this circle due to a uniform magnetic field B =0.247 T that points at...
Matlab Please! A small, circular wire loop of radius a and constant current I works as...
Matlab Please!
A small, circular wire loop of radius a and constant current I works as a "magnetic dipole," having a north pole and a south pole as defined by the right hand rule as shown below. At a distance R a from the center of the loop, the magnetic flux density is given by 4R3 Let I 10 mA, a 0.1 cm, and plot the magnetic field in the y-z plane for -1 s y s 1,-1 s Z...
PLEASE ANSWER THIS FAST! Example 22.6 Magnetic Field on the Axis of a Circular Current Loop...
PLEASE ANSWER THIS FAST!
Example 22.6 Magnetic Field on the Axis of a Circular Current Loop Consider a circular wire loop of radius a located in the yz plane and carrying a steady current I as in the figure below. Calculate the magnetic field at an axial point Pa distance x from the center of the loop SOLVE IT dB dB . Conceptualize The figure shows the magnetic field contribution dB at P due to a single current element at...
3. Infinite conductor a) Consider a straight conductor (infinite length) which carries a total current I...
3. Infinite conductor a) Consider a straight conductor (infinite length) which carries a total current I in the direc- tion of the z axis. Calculate the magnetic induction Ē(7) using the Biot-Savart law. Hint The current density is given by j = 1S(x)6(y)ë^ b) Explicitly check the result from the previous task by calculating the magnetic induction B(F) using the symmetry of the problem and applying Stoke's theorem onto Maxwell's equation of magnetostatics V x B = 407 c) Now,...
2. RFID Tag Magnetic field: Consider a square loop of wire that lies in the x-y plane and carries...
2. RFID Tag Magnetic field: Consider a square loop of wire that lies in the x-y plane and carries an electric current lo. The center of the loop is located at the origin and each side has length a. The current flows in a counter-clockwise direction as shown in the figure below Note*: This is a common design for an RFID tag's antenna, we will analyze RFID tag detection at a later time. a) Using Biot-Savart's law, find an expression...
Problem 1 (25 points): Magnetic Fields. A circular loop of current Io and radius ro lies in the x-y plane as shown P (ro,0,zo) 0 a) Using the Biot-Savart Law, set up the integral expression to evaluate the magnetic flux density at the point P (ro,0,zo). Do not evaluate the integral(s) in this part but specify the expressions for the x, y, and z components of the resulting flux density. b) Given the right-hand rule for magnetic fields around currents,...
Problem 3 (25 points): Magnetic Field from Superposition. A circular disk of radius ro is uniformly coated with charge with a surface charge density of ps the disk lies in the x-y plane and the disk axis is the z-axis. This disk is spinning about the z-axis at a rate of one revolution every T seconds. The resulting surface current density on the disk is given by 2Tps a) What is the magnetic field intensity on the z-axis at a...
Problem 3 (16 2 3 points): Static Magnetic Field: A wire carrying current lo runs from y = to theo along the y-axis and then from the origin to x along the x-axis. Use the Biot- Savart Law to determine the magnetic flux density at the point indicated in the figure. (хо.yo)
Problem 3 (16 2 3 points): Static Magnetic Field: A wire carrying current lo runs from y = to theo along the y-axis and then from the origin...
24: 15 points) consider a circular current loop of radius a in the x-y plane, which carries steady current l. Use Biot-Savart law to find the magnetic field strength anywhere on the z axis.
u Review IP A circular loop with a radius of 4.0 cm lies in the x-y plane. The magnetic field in this region of space is uniform and given by B = 0.40 T )x+( -0.10 Tỷ+( 0.53 T ) 2. Part A What is the magnitude of the magnetic flux through this loop? Express your answer using two significant figures. VAE ? m Wb Submit Request Answer Part B Suppose we now increase the component of B, leaving the...
Matlab Please!
A small, circular wire loop of radius a and constant current I works as a "magnetic dipole," having a north pole and a south pole as defined by the right hand rule as shown below. At a distance R a from the center of the loop, the magnetic flux density is given by 4R3 Let I 10 mA, a 0.1 cm, and plot the magnetic field in the y-z plane for -1 s y s 1,-1 s Z...
PLEASE ANSWER THIS FAST!
Example 22.6 Magnetic Field on the Axis of a Circular Current Loop Consider a circular wire loop of radius a located in the yz plane and carrying a steady current I as in the figure below. Calculate the magnetic field at an axial point Pa distance x from the center of the loop SOLVE IT dB dB . Conceptualize The figure shows the magnetic field contribution dB at P due to a single current element at...
3. Infinite conductor a) Consider a straight conductor (infinite length) which carries a total current I in the direc- tion of the z axis. Calculate the magnetic induction Ē(7) using the Biot-Savart law. Hint The current density is given by j = 1S(x)6(y)ë^ b) Explicitly check the result from the previous task by calculating the magnetic induction B(F) using the symmetry of the problem and applying Stoke's theorem onto Maxwell's equation of magnetostatics V x B = 407 c) Now,...
2. RFID Tag Magnetic field: Consider a square loop of wire that lies in the x-y plane and carries an electric current lo. The center of the loop is located at the origin and each side has length a. The current flows in a counter-clockwise direction as shown in the figure below Note*: This is a common design for an RFID tag's antenna, we will analyze RFID tag detection at a later time. a) Using Biot-Savart's law, find an expression...
