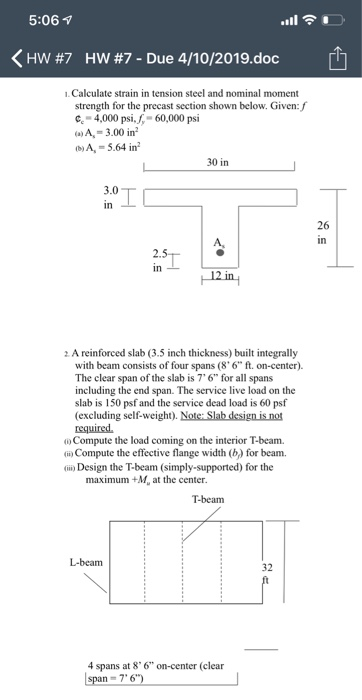

![5:06 0 < HW #7 HW #7-Due 4/10/2019.doc t] .Calculate strain in tension steel and nominal moment strength for the precast sect](http://img.homeworklib.com/images/50cb8b65-41b1-4b99-93a5-da5a1f71d868.png?x-oss-process=image/resize,w_560)
Homework Answers
Add Answer to:
5:06 0 < HW #7 HW #7-Due 4/10/2019.doc t] .Calculate strain in tension steel and nominal moment s...
I just need help with (I). I can not seem to find the self-weight equation to...
I just need help with (I). I can not seem to find the self-weight
equation to add to my dead load.
1. A reinforced slab built integrally with beam consists of four spans (8' 6" on- center). The clear span of the slab is 7' 6" for all spans including the end span. The service live load is 160 psf and the service dead load is 30 psf (excluding self-weight). Given: f'.= 4,000 psi, normal weight concrete, fy= 60,000 psi....
Name: Date: 2. (+35) Design a typical interior tension-reinforced T-beam to resist positive moment. Beam dimension...
Name: Date: 2. (+35) Design a typical interior tension-reinforced T-beam to resist positive moment. Beam dimension is given. The service loads are 150 psf dead load (doesn't include the beam weight) and 350 psf live load. The beam is on a simple span of 20 ft. Use f:=4000 psi for strength concrete and fy=60000 psi for steel reinforcement. 8-0* (typ.)
b.323 The empirical provisions of 6.3.2.1 and 6.3.2.2 were developed for nonprestressed T-beams. The flange widths in 6.3.2.1 and 6.3.22 should be uset Problem Two: The beam shown below part is f...
b.323 The empirical provisions of 6.3.2.1 and 6.3.2.2 were developed for nonprestressed T-beams. The flange widths in 6.3.2.1 and 6.3.22 should be uset Problem Two: The beam shown below part is for an interior span and is cast monolithically with a one-wav slab. The clear span for the beam is 30 feet, and the clear spacing between beams is 10 feet. (a) Reinforcement is shown for the positive moment region. Determine if the beam is adequate to support a uniformly...
Please do it step by step Mn for 3-8. The T-beam shown is on a simple...
Please do it step by step
Mn for 3-8. The T-beam shown is on a simple span of 30 ft. Use wn. The 3000 psi and f-60,000 psi. No dead load eists other than the weight of the floor system. Assume that the slab design is adequate. a. Find the practical moment strength фМп. b. Compute the permissible service live load psi and that can be placed on the floor (psf). #3 stirrup 27 23,5 7-6" (typ.) PROBLEM 3-8
1. T-Beams are used to support a floor in an industrial building. The floor is used...
1. T-Beams are used to support a floor in an industrial building. The floor is used for product storage so it must be designed for a heavy 600 psf. The floor must also support a superimposed dead load of 20 psf (in addition to the self-weight of the beams and slab. The layout of the beams and slabs is shown below. The beams span 30.0% and are spaced at 4.0” center to center. The slab is 3” thick. The concrete...
Could you please help me on question 7. Thank you very much. The floor system shown...
Could you please help me on question 7.
Thank you very much.
The floor system shown below consists of normalweight concrete (150 pcf). Beams C2 ! LT 1 7.0 inch ! h=20 in G2! 12 in Girders BI 1 7.0 inch Slab 8 ft span h 24 in ----- - -- - --- 15 in 15 ft 15 ft Use 4000 psi concrete and Gr. 60 reinforcing steel. Assume 0.75 inch clear cover. Include concrete self-weight and a superimposed dead...
I just need help with (I). I can not seem to find the self-weight
equation to add to my dead load.
1. A reinforced slab built integrally with beam consists of four spans (8' 6" on- center). The clear span of the slab is 7' 6" for all spans including the end span. The service live load is 160 psf and the service dead load is 30 psf (excluding self-weight). Given: f'.= 4,000 psi, normal weight concrete, fy= 60,000 psi....
Name: Date: 2. (+35) Design a typical interior tension-reinforced T-beam to resist positive moment. Beam dimension is given. The service loads are 150 psf dead load (doesn't include the beam weight) and 350 psf live load. The beam is on a simple span of 20 ft. Use f:=4000 psi for strength concrete and fy=60000 psi for steel reinforcement. 8-0* (typ.)
b.323 The empirical provisions of 6.3.2.1 and 6.3.2.2 were developed for nonprestressed T-beams. The flange widths in 6.3.2.1 and 6.3.22 should be uset Problem Two: The beam shown below part is for an interior span and is cast monolithically with a one-wav slab. The clear span for the beam is 30 feet, and the clear spacing between beams is 10 feet. (a) Reinforcement is shown for the positive moment region. Determine if the beam is adequate to support a uniformly...
Please do it step by step
Mn for 3-8. The T-beam shown is on a simple span of 30 ft. Use wn. The 3000 psi and f-60,000 psi. No dead load eists other than the weight of the floor system. Assume that the slab design is adequate. a. Find the practical moment strength фМп. b. Compute the permissible service live load psi and that can be placed on the floor (psf). #3 stirrup 27 23,5 7-6" (typ.) PROBLEM 3-8
1. T-Beams are used to support a floor in an industrial building. The floor is used for product storage so it must be designed for a heavy 600 psf. The floor must also support a superimposed dead load of 20 psf (in addition to the self-weight of the beams and slab. The layout of the beams and slabs is shown below. The beams span 30.0% and are spaced at 4.0” center to center. The slab is 3” thick. The concrete...
Could you please help me on question 7.
Thank you very much.
The floor system shown below consists of normalweight concrete (150 pcf). Beams C2 ! LT 1 7.0 inch ! h=20 in G2! 12 in Girders BI 1 7.0 inch Slab 8 ft span h 24 in ----- - -- - --- 15 in 15 ft 15 ft Use 4000 psi concrete and Gr. 60 reinforcing steel. Assume 0.75 inch clear cover. Include concrete self-weight and a superimposed dead...
