A system of two first order differential equations can be
written as:
A second order explicit Runge-Kutta scheme for the system of two
first order equations is

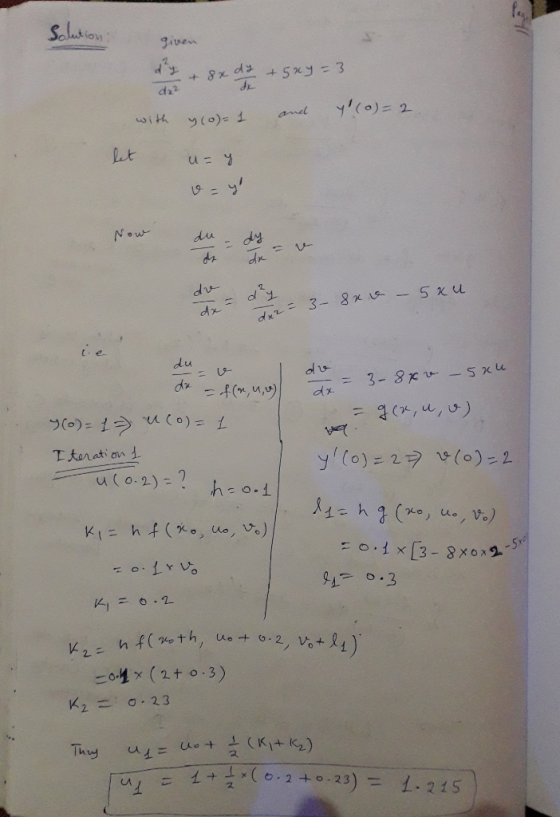

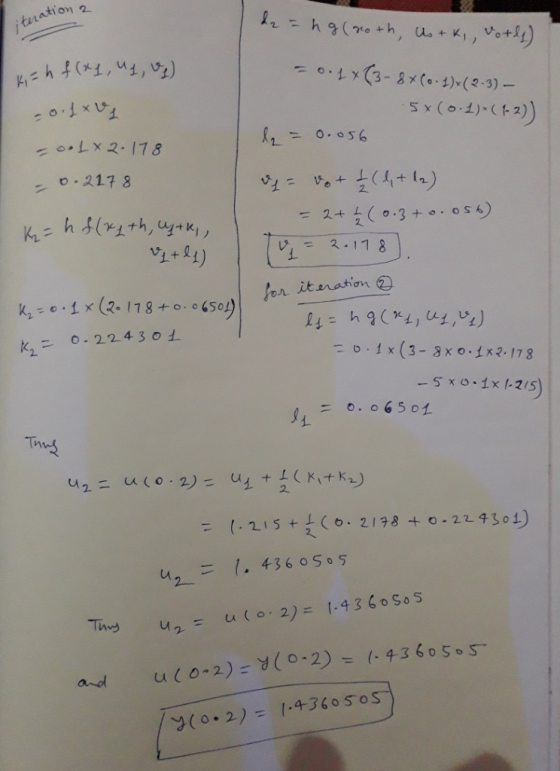

Consider the following second order differential equation:
Use the Runge-kutta scheme to find an approximate solution of the
second order differential equation, at x = 0.2, if the step size h
= 0.1.
Maintain at least eight decimal digit accuracy throughout all your
calculations.
You may express your answer as a five decimal digit number; for
example 16.17423.
YOU DO NOT HAVE TO ROUND YOUR FINAL ESTIMATE.
| y(0.2) ≈ |
g)
1ry 3, with y(0)-1 and y (o)-2. diz2
