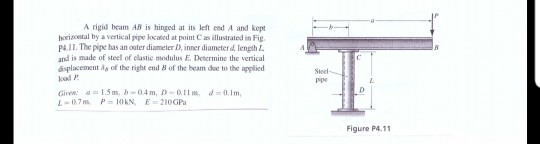

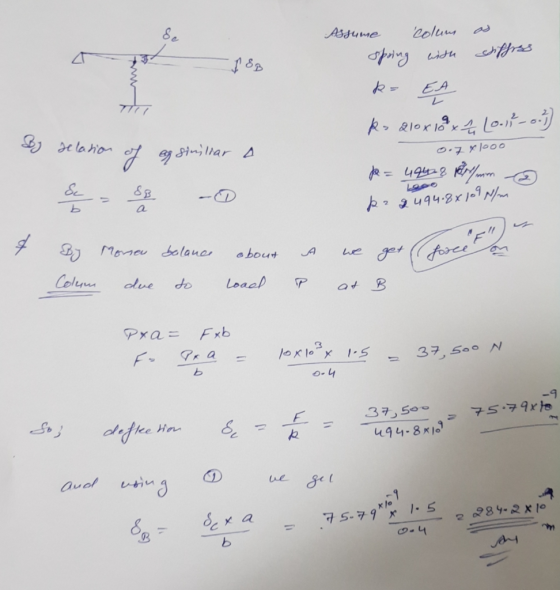

A rigid beam AB is hinged at its left end A and kept boeiacetal by a vertical pipe located at poi...
A rigid beam AFBC in Fig.3 is supported by a hinged joint at A and connected to a vertical post B...
A rigid beam AFBC in Fig.3 is supported by a hinged joint at A and connected to a vertical post BD by a hinged connection at B. Rigid beam AFBC and vertical post cross-sectional dimension of 10mmx250mm and 15mmx200mm, respectively. Two concentrated loads Pi and P2 act on the rigid beam at point F and C, respectively. Details at support A and connection B are also shown in the figure. Compute (a) normal stress in vertical post BD (state whether...
A rigid beam ABCD is supported by a pin at B and two cables located at...
A rigid beam ABCD is supported by a pin at B and two cables located at A and C. The cables have a 30 mm diameter and are made of steel with yield strength of 800 MPa and elastic modulus of 200 GPa. The beam is designed to resist a vertical load P applied at D equal to 200 kN. a) Find the forces developed in each cable b) Find the corresponding vertical displacement at point where the load is...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the ver...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the vertical deformation of the spring if the spring constant is 700 kN/m. (ans: 21.43 mm) 2. A steel cable with a nominal diameter of 25 mm is used in a construction yard to lift a bridge section weighing 38 kN. The cable has an...
beam has a fxed support at the left and nd is located 53.75mm below the top...
beam has a fxed support at the left and nd is located 53.75mm below the top of the inverted tee-beam is subijected to vertical loads as showm in the fipire. The of inertia about the neutral ais,1 -1.786x1010%m 2kN 250 mm 250 mm 300 mm 0 20m 50 m 11) Refer to Beam Diagram-1 B Point B is located just above the interface between the stem and bottom flange When calculating the shear stress at the cross section at point...
A rigid beam BCD is supported on a roller support at C (4m from B) and has two bars AB and DE attached at each end
A rigid beam BCD is supported on a roller support at C (4m from B) and has two bars AB and DE attached at each end. The bars can carry either tension or compressive forces. The rigid beam carries a UDL of I kN/m across BC and a point load of P at D as shown in the figure above. The length of the two bars is 3000 mm. The elastic modulus of both bars is 200 GPa and the...
A rigid beam AFBC in Fig.3 is supported by a hinged joint at A and connected to a vertical post BD by a hinged connection at B. Rigid beam AFBC and vertical post cross-sectional dimension of 10mmx250mm and 15mmx200mm, respectively. Two concentrated loads Pi and P2 act on the rigid beam at point F and C, respectively. Details at support A and connection B are also shown in the figure. Compute (a) normal stress in vertical post BD (state whether...
A rigid beam ABCD is supported by a pin at B and two cables located at A and C. The cables have a 30 mm diameter and are made of steel with yield strength of 800 MPa and elastic modulus of 200 GPa. The beam is designed to resist a vertical load P applied at D equal to 200 kN. a) Find the forces developed in each cable b) Find the corresponding vertical displacement at point where the load is...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the vertical deformation of the spring if the spring constant is 700 kN/m. (ans: 21.43 mm) 2. A steel cable with a nominal diameter of 25 mm is used in a construction yard to lift a bridge section weighing 38 kN. The cable has an...
beam has a fxed support at the left and nd is located 53.75mm below the top of the inverted tee-beam is subijected to vertical loads as showm in the fipire. The of inertia about the neutral ais,1 -1.786x1010%m 2kN 250 mm 250 mm 300 mm 0 20m 50 m 11) Refer to Beam Diagram-1 B Point B is located just above the interface between the stem and bottom flange When calculating the shear stress at the cross section at point...
