Question

help wanted?

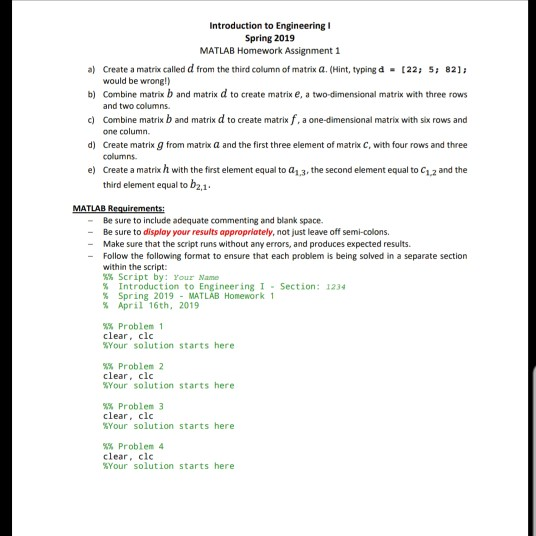

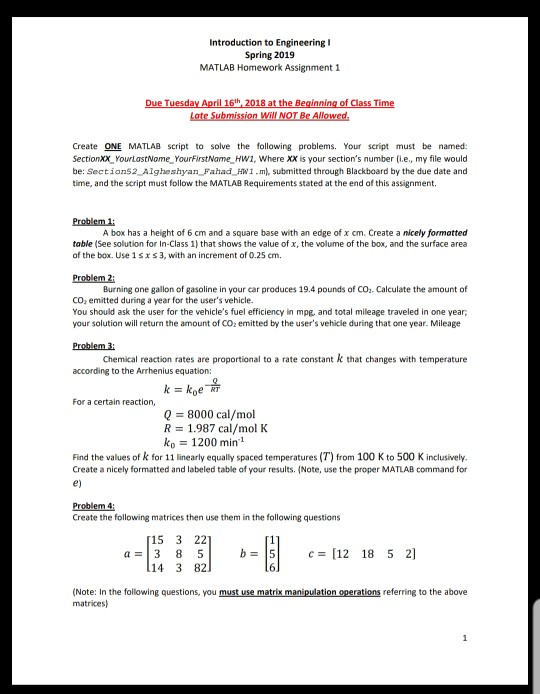

Introduction to Engineering I Spring 2019 MATLAB Homework Assignment 1 a) Create a matrix called d from the third column of matrix a. (Hint, typing d 22: 5: 821 b) Combine matrix b and matrix d to create matrix e, a two-dimensional matrix with three rows c) Combine matrix b and matrix d to create matrix f, a one-dimensional matrix with six rows and d) Create matrix g from matrix a and the first three element of matrix C, with four rows and three e) Create a matrix h with the first element equal to a1,3, the second element equal to C1,2 and the would be wrong!) and two columns. one column. columns third element equal to b2,1 Be sure to include adequate commenting and blank space. -Be sure to display your results appropriately, not just leave off semi-colons. -Make sure that the script runs without any errors, and produces expected results - Follow the following format to ensure that each problem is being solved in a separate section within the script: %Script by: Your Name % Introduction to Engineering I-Section: 1234 % Spring 2019-MATLAB Homework 1 % April 16th, 2019 Problem 1 clear, clc Your solution starts here Problem 2 clear, clc %Your solution starts here Problem 3 clear, clc %Your solution starts here Problem 4 clear, clc %Your solution starts here Introduction to Engineering Spring 2019 MATLAB Homework Assignment 1 Create ONE MATLAB script to solve the following problems. Your script must be named SectionxX YowLastNome YourFirstName HW1, Where XX is your section's number (i.e, my file would be: SectionS2 Aigheshyan Fahad HWI.m), submitted through Blackboard by the due date and time, and the script must follow the MATLAB Requirements stated at the end of this assignment Problem 1 A box has a height of 6 cm and a square base with an edge of x cm. Create a nicely formatted table (See solution for In-Class 1) that shows the value of x, the volume of the box, and the surface area of the box. Use 1 sx s 3, with an increment of 0.25 cm. Problem 2 Burning one gallon of gasoline in your car produces 19.4 pounds of CO1. Calculate the amount of CO, emitted during a year for the user's vehicle. You should ask the user for the vehicle's fuel efficiency in mpe, and total mileage traveled in one year, your solution will return the amount of C02 emitted by the user's vehicle during that one year. Mileage Problem ii Chemical reaction rates are proportional to a rate constant k that changes with temperature according to the Arrhenius equation k = koe- For a certain reaction, Q = 8000 cal/mol R 1.987 cal/mol K ko = 1200 min-1 Find the values of k for 11 linearly equally spaced temperatures (T) from 100 K to 500 K inclusively. Create a nicely formatted and labeled table of your results. (Note, use the proper MATLAB command for e) Problem 4 Create the following matrices then use them in the following questions 15 з 22 a3 8 5 14 3 82 b-512 18 5 2] (Note: In the following questions, you must use matrix manipulation operations referring to the above matrices)

Answer 1

%% Script by:
% Introduction to Engineering I - Section:
% Spring 2019 - MATLAB Homework I
% April 16, 2019

%% Problem 1
clear,clc;
x=[1:.25:3]'; %create x with increaments of 0.25
h=6; %height of the box
base_area=x.*x; %This is the area of the base
volume_box=h.*base_area; %volume of the box;
surface_area=h*4*x+2*x.*x; %Surface area of the box
display(table(x,volume_box,surface_area));

%% Problem 2
clear,clc;
efficiency=input('Please Enter the Fuel Efficiency of your Vehicle in miles per gallon (mpg): ');
mileage=input('Please enter the total mileage in one year: ');
emissions=19.4*(mileage/efficiency);
fprintf('The total amount of Carbon dioxide emission in one year is %f pounds\n',emissions);

%% Problem 3
clear,clc;
T=linspace(100,500,11); %creates 11 equally spaced values between 100 and 500
Q=8000;
R=1.987;
k0=1200;
k=k0*exp(-Q./(R*T)); %exp is used for exponential function
display(table(T',k','VariableNames',{'Temperature' 'Rate'}));

%% Problem 4
clear,clc;
a=[15 3 22;3 8 5;14 3 82]; %This is the matrix a
b=[1;5;6]; %This is the matrix b
c=[12 18 5 2]; %This is the matrix c
d=a(:,3); % Assigning d as the third column of a
display(d);
e=[b d]; % Combining b and d to create a 3x2 matrix
display(e);
f=[b;d]; % Combining b and d to create a 6x1 matrix
display(f);
g=[a;c(1,1:3)]; % Combining a and c to create a 4x3 matrix
display(g);
h=[a(1,3);c(1,2);b(2,1)];
display(h);

==================================================================================

Hope I have answered your question. Give your comments and rating so that I can improve my future answers
