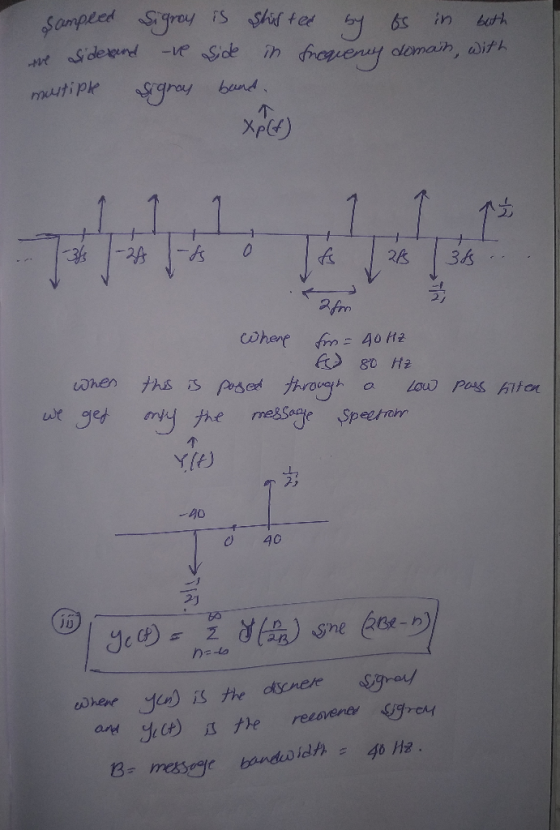

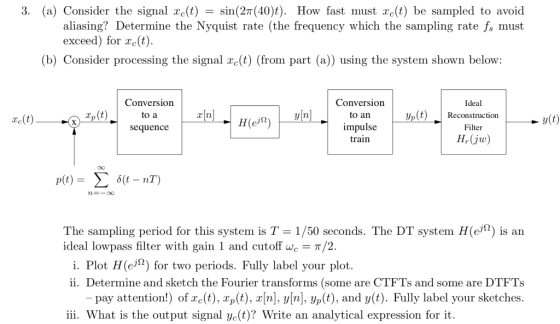

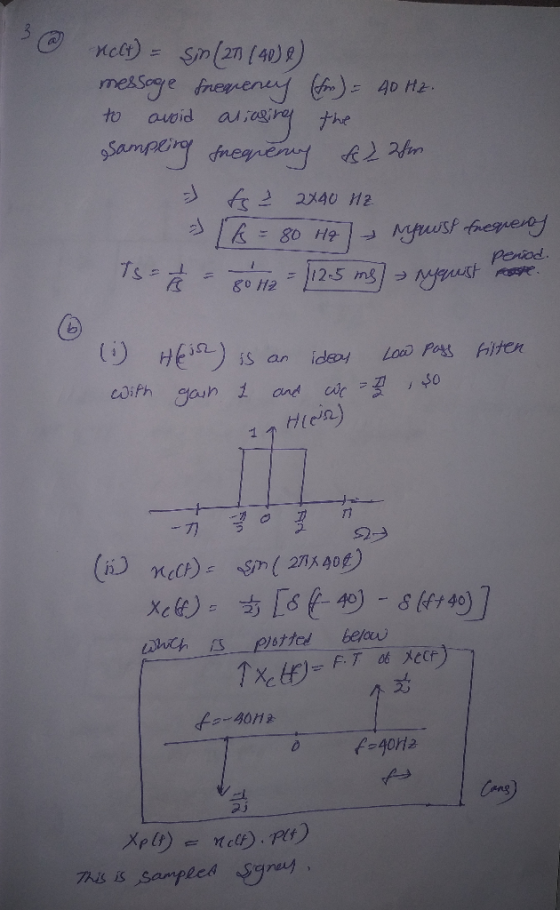

3. (a) Consider the signal xc(t)-sin(2π(40)t). How fast must xe(t) be sanpled to avoid aliasing? ...
Please answer the following fully with detailed justification/explanation. Thank you. Consider the signal e(t) (60m sin...
Please answer the following fully with detailed
justification/explanation. Thank you.
Consider the signal e(t) (60m sin (50t) (a) Determine Xc(jw), the Fourier transform of e(t). Plot (and label) Xe(ju) b) What is the Nyquist rate for re(t)? (c) Consider processing the signal re(t) using the system shown below: Conversion to a Ideal to an e(t) y(t) impulse train Filter H-(ju) The sampling rate for this system is f DT filter is shown below 150 Hz. The frequency response of the...
Question2: (40 points]: Consider the system shown in the figure with the input signal xc(t) =...
Question2: (40 points]: Consider the system shown in the figure with the input signal xc(t) = 3 cos(100t) + 2 cos(200t), sampling frequency ws = 600 rad/s, and final filter cutoff frequency w1 = 400 rad/s. The filter has an impulse response given byha[n] = 8[n – 1] + 8[n] + 8[n + 1]. a) [10 points] Find and plot the signal Xa(ein) b) [10 points] Find and plot the signals Ya(ejn) and yo (jw) c) [10 points] Find and...
4. The continuous-time signal e(t) has the Fourier transform X(jw) shown below. Xe(ju) is zero ou...
4. The continuous-time signal e(t) has the Fourier transform X(jw) shown below. Xe(ju) is zero outside the region shown in the figure X.Gj) -2T (300) -2r(100) 0 2n(100) 2T (300) We need to filter re(t) to remove all frequencies higher than 200 Hz. (a) Plot the effective continuous-time filter we need to implement. Label your plot. b) Suppose we decide to implement the filtering in discrete-time using the overall process (sample, filter, reconstruct) shown in the figure in Problem 3....
Q1) Given an analog signal X(t) = 3 cos (2π . 2000t) + 2 cos (2π...
Q1) Given an analog signal X(t) = 3 cos (2π . 2000t) + 2 cos (2π . 5500t) sampled at a rate of 10,000 Hz, a. Sketch the spectrum of the sampled signal up to 20 kHz; b. Sketch the recovered analog signal spectrum if an ideal lowpass filter with a cutoff frequency of 4 kHz is used to filter the sampled signal in order to recover the original signal ; c. Determine the frequency/frequencies of aliasing noise . Q2)...
number 2 ECE 300 Continuous-Time Signals and Systems H(jø π/2 Plot the spectrum Z (jø) of the filtered input signal z()...
number 2
ECE 300 Continuous-Time Signals and Systems H(jø π/2 Plot the spectrum Z (jø) of the filtered input signal z(), the spectrum Z, (jo) of the sampled signal z.(t), and the spectrum Y(ja) of the reconstructed signal y(t). Show clearly how the output spectrum Y (ja) differs from the original spectrum G(jo) C. Which system, A or B, produces less distortion between the input g(t) and the output y(4) or ()? Explain. You can measure distortion by finding the...
3. (50 points] Consider the signal (t= cos(27 (100)+]: 1) Let's take samples of x(t) at...
3. (50 points] Consider the signal (t= cos(27 (100)+]: 1) Let's take samples of x(t) at a sampling rate fs = 180 Hz. Sketch the spectrum X (f) of the sampled signal x (t). Properly label x-axis and y-axis. 2) Now suppose we will use an ideal lowpass filter of gain 1/fs with a cutoff frequency 90 Hz for the sampled signal xs(t). What is the output of the filter x,(t)? 3) Now let's take samples of x(t) at sampling...
A Digital Signal Processing system is taking at its input the following analogue signal s(t); s(t)...
A Digital Signal Processing system is taking at its input the following analogue signal s(t); s(t) - 20+ 20 cos(24xt)cos(xt), Where time t is expressed in ms. Part 1 - Setting the sampling frequency: (11 Marks) As a start, the system comprises only a sampler and an ideal analogue reconstructor as follows: w(t) s(t) Sampler Analogue Reconstructor s,(t) Figure a) Find the frequency spectrum S(t) of s(t) and deduce its bandwidth. You may directly use the table provided at the...
onsider the sampling and reconstruction system shown in the figure. x(t) IdealIdeal) D-to-C Converter Converter Assume...
onsider the sampling and reconstruction system shown in the figure. x(t) IdealIdeal) D-to-C Converter Converter Assume that the sampling rates of the C-to-D and D-to-C converters are equal, and the input to the Ideal C-to-D converter is x(t) = 2 cos (2m(50)t +π) + cos(2π(150e) a. (5) If the output of the Ideal D-to-C converter is equal to the input x(t) i.e. ()2 cos (2m(50)t +7)+cos(2(150)) b. (5) If the sampling rate is fs = 250 samples/sec, determine the discrete-time...
Please answer the following fully with detailed
justification/explanation. Thank you.
Consider the signal e(t) (60m sin (50t) (a) Determine Xc(jw), the Fourier transform of e(t). Plot (and label) Xe(ju) b) What is the Nyquist rate for re(t)? (c) Consider processing the signal re(t) using the system shown below: Conversion to a Ideal to an e(t) y(t) impulse train Filter H-(ju) The sampling rate for this system is f DT filter is shown below 150 Hz. The frequency response of the...
Question2: (40 points]: Consider the system shown in the figure with the input signal xc(t) = 3 cos(100t) + 2 cos(200t), sampling frequency ws = 600 rad/s, and final filter cutoff frequency w1 = 400 rad/s. The filter has an impulse response given byha[n] = 8[n – 1] + 8[n] + 8[n + 1]. a) [10 points] Find and plot the signal Xa(ein) b) [10 points] Find and plot the signals Ya(ejn) and yo (jw) c) [10 points] Find and...
4. The continuous-time signal e(t) has the Fourier transform X(jw) shown below. Xe(ju) is zero outside the region shown in the figure X.Gj) -2T (300) -2r(100) 0 2n(100) 2T (300) We need to filter re(t) to remove all frequencies higher than 200 Hz. (a) Plot the effective continuous-time filter we need to implement. Label your plot. b) Suppose we decide to implement the filtering in discrete-time using the overall process (sample, filter, reconstruct) shown in the figure in Problem 3....
number 2
ECE 300 Continuous-Time Signals and Systems H(jø π/2 Plot the spectrum Z (jø) of the filtered input signal z(), the spectrum Z, (jo) of the sampled signal z.(t), and the spectrum Y(ja) of the reconstructed signal y(t). Show clearly how the output spectrum Y (ja) differs from the original spectrum G(jo) C. Which system, A or B, produces less distortion between the input g(t) and the output y(4) or ()? Explain. You can measure distortion by finding the...
3. (50 points] Consider the signal (t= cos(27 (100)+]: 1) Let's take samples of x(t) at a sampling rate fs = 180 Hz. Sketch the spectrum X (f) of the sampled signal x (t). Properly label x-axis and y-axis. 2) Now suppose we will use an ideal lowpass filter of gain 1/fs with a cutoff frequency 90 Hz for the sampled signal xs(t). What is the output of the filter x,(t)? 3) Now let's take samples of x(t) at sampling...
A Digital Signal Processing system is taking at its input the following analogue signal s(t); s(t) - 20+ 20 cos(24xt)cos(xt), Where time t is expressed in ms. Part 1 - Setting the sampling frequency: (11 Marks) As a start, the system comprises only a sampler and an ideal analogue reconstructor as follows: w(t) s(t) Sampler Analogue Reconstructor s,(t) Figure a) Find the frequency spectrum S(t) of s(t) and deduce its bandwidth. You may directly use the table provided at the...
onsider the sampling and reconstruction system shown in the figure. x(t) IdealIdeal) D-to-C Converter Converter Assume that the sampling rates of the C-to-D and D-to-C converters are equal, and the input to the Ideal C-to-D converter is x(t) = 2 cos (2m(50)t +π) + cos(2π(150e) a. (5) If the output of the Ideal D-to-C converter is equal to the input x(t) i.e. ()2 cos (2m(50)t +7)+cos(2(150)) b. (5) If the sampling rate is fs = 250 samples/sec, determine the discrete-time...
