Homework Answers
Answer:-
2)
(a)
- The given circuit has negative feedback polarity.
- The arrival of part of a yield flag to the info, which is out of stage with it, so speaker gain is diminished and the yield is improved.
- The type of feedback is current-series.
(b)
- The given circuit has positive feedback polarity.
- The arrival of part of a yield flag to the information, which is in stage with it, so the intensifier gain is expanded and frequently the yield is twisted.
- The type of feedback is voltage-series.
(c)
- The given circuit has negative feedback polarity.
- The arrival of part of a yield flag to the info, which is out of stage with it, so speaker gain is diminished and the yield is improved.
- The type of feedback is voltage-series.
Add Answer to:

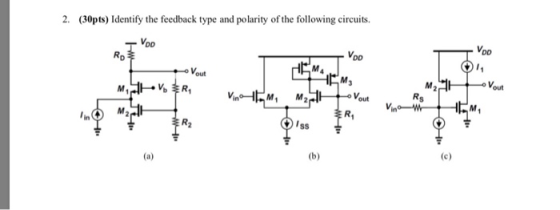

2. (30pts) Identify the feedback type and polarity of the following circuits. Voo M4 M3 ER Iss
Question 3 2 pts Go over the lecture and find each of the following logic circuits...
Question 3 2 pts Go over the lecture and find each of the following logic circuits and name each Deci Full Adder 4+1 DH CK Clock Od Odk 2 3 4 1.[M1] 2.[M2] 3.[M3] 4.[M4] 1 [Choose] (Choose] 2 3 light digital system General model Moor circuit with D flip flops 3 General model Mealy circuit with D flip flops Serial adder [Choose]
Figure 2 shows a feedback amplifier circuit. Rs is the source resistor and R, is the...
Figure 2 shows a feedback amplifier circuit. Rs is the source resistor and R, is the load resistor RS Vs VI RL OPAMP R2 R1 RM R3 R4 Step 1: open-loop and closed-loop circuits identification 1.1 Identify the source, the load, and the closed-loop amplifier 1.2 Identify the open-loop amplifier (**A" eireuit) and the feedback network (B" eircuit) in the closed-loop amplifier 1.3 Identify the connection type between the "A" circuit and the "B" circuit at both the input and...
1 (70 points) In the following multi-stage amplifier input and output of the amplifier as well as...
1 (70 points) In the following multi-stage amplifier input and output of the amplifier as well as the feedback resistance (RF) were AC coupled to nodes through the coupling capacitances (Ce-100uF). W/L)2 55/0.25u VAA R2 M1 Xin R, VI M2 Ri Ro a. (20 points) Calculate the bias currents of IpS,MI, IDS M2, IR2 and the total DC power consumption of the circuit assuming Ro Determine the operation regions of the transistors. (20 points) Find the type and polarity of...
