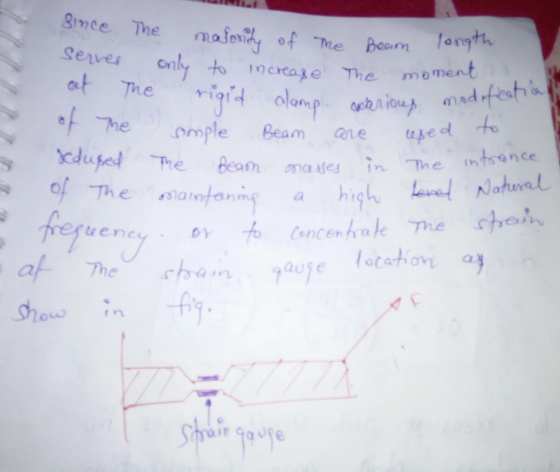

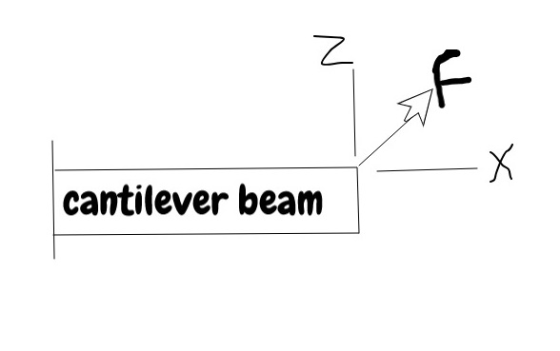

Strain gauge with combined forces (axial and bending forces).
Questions :

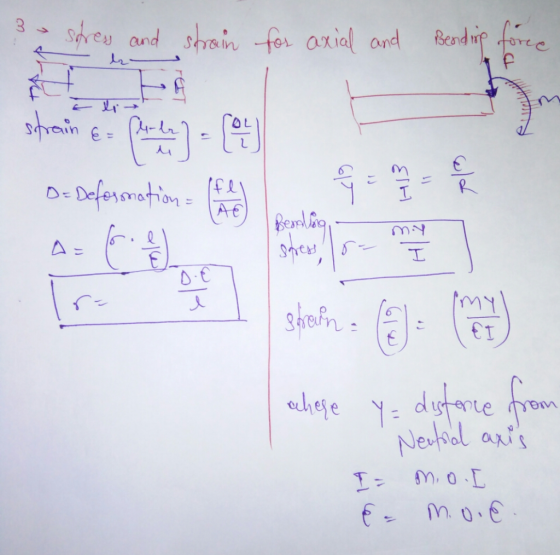

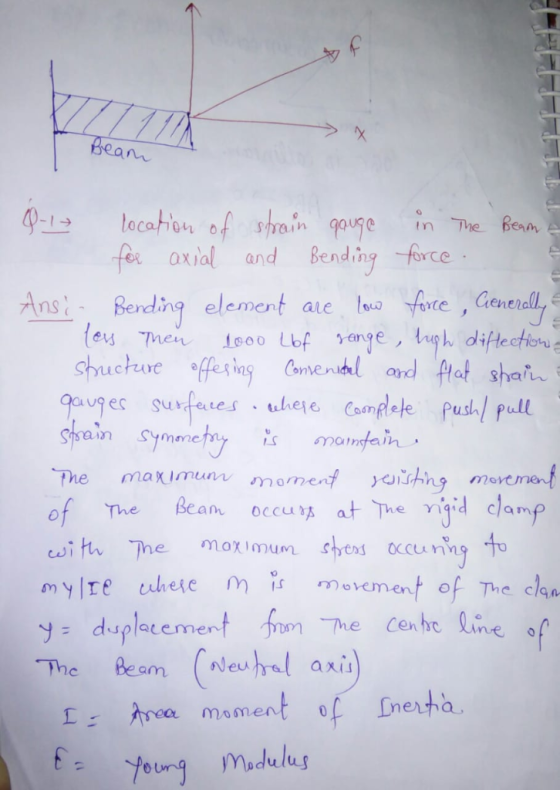

1- What are locations of strain gauges in the beam for axial and bending forces ?

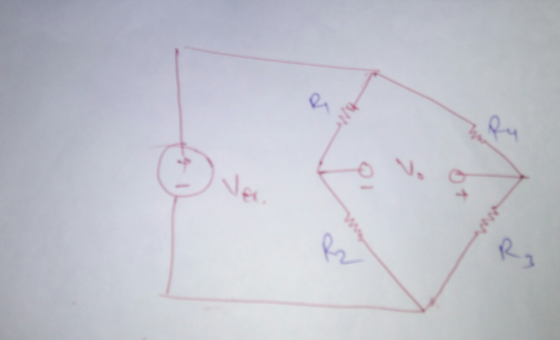

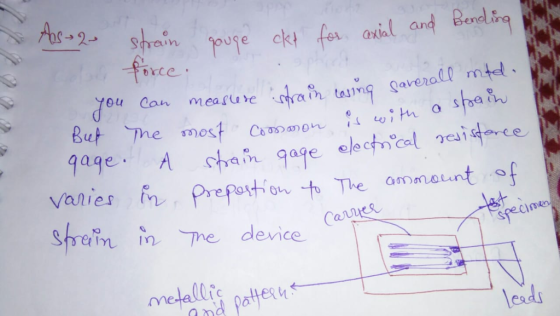

2- What are strain gauge circuits for axial and bending forces ?
3- What are stress and strain equations for both forces.
Homework Answers
Add Answer to:
Strain gauge with combined forces (axial and bending forces). Questions : 1- What are locations o...
Problem 4. An axial strain gauge and a transverse strain gauge are mounted to the top...
Problem 4. An axial strain gauge and a transverse strain gauge are mounted to the top surface of a steel beam that experiences a uniaxial stress of 2222 psi. The gauges are connected to arms1 and 2 of a Wheatstone bridge. With a purely axial load applied, determine the bridge constant for the measurement system. If SE 250 uV and E, -10 V, estimate the average gauge factor of the strain gauges. For this material, Poisson's ratio is 0.3 and...
A 120 ? strain gauge with a gauge factor of 2 is mounted on a beam...
A 120 Ω strain gauge with a gauge factor of 2 is mounted on a beam and connected in a Wheatstone bridge as shown in Figure Q1a. The bridge is powered by a 12 V DC supply in series with a 510 Ω resistance. The beam is subject to a tensile force, which produces an axial strain of 940 microstrain measured by the strain gauge .a) Under no strain, calculate the current in the strain gauge and the power dissipated by the...
3. Two different types of strain gauges with a nominal resistance of 120 2 are both...
3. Two different types of strain gauges with a nominal resistance of 120 2 are both used to measure an axial strain in Figure 3. They are connected to a Wheatstone bridge (the lead wire effect is negligible) at R1 and R3 R3 is a nickel wire strain gauge with a gauge factor -12.1 and R1 is a nicrome wire strain gauge with a gauge factor 2.1. The bridge has a supply voltage of 4.5V and two fixed resistors R2...
[13) A beam bending experiment was conducted in our laboratory, as shown in the following igure...
[13) A beam bending experiment was conducted in our laboratory, as shown in the following igure (left). Nine strain gauges were installed on the select locations as shown in the close-up figure (right), namely, Gauges 1-9. Which of the following statements is INCORRECT?_ A) The lending normal strain is linearly distributed acros Games iM The bending normal stress is linearly distributed across Gauges 1-9 D) Largsst bending normal stress among all gauges should occur at Gauge 9. [14] The Largest...
By deatiles please! Q1. The figure shown below is extracted from bending stress in a beam experiment where an inverted Aluminum (E 69 GPa) T-section is subjected to two point-Loads (each 1/2W). The...
By deatiles please!
Q1. The figure shown below is extracted from bending stress in a beam experiment where an inverted Aluminum (E 69 GPa) T-section is subjected to two point-Loads (each 1/2W). The strain across the depth of the cross section is measured using strain gauges which are sensors that experience a change in electrical resistance when stretched or compressed. Connections to digital strain display Beam Loading frame Pin support -Retaining pin Strain gauges Locating hole for STRBA load cel...
Figure 3 shows a schematic arrangement of an in-line tension meter, commonly used to sense the te...
PART B pls ty
Figure 3 shows a schematic arrangement of an in-line tension meter, commonly used to sense the tension T across a cable. The cable is routed through three pulleys (P1, P2 and Ps). As shown in Figure 3, only one of the pulleys (P2) is attached to the free end of a cantilever beam, sensorized with a set of four strain gauges in a full Wheatstone electrical configuration. The other two pulleys (P and P3) are 2...
Four strain gauges are mounted on a cantilever beam in a configuration like that shown in Error! Reference source not f...
Four strain gauges are mounted on a cantilever beam in a configuration like that shown in Error! Reference source not found. 6. It is used to measure vibrational bending moment that is applied to the beam itself. The specifications of the load cell are given as follows .Modulus of Elasticity: E-120 GPa · Beam dimensions (Length × Height (h) × Width (b)): 25cm × 0.75cm × 2.5cm .Non-deflected resistances of the strain gauges-3002 Strain gauge factor-3 .Wheatstone bridge voltage supply...
5. (20 points) We use strain gauge to create a fish weight scale. The strain gauges are mounted on a plastic tube with fish hanging on to it. The strain gauges have resistance R 2400 2 (unstrained...
5. (20 points) We use strain gauge to create a fish weight scale. The strain gauges are mounted on a plastic tube with fish hanging on to it. The strain gauges have resistance R 2400 2 (unstrained) and the GF 2.14. A (1) Which is the dummy gauge, A or B? Circle the dummy gauge. (2) Show how to wire the two gauges and two fixed 2400 Ω resistors into the bridge circuit to provide temperature compensation, using the graphs...
a solid circular shaft of radius a is subjected to the combined axial load P, bending moment M, and torsional moment T shown. Assume that M = Pa/2 and T = Pa/2. The axial load is constant while the m...
a solid circular shaft of radius a is subjected to the
combined axial load P, bending moment M, and torsional moment T
shown. Assume that M = Pa/2 and T = Pa/2. The axial load is
constant while the moments M and T are completely reversed cyclic
(recall, completely reversed cyclic means having the same amplitude
in positive and negative sense in a cycle). The material of the
shaft has the yield stress of 300 MPa and endurance limit of...
As shown below (Fig.1), A strain gage with gage factor of 2.02 is mounted on the bottom of a beam...
As shown below (Fig.1), A strain gage with gage factor of 2.02 is mounted on the bottom of a beam to measure the strain on the surface of the beam. The beam's Young's Modulus is 193 GPa. A wheatstone bridge circuit was constructed as sketched in Fig. 2. Al resistors including the gage itself is 1202. Supply voltage is 5.0 V DC. The bridge is initially balanced when there is no load (a). when a downward load is added, will...
Problem 4. An axial strain gauge and a transverse strain gauge are mounted to the top surface of a steel beam that experiences a uniaxial stress of 2222 psi. The gauges are connected to arms1 and 2 of a Wheatstone bridge. With a purely axial load applied, determine the bridge constant for the measurement system. If SE 250 uV and E, -10 V, estimate the average gauge factor of the strain gauges. For this material, Poisson's ratio is 0.3 and...
A 120 Ω strain gauge with a gauge factor of 2 is mounted on a beam and connected in a Wheatstone bridge as shown in Figure Q1a. The bridge is powered by a 12 V DC supply in series with a 510 Ω resistance. The beam is subject to a tensile force, which produces an axial strain of 940 microstrain measured by the strain gauge .a) Under no strain, calculate the current in the strain gauge and the power dissipated by the...
3. Two different types of strain gauges with a nominal resistance of 120 2 are both used to measure an axial strain in Figure 3. They are connected to a Wheatstone bridge (the lead wire effect is negligible) at R1 and R3 R3 is a nickel wire strain gauge with a gauge factor -12.1 and R1 is a nicrome wire strain gauge with a gauge factor 2.1. The bridge has a supply voltage of 4.5V and two fixed resistors R2...
[13) A beam bending experiment was conducted in our laboratory, as shown in the following igure (left). Nine strain gauges were installed on the select locations as shown in the close-up figure (right), namely, Gauges 1-9. Which of the following statements is INCORRECT?_ A) The lending normal strain is linearly distributed acros Games iM The bending normal stress is linearly distributed across Gauges 1-9 D) Largsst bending normal stress among all gauges should occur at Gauge 9. [14] The Largest...
By deatiles please!
Q1. The figure shown below is extracted from bending stress in a beam experiment where an inverted Aluminum (E 69 GPa) T-section is subjected to two point-Loads (each 1/2W). The strain across the depth of the cross section is measured using strain gauges which are sensors that experience a change in electrical resistance when stretched or compressed. Connections to digital strain display Beam Loading frame Pin support -Retaining pin Strain gauges Locating hole for STRBA load cel...
PART B pls ty
Figure 3 shows a schematic arrangement of an in-line tension meter, commonly used to sense the tension T across a cable. The cable is routed through three pulleys (P1, P2 and Ps). As shown in Figure 3, only one of the pulleys (P2) is attached to the free end of a cantilever beam, sensorized with a set of four strain gauges in a full Wheatstone electrical configuration. The other two pulleys (P and P3) are 2...
Four strain gauges are mounted on a cantilever beam in a configuration like that shown in Error! Reference source not found. 6. It is used to measure vibrational bending moment that is applied to the beam itself. The specifications of the load cell are given as follows .Modulus of Elasticity: E-120 GPa · Beam dimensions (Length × Height (h) × Width (b)): 25cm × 0.75cm × 2.5cm .Non-deflected resistances of the strain gauges-3002 Strain gauge factor-3 .Wheatstone bridge voltage supply...
5. (20 points) We use strain gauge to create a fish weight scale. The strain gauges are mounted on a plastic tube with fish hanging on to it. The strain gauges have resistance R 2400 2 (unstrained) and the GF 2.14. A (1) Which is the dummy gauge, A or B? Circle the dummy gauge. (2) Show how to wire the two gauges and two fixed 2400 Ω resistors into the bridge circuit to provide temperature compensation, using the graphs...
a solid circular shaft of radius a is subjected to the
combined axial load P, bending moment M, and torsional moment T
shown. Assume that M = Pa/2 and T = Pa/2. The axial load is
constant while the moments M and T are completely reversed cyclic
(recall, completely reversed cyclic means having the same amplitude
in positive and negative sense in a cycle). The material of the
shaft has the yield stress of 300 MPa and endurance limit of...
As shown below (Fig.1), A strain gage with gage factor of 2.02 is mounted on the bottom of a beam to measure the strain on the surface of the beam. The beam's Young's Modulus is 193 GPa. A wheatstone bridge circuit was constructed as sketched in Fig. 2. Al resistors including the gage itself is 1202. Supply voltage is 5.0 V DC. The bridge is initially balanced when there is no load (a). when a downward load is added, will...
