Consider the symmetric MOS differential amplifier given below, where RD 3.0k2, kn (W/L) 4mA/V2, Iss 0.4mA, and the threshold0.7V 1.8V 2.3 V 2.4V 2.9 V

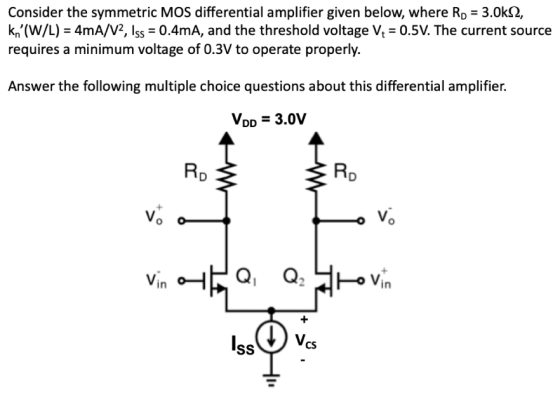

Consider the symmetric MOS differential amplifier given below, where RD 3.0k2, kn (W/L) 4mA/V2, Iss 0.4mA, and the threshold voltage V 0.5V. The current source requires a minimum voltage of 0.3V to operate properly. Answer the following multiple choice questions about this differential amplifier. Vo = 3.0V RD in CS

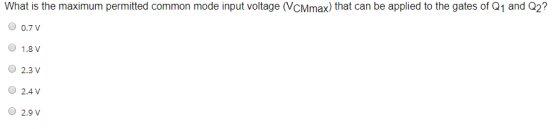

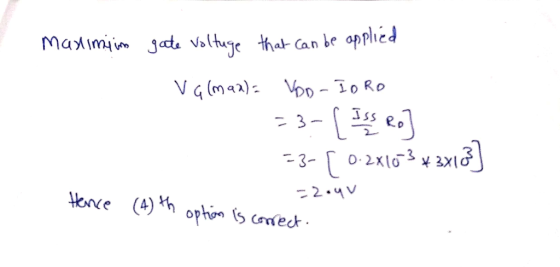

0.7V 1.8V 2.3 V 2.4V 2.9 V
