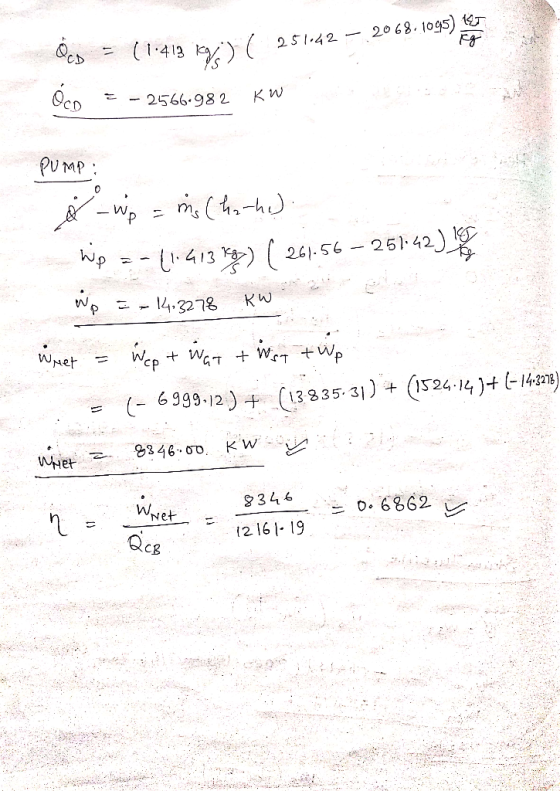

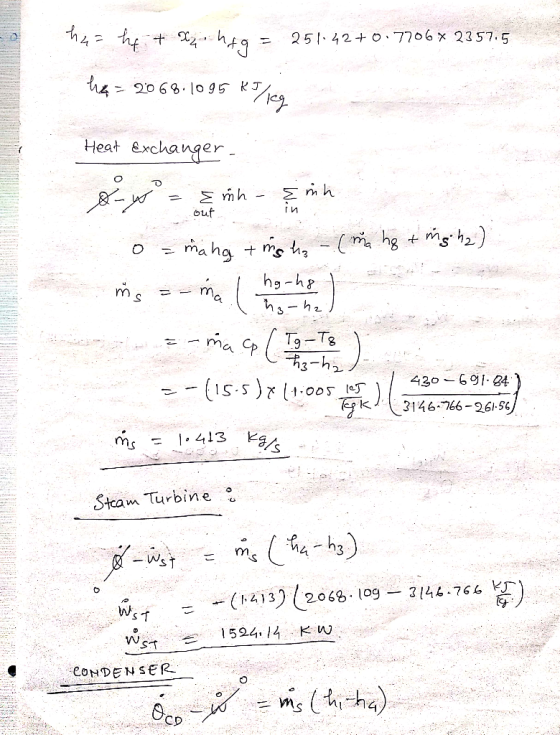

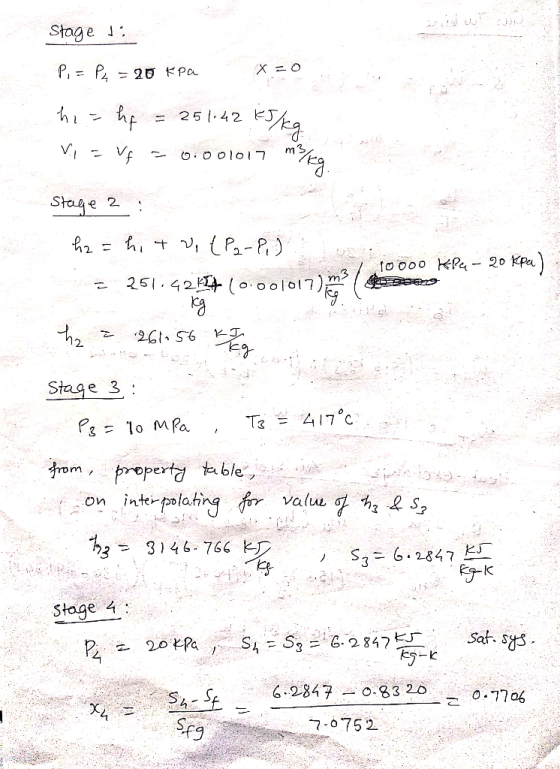

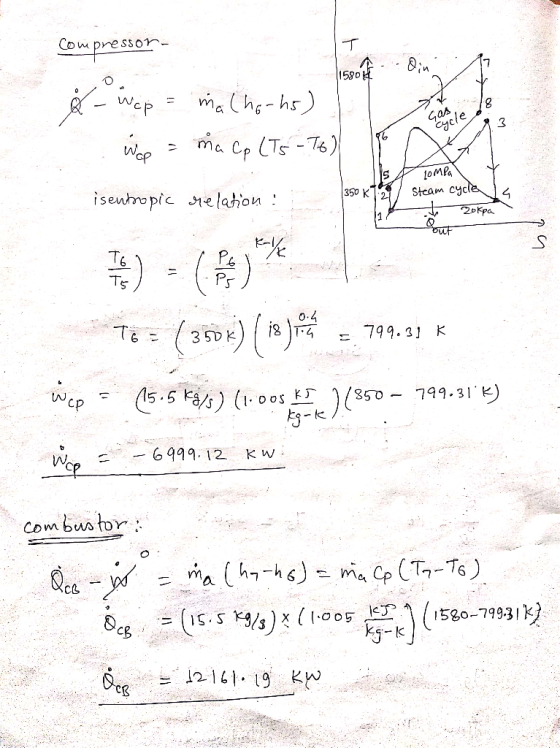

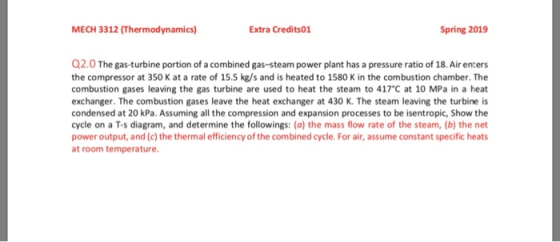

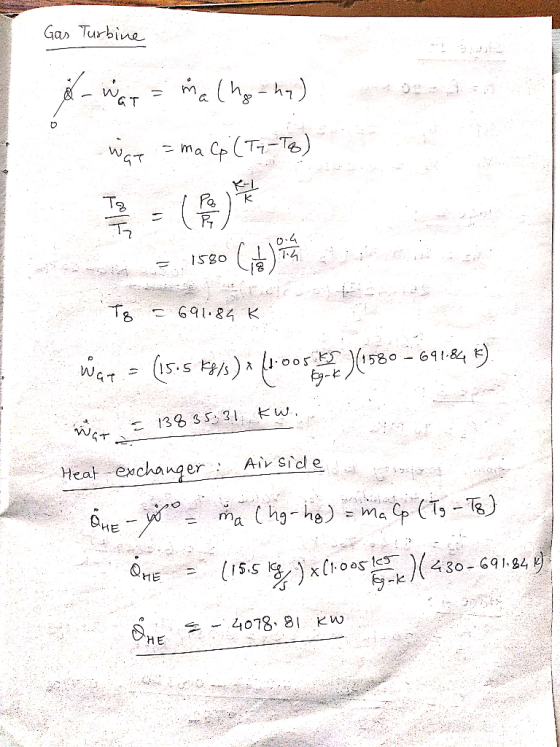

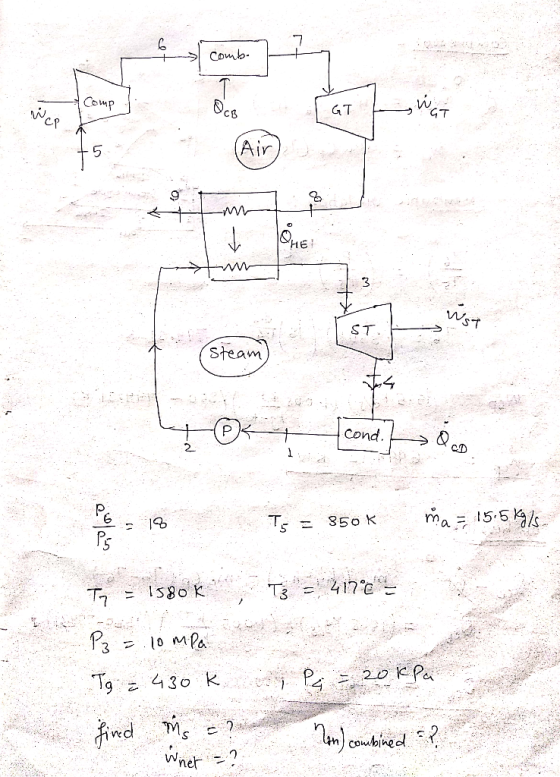

MECH 3312 (Thermodynamics) Extra Credits01 Spring 2019 Q2.0 The gas-turbine portion of a combined...
Problem 2/2 (50%) -The gas-turbine cycle of a combined gas-steam power plant has a pressure ratio...
Problem 2/2 (50%) -The gas-turbine cycle of a combined gas-steam power plant has a pressure ratio of 12. Air enters the compressor at 310 K and the turbine at 1400 K. The combustion gases leaving the gas turbine are used to heat the steam at 12.5 MPa to 500 C in a heat exchanger. The combustion gases leave the heat exchanger at 247"C. Steam expands in a high pressure turbine to a pressure of 2.5 MPa and is reheated in...
A combined gas–steam power plant has been designed with a net power output of 450 MW....
A combined gas–steam power plant has been designed with a net power output of 450 MW. The pressure ratio of the gas-turbine cycle is 14. Air enters the compressor at 300 K and the turbine at 1400 K. The combustion gases leaving the gas turbine are used to heat the steam at 8 MPa to 400 C in a heat exchanger. The combustion gases leave the heat exchanger at 460 K. An open feedwater heater incorporated with the steam cycle...
Problem 1 0/5 points (0%) Consider a combined gas-steam power plant that has a net power...
Problem 1 0/5 points (0%) Consider a combined gas-steam power plant that has a net power output of 500 MW. The pressure ratio of the gas-turbine cycle is 12. Air enters the compressor at 308 K and the turbine at 1300 K. The combustion gases leaving the gas turbine are used to heat the steam at 9 MPa to 360°C in a heat exchanger. The combustion gases leave the heat exchanger at 460 K. An open feedwater heater incorporated with...
1. A combined gas-steam power cycle uses a single gas turbine cycle for the air cycle...
1. A combined gas-steam power cycle uses a single gas turbine
cycle for the air cycle and a simple Rankine cycle for the water
vapor cycle. Atmospheric air enters the compressor at a rate of
88.2 lbm / s, at 14.7 psia and 59 ° F, and the maximum gas cycle
temperature is 1,742 ° F. The pressure ratio in the compressor is
7. The isentropic efficiency of both the compressor and the turbine
is 80%. Gas exits the heat...
Consider the combined gas-steam power cycle,The topping cycle is a gas-turbine cycle that has a pressure ratio of 8.Air enters the compressor at 300K and the turbine at 1300K.The isentropic efficiency...
Consider the combined gas-steam power cycle,The topping cycle is a gas-turbine cycle that has a pressure ratio of 8.Air enters the compressor at 300K and the turbine at 1300K.The isentropic efficiency of the compressor is 80 percent, and that of the gas is 85 percent.The bottoming cycle is a simple ideal Rankine cycle operating between the pressures limits of 7 MPa and 5 KPa.Steam is heated in a heat exchanger by the exahust gases to a temperature of 5000C.The exhaust...
The gas turbine cycle of a gas-steam combined cycle power plant has a pressure ratio of...
The gas turbine cycle of a gas-steam combined cycle power plant has a pressure ratio of 12. The air enters the compressor at 310 K and 100 kPa (1) and the turbine at 1400 K (3). The combustion gases leaving the gas turbine (4) are used to heat the steam to 12.5 MPa up to 500 °C (6) in a heat exchanger. The flue gas exits the heat exchanger (5) at 247 °C. The steam is expanded in a high...
2. Consider a combined gas steam power cycle. The gas cycle is a simple Brayton cycle...
2. Consider a combined gas steam power cycle. The gas cycle is a
simple Brayton cycle that has a pressure ratio of 7. Air enters at
9.8 kg / s at the compressor at 15 ° C and 100 kPa, and at the gas
turbine at 950 ° C. The steam cycle is a Rankine cycle with
overheating between the pressure limits of 6 MPa and 10 kPa. The
water vapor is heated in the heat exchanger at a rate...
Problem4 (a) (40 points) A combined gas-steam powe cycles. The ideal Brayton and Rankine plant operates on Rankine cycle has a reheater. The Brayton cycle operates on a gas- of the gas-turbine c...
Problem4 (a) (40 points) A combined gas-steam powe cycles. The ideal Brayton and Rankine plant operates on Rankine cycle has a reheater. The Brayton cycle operates on a gas- of the gas-turbine cycle 1400 K The 15MPa to ercooling, reheating, and regeneration cycle. The pressure ratio 300 K for compressor stages is do Air enters compressors a combustion gases leaving the lower pressure gas turbine are used to heat the steam at C in a heat exchanger. The combustion gases...
A combined cycle power plant has a net power output of 272 MW. Air enters the...
A combined cycle power plant has a net power output of 272 MW. Air enters the compressor of the Brayton cycle at 100 kPa and 17oC. The pressure ratio is 19, the turbine inlet temperature is 1660 K and the gases leaving the turbine are used to heat the steam of the Rankine cycle to 600oC and 5 MPa. The combustion gas leaves the heat exchanger (HRSG) at 390 K and the condenser pressure is 20 kPa. The isentropic efficiency...
NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to...
NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. The gas-turbine cycle of a combined gas-steam power plant has a pressure ratio of 8. Air enters the compressor at 290 K and the turbine at 1400 K. The combustion gases leaving the gas turbine are used to heat the steam at 15 MPa to 450°C in a heat exchanger. The combustion gases leave the heat exchanger at 247°C. Steam...
Problem 2/2 (50%) -The gas-turbine cycle of a combined gas-steam power plant has a pressure ratio of 12. Air enters the compressor at 310 K and the turbine at 1400 K. The combustion gases leaving the gas turbine are used to heat the steam at 12.5 MPa to 500 C in a heat exchanger. The combustion gases leave the heat exchanger at 247"C. Steam expands in a high pressure turbine to a pressure of 2.5 MPa and is reheated in...
Problem 1 0/5 points (0%) Consider a combined gas-steam power plant that has a net power output of 500 MW. The pressure ratio of the gas-turbine cycle is 12. Air enters the compressor at 308 K and the turbine at 1300 K. The combustion gases leaving the gas turbine are used to heat the steam at 9 MPa to 360°C in a heat exchanger. The combustion gases leave the heat exchanger at 460 K. An open feedwater heater incorporated with...
1. A combined gas-steam power cycle uses a single gas turbine
cycle for the air cycle and a simple Rankine cycle for the water
vapor cycle. Atmospheric air enters the compressor at a rate of
88.2 lbm / s, at 14.7 psia and 59 ° F, and the maximum gas cycle
temperature is 1,742 ° F. The pressure ratio in the compressor is
7. The isentropic efficiency of both the compressor and the turbine
is 80%. Gas exits the heat...
2. Consider a combined gas steam power cycle. The gas cycle is a
simple Brayton cycle that has a pressure ratio of 7. Air enters at
9.8 kg / s at the compressor at 15 ° C and 100 kPa, and at the gas
turbine at 950 ° C. The steam cycle is a Rankine cycle with
overheating between the pressure limits of 6 MPa and 10 kPa. The
water vapor is heated in the heat exchanger at a rate...
Problem4 (a) (40 points) A combined gas-steam powe cycles. The ideal Brayton and Rankine plant operates on Rankine cycle has a reheater. The Brayton cycle operates on a gas- of the gas-turbine cycle 1400 K The 15MPa to ercooling, reheating, and regeneration cycle. The pressure ratio 300 K for compressor stages is do Air enters compressors a combustion gases leaving the lower pressure gas turbine are used to heat the steam at C in a heat exchanger. The combustion gases...
NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. The gas-turbine cycle of a combined gas-steam power plant has a pressure ratio of 8. Air enters the compressor at 290 K and the turbine at 1400 K. The combustion gases leaving the gas turbine are used to heat the steam at 15 MPa to 450°C in a heat exchanger. The combustion gases leave the heat exchanger at 247°C. Steam...
