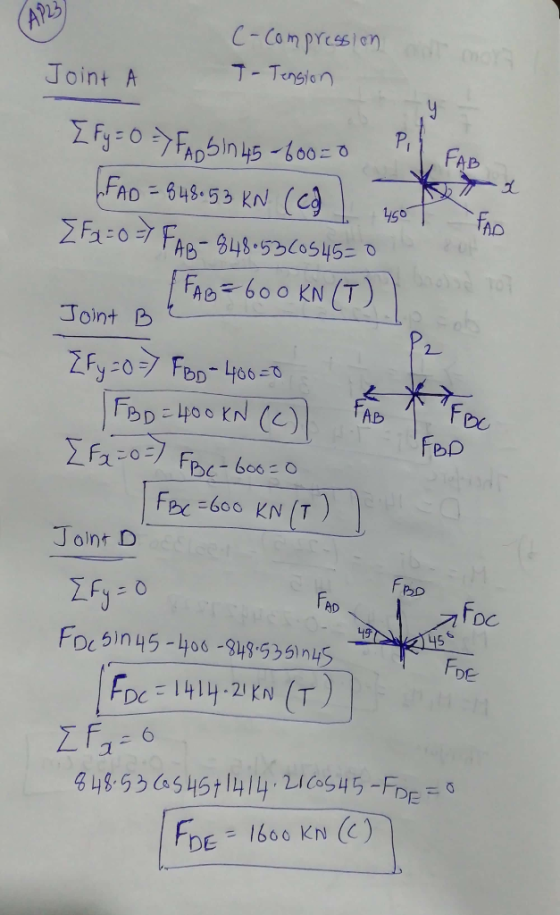

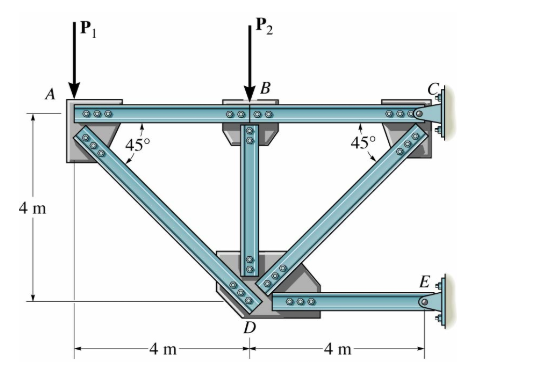

Calculate the internal forces in each member of the truss shown below, and indicate if they are in tension (T) or compression (C). P1 = 600 kN and P2 = 400
Homework Answers
Add Answer to:
Calculate the internal forces in each member of the truss shown below, and indicate if they are i...
2) Calculate the internal forces in each member of the truss shown below, and indicate if they ar...
2) Calculate the internal forces in each member of the truss shown below, and indicate if they are in tension (T) or compression (C). P1 4 kN and P2 4 kN 30° 3 m Im P2
2) Calculate the internal forces in each member of the truss shown below, and indicate if they are in tension (T) or compression (C). P1 4 kN and P2 4 kN 30° 3 m Im P2
6.10 reactions and all internal forces 3m 6.9 and 6.10 Determine the force in each member...
6.10
reactions and all internal forces
3m 6.9 and 6.10 Determine the force in each member of the truss shown. State whether each member is in tension (1) or compression (C). A 12.5 kN 12.5 kN 12.5 kN 12.5 KN 8 KN Fig. P6.9 2.5 m Fig. P6.10 6.11 Determine the force in each member of the Gambrel roof truss shown. State whether each member is in tension (T) or compression (C). 600 lb 600 lb 600 lb 2 ft...
4. TRUSS Determine the force in each member of the truss shown below. Also, state whether...
4. TRUSS Determine the force in each member of the truss shown below. Also, state whether each member is in tension or compression. There is a pin at A and a rocker at C. 45 KN 35 kN 12 m ....... 10 m -........................... 10 m -.......... 20 KN
P1 4) Determine the force in each member of the truss and state if the members...
P1 4) Determine the force in each member of the truss and state if the members are in tension or compression. Set P, = 45 kN, P2 = 30 kN. B 1.5 m P2 D 2 m
determine the forces in each member of the truss shown and state if the members in...
determine the forces in each member of the truss shown
and state if the members in tension or compression
grade to Business ss shown and state if the 3 m O kN
Find the internal forces for the truss shown below in member BF D 4 M EL...
Find the internal forces for the truss shown below in member BF D 4 M EL F 4 m 30KN - Select one: O a. 21.21 kN (T) b.21.21 KN (C) c. 15 kN (0) d. 15 kN (T) e. None of the above
For the truss shown below, if P1 = 78 N, P2 = 86 N, and P3...
For the truss shown below, if P1 = 78 N, P2 = 86 N, and P3 = 95 N, and if d = 8 m, calculate the force on member FC (positive for compression, negative for tension). For the truss shown below, if P1 = 66 N. P2 = 69 N and P3 = 76 N, and for d = 6 m, calculate the force in member FB. (Use positive numbers for compression forces, and negative numbers for tensile forces)...
Determine the force in each member of the truss shown below. State whether each member is...
Determine the force in each member of the truss shown below. State whether each member is in tension or compression. 4. 4 m 3 kN 3 kN I k-3
4- For the pin-jointed truss structure shown below, show that the truss is statically determinate...
4- For the pin-jointed truss structure shown below, show that the truss is statically determinate then calculate the internal member forces in member CD and AB. State whether the members are in tension or compression. 3 m 3m 60kN 3m
4- For the pin-jointed truss structure shown below, show that the truss is statically determinate then calculate the internal member forces in member CD and AB. State whether the members are in tension or compression. 3 m 3m 60kN 3m
A truss is loaded as shown in the figure. a.) compute the forces in member GD...
A
truss is loaded as shown in the figure.
a.) compute the forces in member GD given that P=300kN and
Q=50kN
b.) If Pcd=600 kNand Pgd= 100kN (both compression), find
P
c.) If Pcd=600 kNand Pgd= 100kN (both compression), find
Q
SIT. A: A truss is loaded as shown in the figure. -2 m -2 m- E H А 3 m B 3 m 3 m D 1. 2. Compute the forces in member GD given that P = 300...
2) Calculate the internal forces in each member of the truss shown below, and indicate if they are in tension (T) or compression (C). P1 4 kN and P2 4 kN 30° 3 m Im P2
2) Calculate the internal forces in each member of the truss shown below, and indicate if they are in tension (T) or compression (C). P1 4 kN and P2 4 kN 30° 3 m Im P2
6.10
reactions and all internal forces
3m 6.9 and 6.10 Determine the force in each member of the truss shown. State whether each member is in tension (1) or compression (C). A 12.5 kN 12.5 kN 12.5 kN 12.5 KN 8 KN Fig. P6.9 2.5 m Fig. P6.10 6.11 Determine the force in each member of the Gambrel roof truss shown. State whether each member is in tension (T) or compression (C). 600 lb 600 lb 600 lb 2 ft...
4. TRUSS Determine the force in each member of the truss shown below. Also, state whether each member is in tension or compression. There is a pin at A and a rocker at C. 45 KN 35 kN 12 m ....... 10 m -........................... 10 m -.......... 20 KN
P1 4) Determine the force in each member of the truss and state if the members are in tension or compression. Set P, = 45 kN, P2 = 30 kN. B 1.5 m P2 D 2 m
determine the forces in each member of the truss shown
and state if the members in tension or compression
grade to Business ss shown and state if the 3 m O kN
Find the internal forces for the truss shown below in member BF D 4 M EL F 4 m 30KN - Select one: O a. 21.21 kN (T) b.21.21 KN (C) c. 15 kN (0) d. 15 kN (T) e. None of the above
For the truss shown below, if P1 = 78 N, P2 = 86 N, and P3 = 95 N, and if d = 8 m, calculate the force on member FC (positive for compression, negative for tension). For the truss shown below, if P1 = 66 N. P2 = 69 N and P3 = 76 N, and for d = 6 m, calculate the force in member FB. (Use positive numbers for compression forces, and negative numbers for tensile forces)...
Determine the force in each member of the truss shown below. State whether each member is in tension or compression. 4. 4 m 3 kN 3 kN I k-3
4- For the pin-jointed truss structure shown below, show that the truss is statically determinate then calculate the internal member forces in member CD and AB. State whether the members are in tension or compression. 3 m 3m 60kN 3m
4- For the pin-jointed truss structure shown below, show that the truss is statically determinate then calculate the internal member forces in member CD and AB. State whether the members are in tension or compression. 3 m 3m 60kN 3m
A
truss is loaded as shown in the figure.
a.) compute the forces in member GD given that P=300kN and
Q=50kN
b.) If Pcd=600 kNand Pgd= 100kN (both compression), find
P
c.) If Pcd=600 kNand Pgd= 100kN (both compression), find
Q
SIT. A: A truss is loaded as shown in the figure. -2 m -2 m- E H А 3 m B 3 m 3 m D 1. 2. Compute the forces in member GD given that P = 300...
