. For each figure, determine: a. b. The coordinates of the centroid of the area in the figure bel...

Question

Question

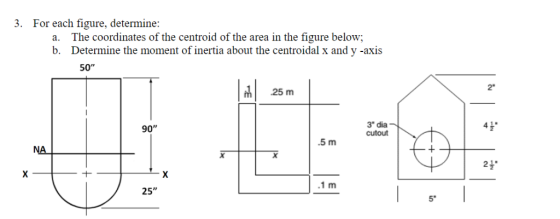

. For each figure, determine: a. b. The coordinates of the centroid of the area in the figure below; Determine the moment of

science Advanced-Physics

Answer 1

Answer #1

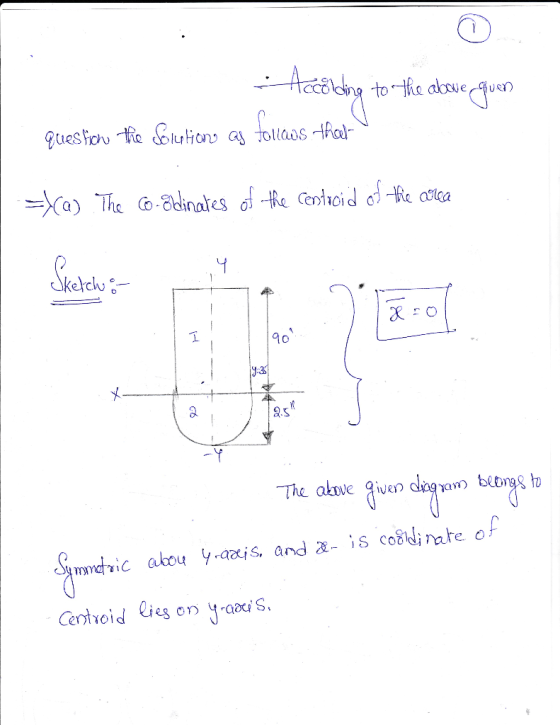

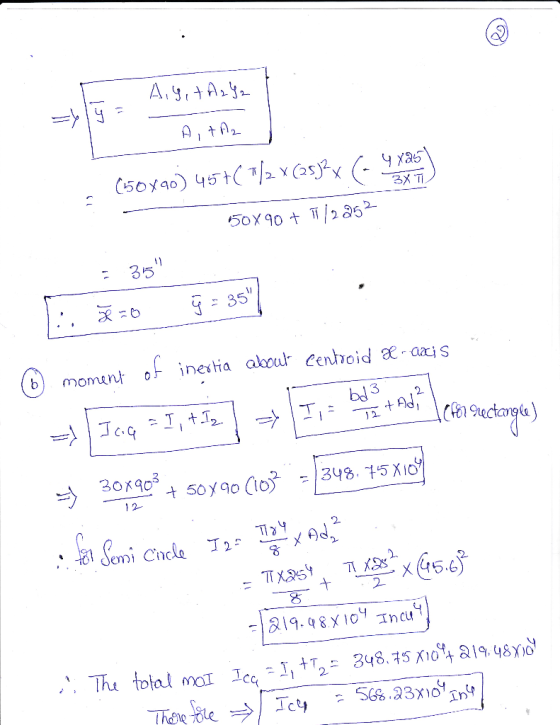

keJeん。 9 0 ic ab y and isco rate of - 35 35 moment f inetta akeu- cenhoid ae - ati s bd 3 2 メ月d 219.80 Incu

Answer 2

Similar Homework Help Questions

For each figure, determine: The coordinates of the centroid of the area in the figure below; ...

For each figure, determine: The coordinates of the centroid of the area in the figure below; b.Determine the moment of inertia about the centroidal x and y ‐axis 3. For each figure, determine: a. b. The coordinates of the centroid of the area in the figure below; Determine the moment of inertia about the centroidal x and y -axis 50" 2* m25 m 3" dia 5 m cutou 90" NA 21 1 m 25" 5* 3. For each figure, determine:...
Problem 3. (25 points total) Determine (a) The area A of the shaded region. (b) The...

Problem 3. (25 points total) Determine (a) The area A of the shaded region. (b) The x location of the centroid of the shaded area, which is called x. (Use an integral to confirm the value found by inspection from symmetry.) (C) The y location of the centroid of the shaded area, which is called y. (d) The moment of inertia, Ix, of the shaded area about the x axis. (e) The moment of inertia, ly, of the shaded area...
5 cm w1 What are the - and y-coordinates of the centroid of the area? (A)...

5 cm w1 What are the - and y-coordinates of the centroid of the area? (A) 24 cm: 34 cm (B) 3.0 cm: 3.6 cm (C) 3.0 cm: 3.8 cm (D) 3.0 cm: 4.0 cm 4 cm cm What is the arca moment of inertia about the t-axis? (A) 47 cm (B) 59 cm (C) 170 cm (D) 350 cm What is the centroidal moment of inertia with respect to the s-axis? (A) 39 cm (B) 58 cm (D) 200...

Question 1 25 pts The cross-section area shown in the figure is symmetric about the y-axis....

Question 1 25 pts The cross-section area shown in the figure is symmetric about the y-axis. When b = 24", determine (a) the coordinates of the centroid (x, y), and (b) the moment of inertial about the centroidal axis x! The centroidal axis x'is parallel to x- axis and crosses through (X,Y). Upload Choose a File
25 mm 25 mm Problem 2 Determine the distance y to the centroid of the beam's...

25 mm 25 mm Problem 2 Determine the distance y to the centroid of the beam's cross-sectional area; then determine the moment of inertia about the centroidal x' axis 100 mm 25 mm 75 mm- 一75 mm 50 mm 100 mm 25 mm
Determine the total area enclosed by the points A, B, C, and D as shown in the figure below [units]^2. The coordinates...

Determine the total area enclosed by the points A, B, C, and D as shown in the figure below [units]^2. The coordinates of D are not at the position shown but are at x 6, y = 4 5 4 3 2 1 X 0 2 3 5 Answer: Determine the second moment of area about the x-axis enclosed by the points A, B, C and D [units]^4 Answer: Determine the second moment of area about the y-axis enclosed by...

Determine the distance Y to the centroid of the beam's cross sectional area. Then, determine the...

Determine the distance Y to the centroid of the beam's cross sectional area. Then, determine the moment of inertia about the X' -axis. Put calculations in table form. 50 mm 75 mm 75 mm 50 mm 25 mm 100 mm 25 mm 25 mm
Question 2: For the shaded area shown in the figure a. Find the coordinates of the...

Question 2: For the shaded area shown in the figure a. Find the coordinates of the centroid. b. Calculate the moment of inertia about y-axis. Y to h/2 1m * -- h” h/2 2m Hole * X X 1m 2m 3m 2m 1m 3m 2h/3 t X bh 36 h/3 + X
For the shaded shape shown 1. Calculate the area of the shaded shape 2. Calculate the...

For the shaded shape shown 1. Calculate the area of the shaded shape 2. Calculate the location of the x-centroid of the shaded shape 3. Calculate the location of the y-centroid of the shaded shape 4. Calculate the moment of inertia of the shaded shape about the y centroidal axis 5. Calculate the moment of inertia of the shaded shape about the x centroidal axis 6. Calculate the moment of inertia about the x axis (along the bottom of the...

Part A Locate the centroid y of the composite area. Set a = 10 mm, b...

Part A Locate the centroid y of the composite area. Set a = 10 mm, b = 37 mm , d = 18 mm , h = 34 mm (Figure 1) Express your answer with the appropriate units. į = 25.368 mm Submit Previous Answers Request Answer Figure (< 1 of 1 > * Incorrect; Try Again; 5 attempts remaining Part B Determine the moment of inertia of this area about the centroidal x' axis. Express your answer with the...
