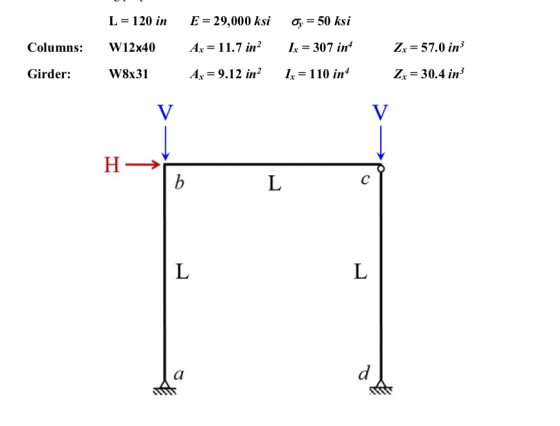

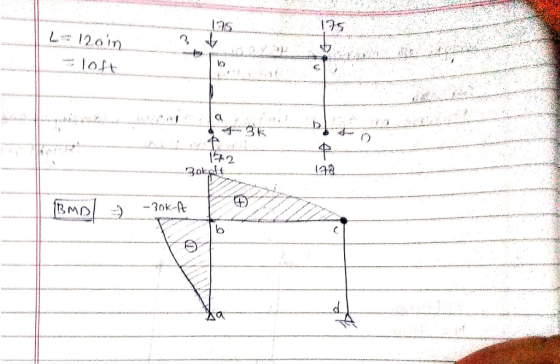

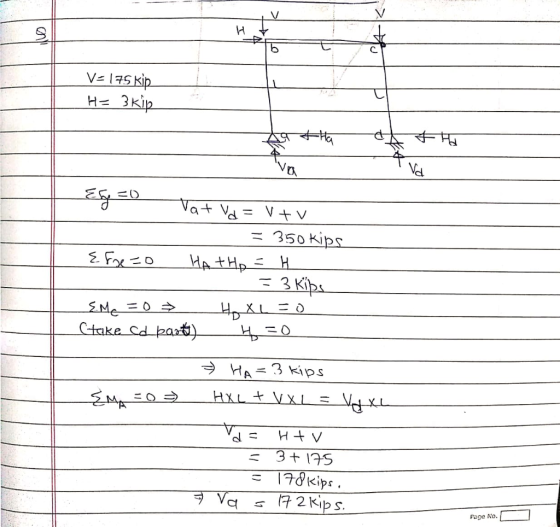

Using V = 175 kip and H = 3 kip, draw the bending moment diagram for the frame. To solve for the support reactions, use the force method on the statically indeterminate frame.
Homework Answers
Add Answer to:
Using V = 175 kip and H = 3 kip, draw the bending moment diagram for the frame. To solve for the ...
The frame below has wind load and dead as shown. Use w(Dead) = 6 kip/ft and...
The frame below has wind load and dead as shown. Use w(Dead) = 6
kip/ft and w(Live) = 3 kip/ft, L = 30 ft and H = 15 ft. The beams
and columns have modulus of elasticity E of 29000 ksi and moment of
inertias I(beam) = 2000 in4 and I(column) = 800
in4. Similarly they have cross-sectional areas A(beam) =
20 in2 and A(column) = 25 in2. Consider that
the wind can act in both horizontal directions.
Determine:
The...
Solve all problems using the finite element stiffness method. For the rigid frame shown in Figure P5-4, determine (1) the nodal displacements and rotation at node 4, (2) the reactions, and (3) the fo...
Solve all problems using the finite element stiffness method. For the rigid frame shown in Figure P5-4, determine (1) the nodal displacements and rotation at node 4, (2) the reactions, and (3) the forces in each element. Then check equilibrium at node 4 Finally, draw the shear force and bending moment diagrams for each element. Let E 30x 103 ksi, A 8 in2, and I 800 in.4 for all elements. 20 kip 25 ft 25 ft 40 ft Figure P5-4...
