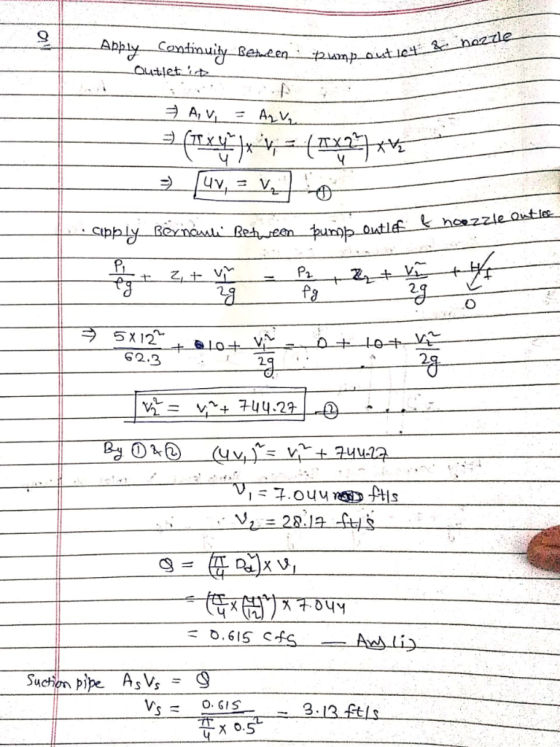

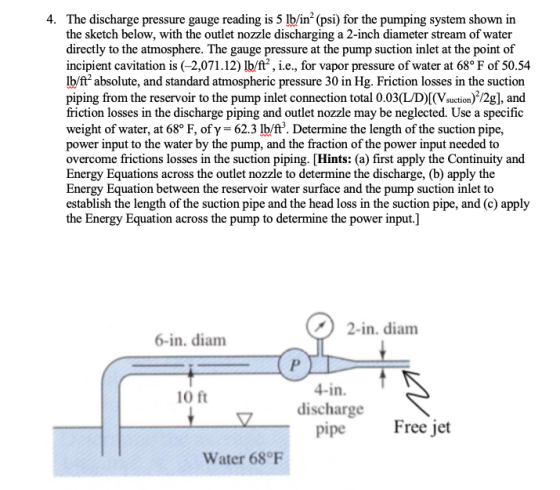

4. The discharge pressure gauge reading is 5 lb/in2 (psi) for the pumping system shown in the ske...
7.14 The pump in Fig. 7.20 delivers water from the lower to the upper reservoir at the rate of 0.057 m3/s. The energy loss between the suction pipe inlet and the pump is 1.83 m and that between the pump outlet and the upper reservoir is 3.66 m. Both pipes are 6-in Schedule 40 steel pipe. Calculate (a) the pressure at the pump inlet, (b) the pressure at the pump outlet, (c) the total head on the pump, and (d)...
Problem 4 The pumping system shown in the figure below to deliver 3 cfs of 60°F water. The total elevation difference between is 84 ft. The suction line is a 6-inch diameter, 300-ft long cast-iron pipe. The discharge line is 6-inch diameter in an 860-ft long plastic pipe. The suction inlet for the pump is 20 ft above the reservoir. The atmospheric pressure is 14.70 psia. The required NPSH is 7.0 ft. Minor losses include entrance: k, = 0.5, open...
3· T ump delive lvers water at 60F from the lower at a rate of 2.5 ft/s. The suction line is 12-ft gs shown and the discharge line has a e the long with fittings ength of 190-ft with fittings shown. Assume piping used is Schedule 40 steel pipe. Detc following: a) Suction line size (1 mark) /0aase returs b) Discharge line size (1 mark) c) NPSH,for the suction line (2 marks) d) Pressure at the pump inlet (2 marks)...
(Q1) The piping system shown here has a pump that delivers 10 hp to the fluid ant a flow rate of 55 gpm of water at 80 F. Neglecting other losses, (a) evaluate the friction losses in the 272 ft-long discharge pipe and in the 12 ft- long suction pipe. (b) Calculate the pressure (psig) on top of the discharge tank. ...(25 marks) an 7 1.5 in Schedule 80 pipe 220 2 in Schedule 80 pipe
In a power plant water supply pumping system, the reservoir is above the pump. Compute the net po sitive suction head (NPSH) available if the specific weight, gw of water is 61.0 lb/ft3, pressure in the t ank is -153.76 Torr, friction loss in the suction pipe is 5 ft. The vapor pressure of water is 10 Ft. The di stance between the center line of pump and the free level of the fluid source is 8 ft. Atmospheric pre...
Hydraulic Press 11.0ft Flow 10.0 ft 2.0ft 6 3.0 ft Filter Pump Flow The diagram on the next slide shows a fluid power system for a hydraulic press The following is known: The volume flow rate is 35 gpm. The hydraulic fluid has a specific gravity of 0.87 The power input to the pump is 20 hp. The pump efficiency is 80 percent. The filter has a resistance coefficient K-1.85 based on the velocity head in the suction line All...
The sketch shows a system used to spray polluted water into the air to increase the water's oxygen content and to cause volatile solvents in the 6. water to vaporize. The pressure at B of the nozzle must be 25 psig for proper nozzle performance. The pressure at point A (the pump inlet) is -3.5 psig. The volume flow rate is 0.5 ft3/s. The dynamic viscosity of the fluid is 4.0 x 10 Ib-s/ft?. The specific gravity of the fluid...
Mechanical Lab II. Please answer asap with clear work. Thank
you!
1. A centrifugal pump performance data are shown in the following table for water. Pump speed-2500 RPM Pa or P2 (bar) P. or Pi (bar) Volume of water(L Time (sec) Input-Power (W) -0.3 20 60 100 For this data set, calculate the following i. Pump discharge capacity Q (LUs and GPM) ii. Pump head H (m and ft) iii. Fluid power Pr (Watt) iv. Brake power Pb (Watt) v....
1. You are designing a pumping station and have been asked to size and select a pump from 2 models. The system step is as follows: the discharge line is a 21-inch diameter PVC pipe with an assumed constant friction factor of f 0.014. The length of the piping is 2300 ft with an elevation gain of 40 ft and an exit loss (K-1.0).. The pump station is located near sea level and the temperature of the flow stream is...
Problem #5 The figure below shows a submersible pump being used to circulate 60L/min of water based coolant (sg=0.95) to the cutter of a milling machine. The outlet is through a 3/4" Sch 40 steel pipe. Assuming a total energy loss due to the piping is 3.0 N.m/N, calculate the total head developed by the pump and the power delivered to the coolant. Milling machine Flow . C Problem 14 The pipeling shown takes water from a reservoir and terminates...
