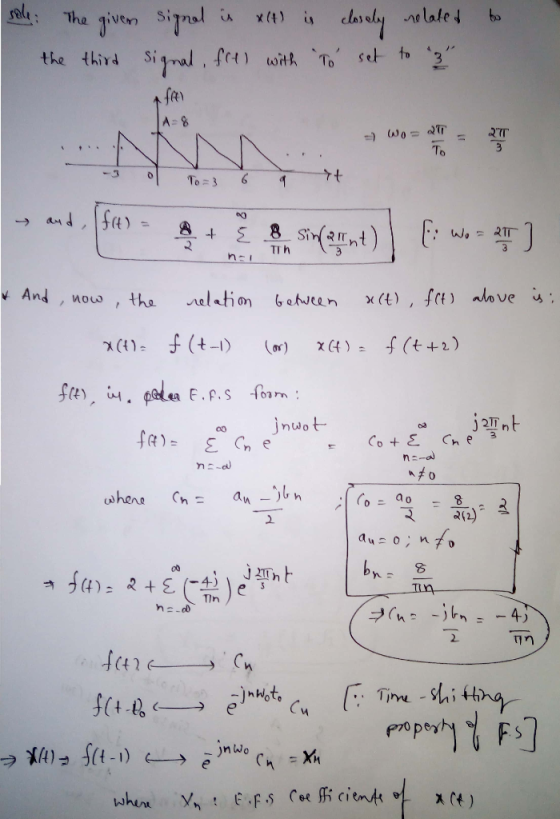

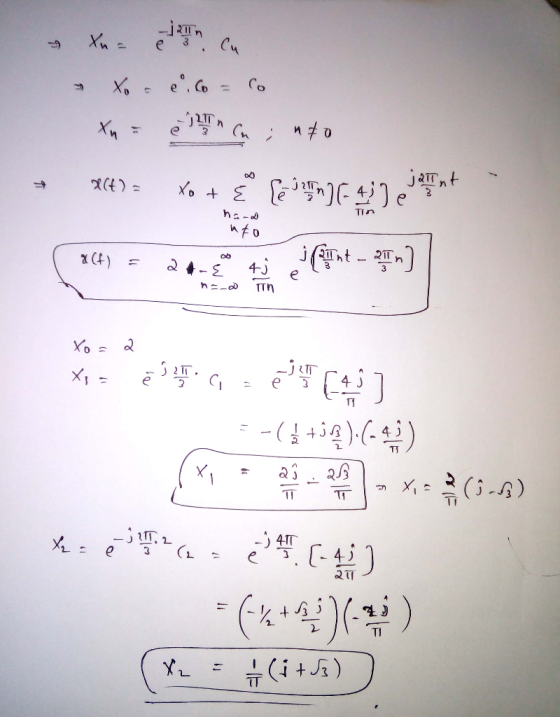

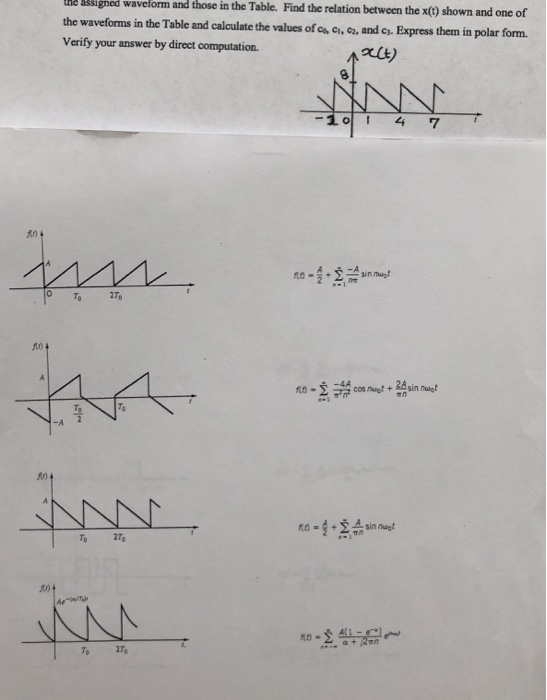

Waverorm and those in the Table. Find the relation between the x(t) shown and one of the waveform...
1. Find the ratio between the average and the rms value of the waveform shown in...
1. Find the ratio between the average and the rms value of the waveform shown in the figure below. v(t) (V) 6 in 12 3 t(ms) -2 2. Find the equivalent impedance looking from the source. Write in polar form. C2 2.2 ur L m 100 mH R 31.2 ks2 5 V 370 Hz C 1 uF
Parta): 1. Using the following table of relation between X & Y (Y is the independent...
Parta): 1. Using the following table of relation between X & Y (Y is the independent Variable): Xi0 234 36 7 8 9 | 11 55 28 5 20 30 a. Find the estimated regression equation Show ALL your calculations and the appropriate formula. WRITE Formula in all the questions below and substitute for the numbers, demonstrate your work. As you see, some cells are blank; you are to put your student ID digits on those cells b. Calculate R2...
Review Part A. Find the relationship between the phasor voltage and phasor current for a resistance...
Review Part A. Find the relationship between the phasor voltage and phasor current for a resistance The resistor shown here has been transformed into the phasor domain: Ik 4k Suppose that the phasor current is given by IR = 752120 mA. Find the phasor voltage VR. Enter a complex number in polar form, with phase angle in degrees. View Available Hint(s) 3002120 V Submit Previous Answers Correct Part B - Draw the phasor diagram of the resistance from Part A...
Constants Periodic Table Learning Goal: To understand the relation between the strength of an acid or...
Constants Periodic Table Learning Goal: To understand the relation between the strength of an acid or a base and its pK and pKb values Another way to express acid strength is by using pK: The degree to which a weak acid dissociates in solution is given by its acid-ionization constant, Ka For the generic weak acid, HA, pKa log K Another way to express base strength is by using pKb pK log K НА(аg) — А (аq) + н (аq)...
1- Signal m(t) is shown in Figure 1. This signal is used once to frequency modulate a carrier and once to phase modulate the same carrier. a) Find a relation between kp and k such that the maximu...
1- Signal m(t) is shown in Figure 1. This signal is used once to frequency modulate a carrier and once to phase modulate the same carrier. a) Find a relation between kp and k such that the maximum phase of the modulated signals in both cases are equal. b) If kp k 1, what is the maximum instantaneous frequency in each case? m(r) 0
1- Signal m(t) is shown in Figure 1. This signal is used once to frequency modulate...
5. Consider the the SEPIC converter shown in of Fig. 4 о, 01 Figure 4: Sepic...
5. Consider the the SEPIC converter shown in of Fig. 4 о, 01 Figure 4: Sepic Converter a) Sketch the diode current waveform for CCM operation. Find its peak value, in terms of the ripple magnitudes ΔΙ.and Δ1L2 and the dc components li and 12 of the two inductor currents Ii(t) and I2(t) respectively b) Derive an expression for the conditions under which the SEPIC operates in the discontinuous conduction mode. Express your result in the form K< Keni(D) and...
Problem 4 Suppose that the interface between two different linear media is the yz plane. A...
Problem 4 Suppose that the interface between two different linear media is the yz plane. A monochromatic plane wave of frequency w, traveling in the positive x direction and polarized in the y direction, approaches the interface from left as shown in the figure, where &;(x,t) = Ēo, ei(kıx-wt) û This situation is shown in the following figure (Note that the positive z axis is out of the page) x Ě (x,t) = Egel(kix-wty €1,M1 E2, M2 Using the given...
One of the most important classes of time dependent signals are periodic signals. Periodic signals satisfy tho following signal equations, x(t) X(t) x(t+nt) for n 2,3. The periodic signals to b...
One of the most important classes of time dependent signals are periodic signals. Periodic signals satisfy tho following signal equations, x(t) X(t) x(t+nt) for n 2,3. The periodic signals to be observed in this laboratory assignment are shown below. In all the examples A represents the amplitude of the signal and may be given as the measurement from 0 to the peak value A, Apk or can be given as the measurement between A and -A which defines a peak-to-peak...
Please find What is NDsolve in Mathematica program. Thanks. Vdd 5V Vin キCL We want to find the output waveform of an...
Please find What is NDsolve in Mathematica program. Thanks.
Vdd 5V Vin キCL We want to find the output waveform of an inverter by solving the differential equation numerically using NDSolve for two different Vin(t) clock waveforms. Once the vo(t) waveform is obtained, we want to calculate τpLH and tpHL numerically from the vo t waveform using FindRoot The device/circuit parameters are: kn -1mA/V, vtn vtpl-1V, and CL- 1pF. (1) 10 pts Consider one cycle of an ideal clock with...
Please find What is NDsolve in Mathematica program. Thanks. Vdd 5V Vin キCL We want to find the output waveform of an i...
Please find What is NDsolve in Mathematica program.
Thanks.
Vdd 5V Vin キCL We want to find the output waveform of an inverter by solving the differential equation numerically using NDSolve for two different Vin(t) clock waveforms. Once the vo(t) waveform is obtained, we want to calculate τpLH and tpHL numerically from the vo t waveform using FindRoot The device/circuit parameters are: kn -1mA/V, vtn vtpl-1V, and CL- 1pF. (1) 10 pts Consider one cycle of an ideal clock with...
1. Find the ratio between the average and the rms value of the waveform shown in the figure below. v(t) (V) 6 in 12 3 t(ms) -2 2. Find the equivalent impedance looking from the source. Write in polar form. C2 2.2 ur L m 100 mH R 31.2 ks2 5 V 370 Hz C 1 uF
Parta): 1. Using the following table of relation between X & Y (Y is the independent Variable): Xi0 234 36 7 8 9 | 11 55 28 5 20 30 a. Find the estimated regression equation Show ALL your calculations and the appropriate formula. WRITE Formula in all the questions below and substitute for the numbers, demonstrate your work. As you see, some cells are blank; you are to put your student ID digits on those cells b. Calculate R2...
Review Part A. Find the relationship between the phasor voltage and phasor current for a resistance The resistor shown here has been transformed into the phasor domain: Ik 4k Suppose that the phasor current is given by IR = 752120 mA. Find the phasor voltage VR. Enter a complex number in polar form, with phase angle in degrees. View Available Hint(s) 3002120 V Submit Previous Answers Correct Part B - Draw the phasor diagram of the resistance from Part A...
Constants Periodic Table Learning Goal: To understand the relation between the strength of an acid or a base and its pK and pKb values Another way to express acid strength is by using pK: The degree to which a weak acid dissociates in solution is given by its acid-ionization constant, Ka For the generic weak acid, HA, pKa log K Another way to express base strength is by using pKb pK log K НА(аg) — А (аq) + н (аq)...
1- Signal m(t) is shown in Figure 1. This signal is used once to frequency modulate a carrier and once to phase modulate the same carrier. a) Find a relation between kp and k such that the maximum phase of the modulated signals in both cases are equal. b) If kp k 1, what is the maximum instantaneous frequency in each case? m(r) 0
1- Signal m(t) is shown in Figure 1. This signal is used once to frequency modulate...
5. Consider the the SEPIC converter shown in of Fig. 4 о, 01 Figure 4: Sepic Converter a) Sketch the diode current waveform for CCM operation. Find its peak value, in terms of the ripple magnitudes ΔΙ.and Δ1L2 and the dc components li and 12 of the two inductor currents Ii(t) and I2(t) respectively b) Derive an expression for the conditions under which the SEPIC operates in the discontinuous conduction mode. Express your result in the form K< Keni(D) and...
Problem 4 Suppose that the interface between two different linear media is the yz plane. A monochromatic plane wave of frequency w, traveling in the positive x direction and polarized in the y direction, approaches the interface from left as shown in the figure, where &;(x,t) = Ēo, ei(kıx-wt) û This situation is shown in the following figure (Note that the positive z axis is out of the page) x Ě (x,t) = Egel(kix-wty €1,M1 E2, M2 Using the given...
One of the most important classes of time dependent signals are periodic signals. Periodic signals satisfy tho following signal equations, x(t) X(t) x(t+nt) for n 2,3. The periodic signals to be observed in this laboratory assignment are shown below. In all the examples A represents the amplitude of the signal and may be given as the measurement from 0 to the peak value A, Apk or can be given as the measurement between A and -A which defines a peak-to-peak...
Please find What is NDsolve in Mathematica program. Thanks.
Vdd 5V Vin キCL We want to find the output waveform of an inverter by solving the differential equation numerically using NDSolve for two different Vin(t) clock waveforms. Once the vo(t) waveform is obtained, we want to calculate τpLH and tpHL numerically from the vo t waveform using FindRoot The device/circuit parameters are: kn -1mA/V, vtn vtpl-1V, and CL- 1pF. (1) 10 pts Consider one cycle of an ideal clock with...
Please find What is NDsolve in Mathematica program.
Thanks.
Vdd 5V Vin キCL We want to find the output waveform of an inverter by solving the differential equation numerically using NDSolve for two different Vin(t) clock waveforms. Once the vo(t) waveform is obtained, we want to calculate τpLH and tpHL numerically from the vo t waveform using FindRoot The device/circuit parameters are: kn -1mA/V, vtn vtpl-1V, and CL- 1pF. (1) 10 pts Consider one cycle of an ideal clock with...
