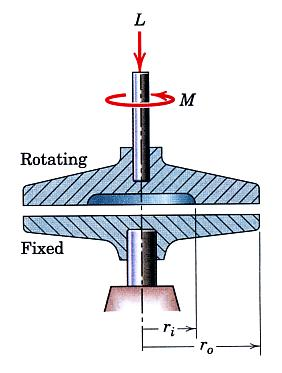

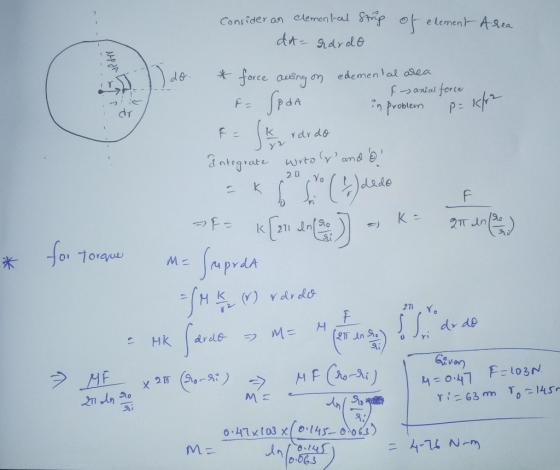

The axial section of the two mating circular disks is shown. Derive the expression for the torque M required to turn the upper disk on the fixed lower one if the pressure p between the disks follows the relation p = k/r2, where k is a constant to be determined. The coefficient of friction μ is constant over the entire surface. After you have the general relation, evaluate your answer for μ = 0.47, L = 103 N, ri = 63 mm, ro = 145 mm.
Homework Answers
