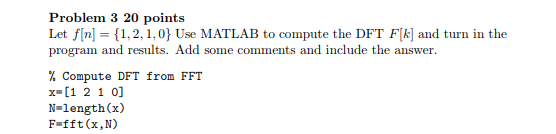

![Problem 3 20 points Let f[n]- 1,2,1,0 Use MATLAB to compute the DFT F[k] and turn in the some comments and inclilcle the answ](http://img.homeworklib.com/images/2e5c2212-5fc0-4658-832e-8fa05699ae9f.png?x-oss-process=image/resize,w_560)
Homework Answers
Program:
clc;clear all;close all;
x=[1 2 1 0]
N=length(x)
n=0:1:N-1
k=0:1:N-1
%DFT
Xk=(exp(-j*2*pi*k'*n/N))*(x')
figure(1)
subplot(321)
stem(n,x)
xlabel('n')
ylabel('x(n)')
title('signal x(n)')
subplot(323)
stem(k,abs(Xk),'r')
xlabel('k')
ylabel('|Xk|')
title('DFT -|X(k)| ')
subplot(324)
stem(k,angle(Xk),'g')
xlabel('k')
ylabel('<Xk>')
title('Phase response of X(k) ')
F=fft(x,N)
subplot(325)
stem(k,abs(F),'r')
xlabel('k')
ylabel('|Fk|')
title('DFT from FFT -|F(k)| ')
subplot(326)
stem(k,angle(F),'g')
xlabel('k')
ylabel('<Fk>')
title('Phase response of F(k) ')
Command
window:
Xk =
4.00000 + 0.00000i
0.00000 - 2.00000i
0.00000 + 0.00000i
-0.00000 + 2.00000i
F =
4 + 0i 0 - 2i 0 + 0i 0 + 2i

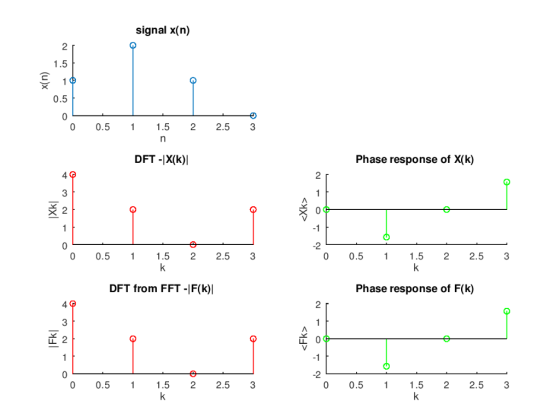

Plot:
