Homework Answers
Feel free to ask if you have
any query.Thank you.
Add Answer to:

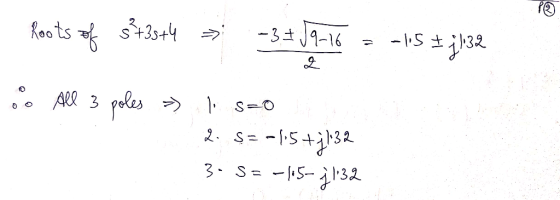

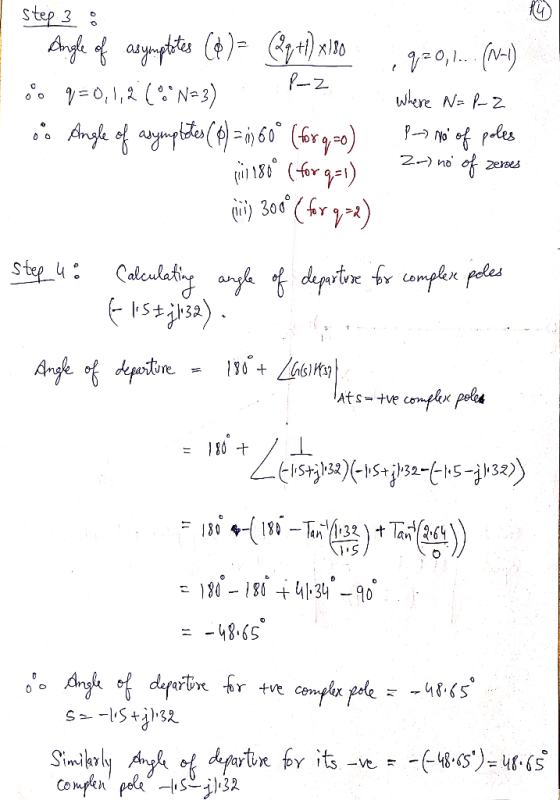

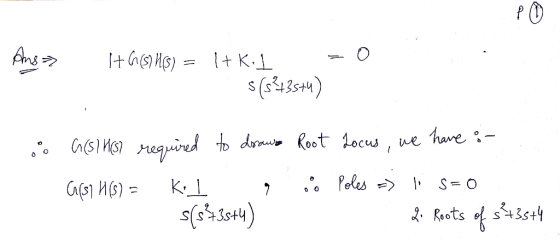

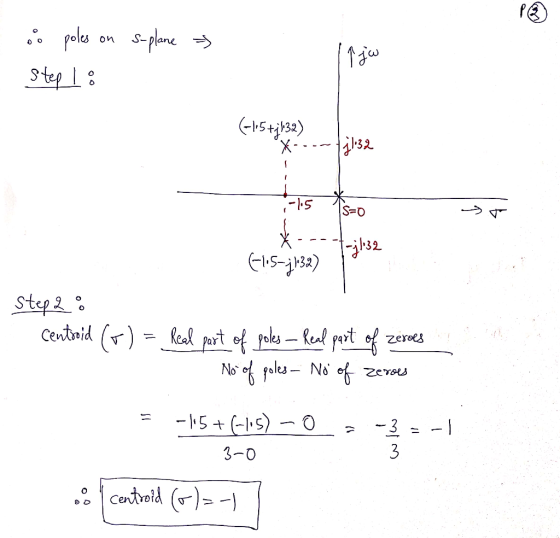

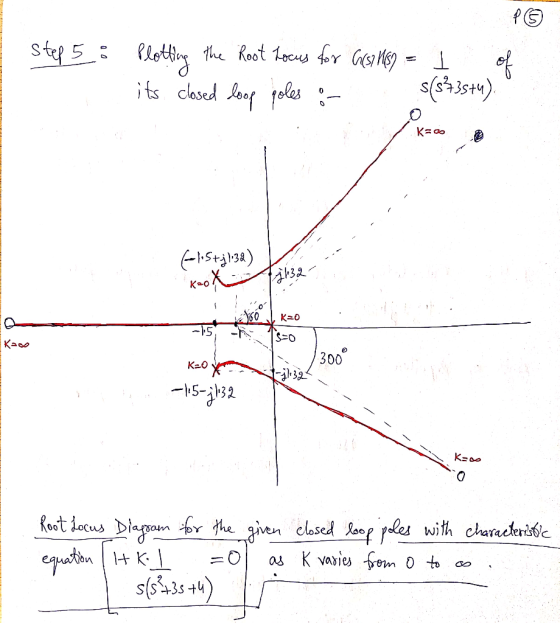

Sketch the root-locus diagram for the closed-loop poles of the system 1+K 4. -0 with given s(s2 +...
