A flanged slot hood exhausts particulates produced in an operation. The flow volume for the exhau...

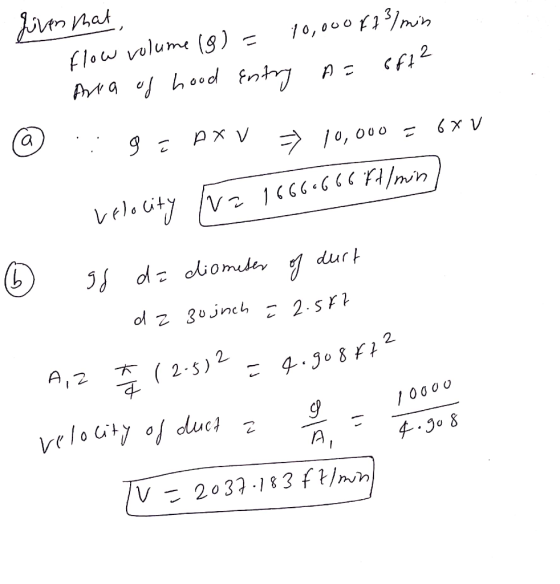

A flanged slot hood exhausts particulates produced in an operation. The flow volume for the exhaust system is 10,000 ft3/min. The hood entry is 6 ft * 1 ft. (a) Neglecting entry losses, what is the face velocity for the hood? (b) If the exhaust duct has a 30 inches diameter, what is the velocity in the duct?
Homework Answers
