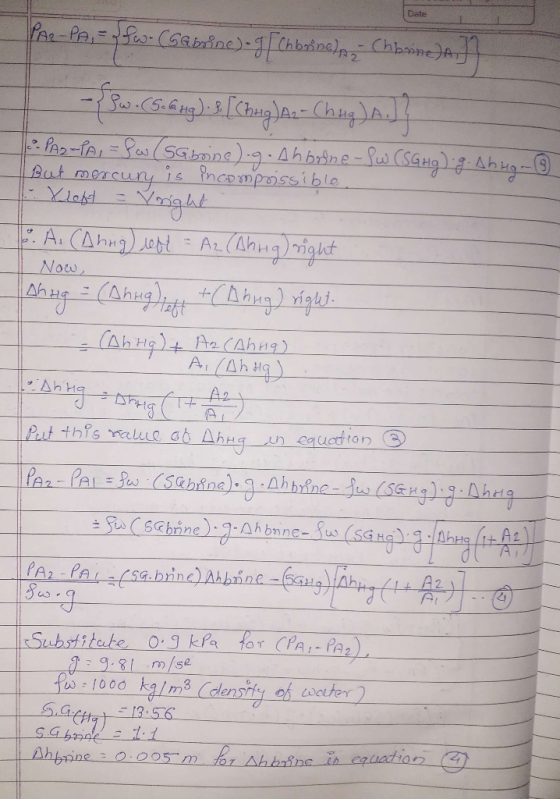

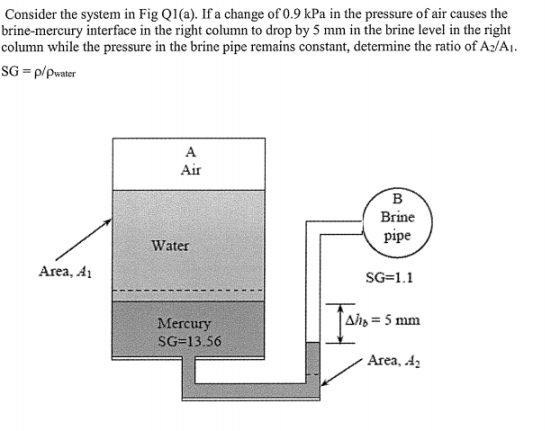

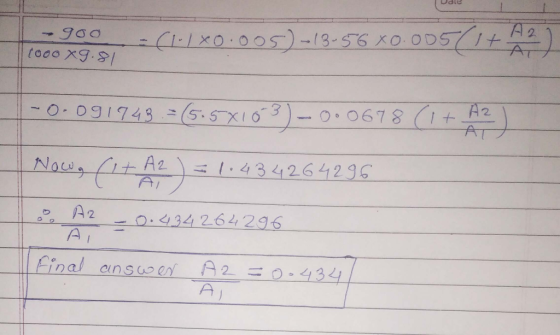

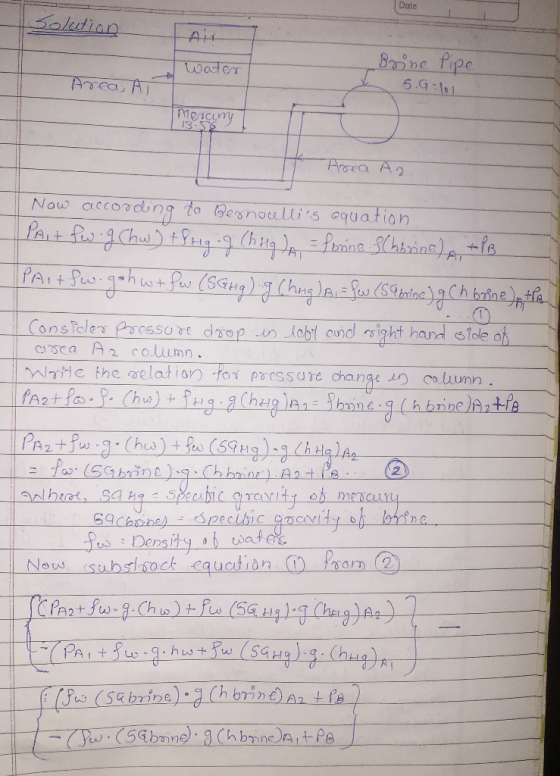

Consider the system in Fig Q1 (a). If a change of 0.9 kPa in the pressure of air causes the brine...
Determine the ration of A2/A1
Consider the system shown in Fig. P2-70. If a change of 0.7 kPa in the pressure of air causes the brine-mercury interface in the right column to drop by 5 mm in the brine level in the right column while the pressure in the brine pipe remains constant, determine the ratio of A2/A1.FIGURE P2–70
Problem 2: Fig. 2 shows a multi-fluid manometer used to measure the absolute pressure of the air container at A. What would be the reading L when the absolute pressure at A is 125 kPa? Mercury SG...
Problem 2: Fig. 2 shows a multi-fluid manometer used to measure the absolute pressure of the air container at A. What would be the reading L when the absolute pressure at A is 125 kPa? Mercury SG- 13.56, Oil SG 0.86. 01 Air 32 cm 18 em 35 15 cm Fig. 2 Water Mercury
Problem 2: Fig. 2 shows a multi-fluid manometer used to measure the absolute pressure of the air container at A. What would be the reading L...
the answer should be Pb=18.41 KPa For the inclined-leg of the mercury manometer of Fig. 1-2,...
the answer should be Pb=18.41 KPa
For the inclined-leg of the mercury manometer of Fig. 1-2, the pressure in pipe A is 15 kPa. The fluid in A has a specific gravity of 0.9 and the fluid in B is water. What is the pressure in pipe B corresponding to the differential reading shown? (25 points) SG = 0.9 Water 100 mm 80 mm 50 mm Mercury Fig. 1-2
A pump generates high pressure water as indicated in fig 3. The Inlet pressure and outlet...
A pump generates high pressure water as indicated in fig 3. The Inlet pressure and outlet pressure are 110 and 300 kPa respectively. The mass flow rate is 3 kg/sec. The inlet pipe is 1 inch diameter and outlet pipe is 0.5 inch. Neglect elevation difference and internal energy changes across inlet and outlet. a) Culculate velocity İf water at inlet and outlet(5) b) Choose a suitable control volume, and write down and expression for conservation of energy applicable to...
part a-d 2 A paint sprayer pumps air through a constriction in a 0.025- m diameter pipe, as shown in the figure. The flow causes the pressure in the constricted area to drop and paint rises up th...
part a-d
2 A paint sprayer pumps air through a constriction in a 0.025- m diameter pipe, as shown in the figure. The flow causes the pressure in the constricted area to drop and paint rises up the feed tube and enters the air stream. The speed of the air stream in the 0.025-m diameter sections is 5.00 m/s. The density of the air is 1.29 kg/m3, and the density of the paint is 1200 kg/m3. We can treat the...
Problem 2: Fig. 2 shows a multi-fluid manometer used to measure the absolute pressure of the air container at A. What would be the reading L when the absolute pressure at A is 125 kPa? Mercury SG- 13.56, Oil SG 0.86. 01 Air 32 cm 18 em 35 15 cm Fig. 2 Water Mercury
Problem 2: Fig. 2 shows a multi-fluid manometer used to measure the absolute pressure of the air container at A. What would be the reading L...
the answer should be Pb=18.41 KPa
For the inclined-leg of the mercury manometer of Fig. 1-2, the pressure in pipe A is 15 kPa. The fluid in A has a specific gravity of 0.9 and the fluid in B is water. What is the pressure in pipe B corresponding to the differential reading shown? (25 points) SG = 0.9 Water 100 mm 80 mm 50 mm Mercury Fig. 1-2
A pump generates high pressure water as indicated in fig 3. The Inlet pressure and outlet pressure are 110 and 300 kPa respectively. The mass flow rate is 3 kg/sec. The inlet pipe is 1 inch diameter and outlet pipe is 0.5 inch. Neglect elevation difference and internal energy changes across inlet and outlet. a) Culculate velocity İf water at inlet and outlet(5) b) Choose a suitable control volume, and write down and expression for conservation of energy applicable to...
part a-d
2 A paint sprayer pumps air through a constriction in a 0.025- m diameter pipe, as shown in the figure. The flow causes the pressure in the constricted area to drop and paint rises up the feed tube and enters the air stream. The speed of the air stream in the 0.025-m diameter sections is 5.00 m/s. The density of the air is 1.29 kg/m3, and the density of the paint is 1200 kg/m3. We can treat the...
