Add Answer to:

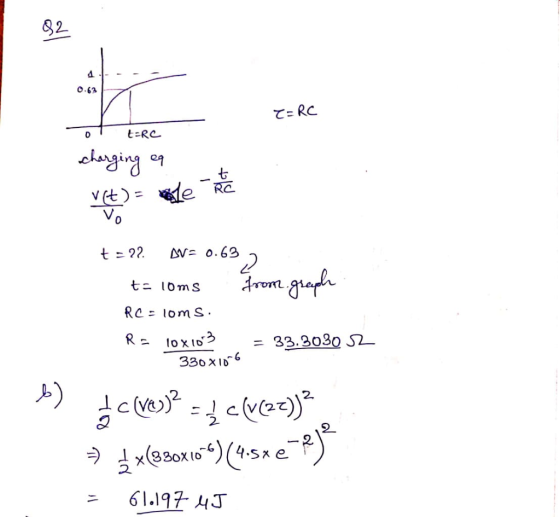

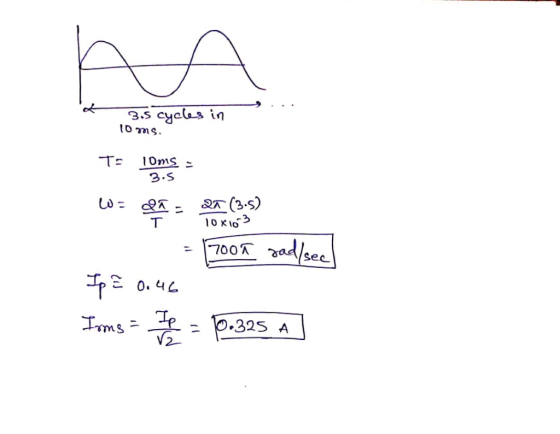

2. A capacitor of capacitance 330 uF is connected in series with a resistance R and a 4.5 V batte...
5. A resistance 250, inductance 200mH, and capacitance 1 uF capacitor are all connected in series,...
5. A resistance 250, inductance 200mH, and capacitance 1 uF capacitor are all connected in series, and across the combination is connected to a 500V, 60 Hz supply. Calculate (a) the current flowing, (b) the phase difference between the supply voltage and current, (c) the voltage across the coil and the capacitor. 6. An 300-uF capacitor is connected in series with 3.25-MQ resistance across a 300-V supply. The switch is closed. Calculate a) Time constant of the circuit b) Initial...
In a series resistance-capacitance DC circuit, the instantaneous charge Q on the capacitor as a... In...
In a series resistance-capacitance DC circuit, the instantaneous charge Q on the capacitor as a... In a series resistance-capacitance DC circuit, the instantaneous charge Q on the capacitor as a function of time (where t=0 is the moment the circuit is energized by closing a switch) is given by the equation Q(t)=CV(1-e-t/(RC), where C, V, and R are constants. Further, the instantaneous charging current Ic is the rate of change of charge on the capacitor, or Ic=dQ/dt a. Find the...
a police car is traveling east at 39.5 A 8.0 uF capacitor is charged by a...
a police car is traveling east at 39.5
A 8.0 uF capacitor is charged by a 13.0 V battery through a resistance R. The capacitor reaches a potential difference of 4.00 V at a time 3.00 s after charging begins. Find R. Need Help? -42 paints Se PSE T9 28 P 042 In the circuit of the figure below, the switch S has been open for a long time. It is then suddenly closed. (Use the following as necessary: for...
(a) A capacitor has a value of 5 μF. Explain in terms of electric charge what this means. (b) The 5 uF capacitor shown in the circuit below is initially uncharged. The circuit is connected to a compu...
(a) A capacitor has a value of 5 μF. Explain in terms of electric charge what this means. (b) The 5 uF capacitor shown in the circuit below is initially uncharged. The circuit is connected to a computer and switch S is closed. The monitor of the computer displays a graph of current against time as the capacitor charges monitoT charging current/uA 30 20 10 0 . 2,3 4 time s computer The battery has negligible internal resistance. (i) Calculate...
Consider a series circuit containing a resistor of resistance R and a capacitor of capacitance C connected to a source of EMF E with negligible internal resistance.
Consider a series circuit containing a resistor of resistance R and a capacitor of capacitance C connected to a source of EMF E with negligible internal resistance. The wires are also assumed to have zero resistance. Initially, the switch is open and the capacitor discharged. (Figure 1)A Immediately after the switch is closed, what is the voltage across the capacitor?B Complete previous part(s) C Immediately after the switch is closed, what is the direction of the current in the circuit? E Eventually,...
Problem 7 A resistor with resistance R, battery with voltage AV, capacitor with capacitance C, and...
Problem 7 A resistor with resistance R, battery with voltage AV, capacitor with capacitance C, and switch are connected in series. The switch is closed at t = 0. The time constant of the circuit is T. What is the initial voltage across the resistor immediately after the student is closed? Select One of the Following: (a) o (b) AV (c) TAV (d) AV/T (e) AV/(R+C) Problem 8 A capacitor is charged to potential difference V and then allowed to...
Consider a series circuit containing a resistor of resistance R and a capacitor of capacitance C connected to a source of EMF ε with negligible internal resistance.
Consider a series circuit containing a resistor of resistance R and a capacitor of capacitance C connected to a source of EMF ε with negligible internal resistance. The wires are also assumed to have zero resistance. Initially, the switch is open and the capacitor discharged. (Figure 1)Immediately after the switch is closed, what is the voltage
across the resistor?Immediately after the switch is closed, what is the direction of
the current in the circuit?
Determine the equivalent resistance R and the equivalent capacitance C
In Circuit \(\mathrm{A}\) in Figure 3, each resistor has a resistance of \(1 \mathrm{k} \Omega\) and each capacitor has a capacitance of \(2 \mu \mathrm{F}\). Circuit A can be simplified to the equivalent Circuit B in Figure 3 .(a) Determine the equivalent resistance R and the equivalent capacitance C. Write your final answers in the blank spaces below Circuit B in Figure 3 .For the remainder of this question, refer to Circuit \(\mathrm{B}\). In Circuit \(\mathrm{B}\), the capacitor is allowed to charge...
Exercise 3: (1.5 pts) A capacitor of capacitance 0.01 uF is connected to a DC voltage...
Exercise 3: (1.5 pts) A capacitor of capacitance 0.01 uF is connected to a DC voltage source of emf s. When the capacitor becomes fully charged, the battery is removed from the circuit and the capacitor is connected to a resistor of resistance R. What is the resistance R if the charge reaches 25% of its initial value in 2 ms?
In the circuit shown in the following figure(Figure 1) the capacitor has capacitance 25 uF and...
In the circuit shown in the following figure(Figure 1) the capacitor has capacitance 25 uF and is initially uncharged. The resistor Ro has resistance 12 12. An emf of 80.0 V is added in series with the capacitor and the resistor. The emf is placed between the capacitor and the switch, with the positive terminal of the emf adjacent to the capacitor. The small circuit is not connected in any way to the large one. The wire of the small...
5. A resistance 250, inductance 200mH, and capacitance 1 uF capacitor are all connected in series, and across the combination is connected to a 500V, 60 Hz supply. Calculate (a) the current flowing, (b) the phase difference between the supply voltage and current, (c) the voltage across the coil and the capacitor. 6. An 300-uF capacitor is connected in series with 3.25-MQ resistance across a 300-V supply. The switch is closed. Calculate a) Time constant of the circuit b) Initial...
a police car is traveling east at 39.5
A 8.0 uF capacitor is charged by a 13.0 V battery through a resistance R. The capacitor reaches a potential difference of 4.00 V at a time 3.00 s after charging begins. Find R. Need Help? -42 paints Se PSE T9 28 P 042 In the circuit of the figure below, the switch S has been open for a long time. It is then suddenly closed. (Use the following as necessary: for...
(a) A capacitor has a value of 5 μF. Explain in terms of electric charge what this means. (b) The 5 uF capacitor shown in the circuit below is initially uncharged. The circuit is connected to a computer and switch S is closed. The monitor of the computer displays a graph of current against time as the capacitor charges monitoT charging current/uA 30 20 10 0 . 2,3 4 time s computer The battery has negligible internal resistance. (i) Calculate...
Problem 7 A resistor with resistance R, battery with voltage AV, capacitor with capacitance C, and switch are connected in series. The switch is closed at t = 0. The time constant of the circuit is T. What is the initial voltage across the resistor immediately after the student is closed? Select One of the Following: (a) o (b) AV (c) TAV (d) AV/T (e) AV/(R+C) Problem 8 A capacitor is charged to potential difference V and then allowed to...
In Circuit \(\mathrm{A}\) in Figure 3, each resistor has a resistance of \(1 \mathrm{k} \Omega\) and each capacitor has a capacitance of \(2 \mu \mathrm{F}\). Circuit A can be simplified to the equivalent Circuit B in Figure 3 .(a) Determine the equivalent resistance R and the equivalent capacitance C. Write your final answers in the blank spaces below Circuit B in Figure 3 .For the remainder of this question, refer to Circuit \(\mathrm{B}\). In Circuit \(\mathrm{B}\), the capacitor is allowed to charge...
Exercise 3: (1.5 pts) A capacitor of capacitance 0.01 uF is connected to a DC voltage source of emf s. When the capacitor becomes fully charged, the battery is removed from the circuit and the capacitor is connected to a resistor of resistance R. What is the resistance R if the charge reaches 25% of its initial value in 2 ms?
In the circuit shown in the following figure(Figure 1) the capacitor has capacitance 25 uF and is initially uncharged. The resistor Ro has resistance 12 12. An emf of 80.0 V is added in series with the capacitor and the resistor. The emf is placed between the capacitor and the switch, with the positive terminal of the emf adjacent to the capacitor. The small circuit is not connected in any way to the large one. The wire of the small...
