For each of the following specifications, use built-in MATLAB functions to design two or more different filters and display their magnitude responses. Also state what their implementation costs are (number of additions and multiplications per sample). Assume a sampling rate of 1000 sps.

- Band-pass filter with cutoff frequencies 50 and 150 Hz.

- Band-reject filter with cutoff frequencies 50 and 150 Hz.

engineering Electrical-Engineering

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

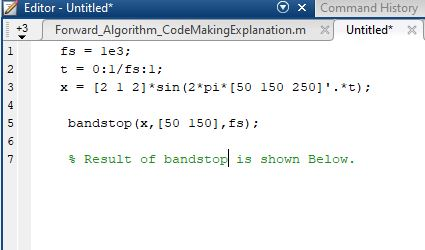

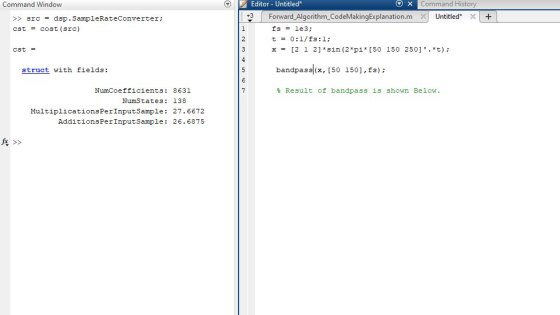

Editor-Untitled* 3 Forward_Algorithm_CodeMakingExplanation.m UntitledX+ Command Window Command History >srcdsp.SampleRateConv

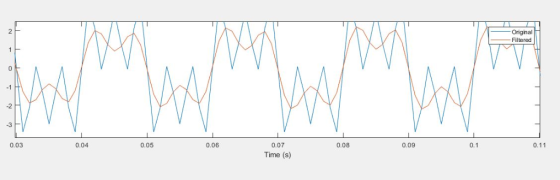

A/レがW Original Filtered 0.11 0.1 0.09 0.08 0.07 Time (s) 0.06 0.05 0.04 0.03 Editor -Untitled* Command History | Forward-Algorithm-CodeMakingExplanation.m Untitled × le3: t = 0:1/fs : 1 ; [2 | 21°sin (

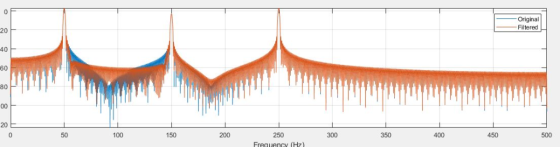

Origina Filtered 20 40 80 00F 100 450 150 250 Freguency (Hz) 50 200 300 350 400 500

Cost function is same for both the cases. I hope you are going to enhance your knowledge with this.
