Add Answer to:

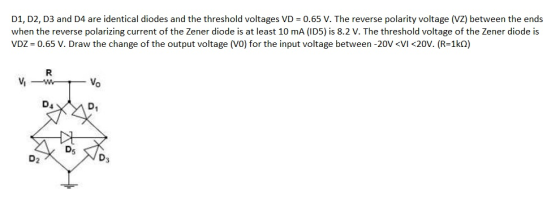

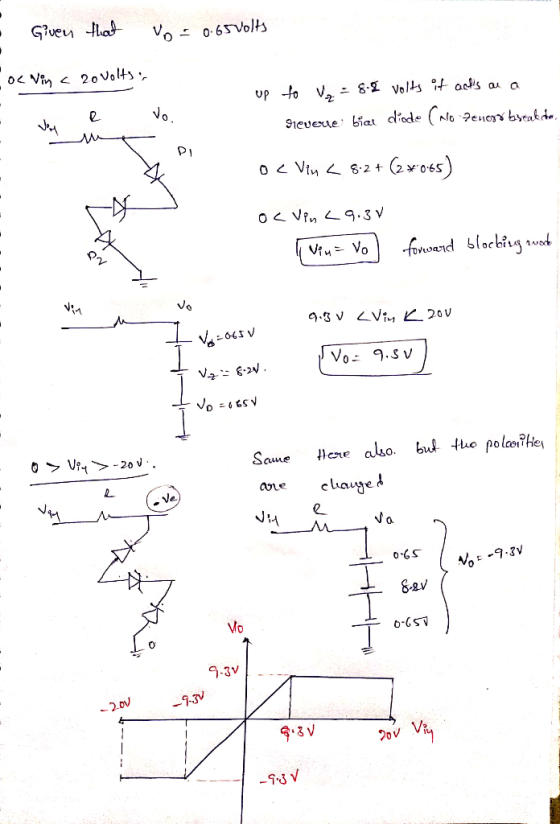

D1, D2, D3 and D4 are identical diodes and the threshold voltages VD 0.65 V. The reverse polarity...
In the circuit below, T1 is rated 14.3V RMS secondary voltage, D1, D2, D3 & D4 are IN4001 rectifying diodes and...
In the circuit below, T1 is rated 14.3V RMS secondary voltage, D1, D2, D3 & D4 are IN4001 rectifying diodes and RL is 3.3KQ. Given that R1-5600, and R2-2.2K2, use the formula provided to calculate the output voltage (Vo) of the LM317 voltage regulator. Provide an answer in engineering notation, correct to 3 significant figures. 1 A Vo= 1.25V (1+ R2/ R1) D2 Ds CT AC line nput 60 Hz LM317 NC Di Со RL 120 V/ 14.3 v R2...
In the circuit below, T1 is rated 12V RMS secondary voltage, D1, D2, D3 &D4 are IN4001 rectifying diodes and RL...
In the circuit below, T1 is rated 12V RMS secondary voltage, D1, D2, D3 &D4 are IN4001 rectifying diodes and RL is 1.8ΚΩ. Given that RI-2202, and R2 1.2KQ, use the formula provided to calculate the output voltage (Vo) of the LM317 voltage regulator. Provide an answer in engineering notation, correct to 3 significant figures. 1 A Vo= 1.25V (1 + R2/ R1) Da AC line C CT input 60 Hz NC D, CI 120 V/12 V R2
In the...
QUESTION 14 If practical diodes are used in the bridge rectifier circuit thown below, the peak inverse voltage, PIV for the diode D1 will be equal to2markt) Di Ds oan PumB Ri. D2 D4 Vplout)-0.7 v...
QUESTION 14 If practical diodes are used in the bridge rectifier circuit thown below, the peak inverse voltage, PIV for the diode D1 will be equal to2markt) Di Ds oan PumB Ri. D2 D4 Vplout)-0.7 volts Vplsec)-0.7 volts Vplot2+0.7 volts Vplout
QUESTION 14 If practical diodes are used in the bridge rectifier circuit thown below, the peak inverse voltage, PIV for the diode D1 will be equal to2markt) Di Ds oan PumB Ri. D2 D4 Vplout)-0.7 volts Vplsec)-0.7 volts Vplot2+0.7...
please solve it nicely and draw and verify with Proteus D1 and D2 diodes are ideal...
please solve it nicely and draw and verify with Proteus
D1 and D2 diodes are ideal in the circuit given in the figure.For Zener diode= V=5.7 V ve Vo=0.7 V 1-)Draw the transition curve of the circuit in the (V.-V;) -20 <V;< +20 V range. 2-)If V; =3 + 10Sin2n50t is applied to the input of the circuit, the input (Vi) and output (Vo) of the circuit draw the voltages on a scale in a row. Di. 1632 VD2 1kΩ:...
(1) A simusoidal signal Vs is the input to the full-waverectifier shown. The diodes have a...
(1) A simusoidal signal Vs is the input to the full-waverectifier shown. The diodes have a reverse saturation current 0.01 mA and an abrupt tum-on oltage of 0.7 V Theresistoris R-2,000 S2. Let Vs(t)- 12 cos(ot) V. D: D. D: D (a) Calculate the voltage Vo for the extremes of the sourc voltage,ie. VsMlax = 12 Vand (4 pts) (b)Calculate the source current for t-0 s, Vs(0)12 cos(ot) V. (6 pts) (b) Fill out the table showing when each diodeis...
Ctri Question 3 (20 Marks) Lab 1-Zener Circuits and Applications Theory: Zener diode is designed ...
Ctri Question 3 (20 Marks) Lab 1-Zener Circuits and Applications Theory: Zener diode is designed to operate in reverse conduction. Zener breakdown occurs at a precisely defined voltage, allowing the diode to be used as a voltage reference or clipper. While Zener diodes are usually operated in reverse conduction, they may also be operated in cutoff and forward conduction. There are two different effects that are used in "Zener diodes". The only practical difference is that the two types have...
In the circuit below, T1 is rated 14.3V RMS secondary voltage, D1, D2, D3 & D4 are IN4001 rectifying diodes and RL is 3.3KQ. Given that R1-5600, and R2-2.2K2, use the formula provided to calculate the output voltage (Vo) of the LM317 voltage regulator. Provide an answer in engineering notation, correct to 3 significant figures. 1 A Vo= 1.25V (1+ R2/ R1) D2 Ds CT AC line nput 60 Hz LM317 NC Di Со RL 120 V/ 14.3 v R2...
In the circuit below, T1 is rated 12V RMS secondary voltage, D1, D2, D3 &D4 are IN4001 rectifying diodes and RL is 1.8ΚΩ. Given that RI-2202, and R2 1.2KQ, use the formula provided to calculate the output voltage (Vo) of the LM317 voltage regulator. Provide an answer in engineering notation, correct to 3 significant figures. 1 A Vo= 1.25V (1 + R2/ R1) Da AC line C CT input 60 Hz NC D, CI 120 V/12 V R2
In the...
QUESTION 14 If practical diodes are used in the bridge rectifier circuit thown below, the peak inverse voltage, PIV for the diode D1 will be equal to2markt) Di Ds oan PumB Ri. D2 D4 Vplout)-0.7 volts Vplsec)-0.7 volts Vplot2+0.7 volts Vplout
QUESTION 14 If practical diodes are used in the bridge rectifier circuit thown below, the peak inverse voltage, PIV for the diode D1 will be equal to2markt) Di Ds oan PumB Ri. D2 D4 Vplout)-0.7 volts Vplsec)-0.7 volts Vplot2+0.7...
please solve it nicely and draw and verify with Proteus
D1 and D2 diodes are ideal in the circuit given in the figure.For Zener diode= V=5.7 V ve Vo=0.7 V 1-)Draw the transition curve of the circuit in the (V.-V;) -20 <V;< +20 V range. 2-)If V; =3 + 10Sin2n50t is applied to the input of the circuit, the input (Vi) and output (Vo) of the circuit draw the voltages on a scale in a row. Di. 1632 VD2 1kΩ:...
(1) A simusoidal signal Vs is the input to the full-waverectifier shown. The diodes have a reverse saturation current 0.01 mA and an abrupt tum-on oltage of 0.7 V Theresistoris R-2,000 S2. Let Vs(t)- 12 cos(ot) V. D: D. D: D (a) Calculate the voltage Vo for the extremes of the sourc voltage,ie. VsMlax = 12 Vand (4 pts) (b)Calculate the source current for t-0 s, Vs(0)12 cos(ot) V. (6 pts) (b) Fill out the table showing when each diodeis...
Ctri Question 3 (20 Marks) Lab 1-Zener Circuits and Applications Theory: Zener diode is designed to operate in reverse conduction. Zener breakdown occurs at a precisely defined voltage, allowing the diode to be used as a voltage reference or clipper. While Zener diodes are usually operated in reverse conduction, they may also be operated in cutoff and forward conduction. There are two different effects that are used in "Zener diodes". The only practical difference is that the two types have...
