A simple pendulum has a mass of 0.650 kg and a length of 7.00 m. It is displaced through an angle...
A simple pendulum has a mass of 0.650 kg and a length of 7.00 m. It is displaced through an angle of 9.0° and then released. Using the analysis model of a particle in simple harmonic motion, calculate the following. (Give your answer to the thousandths place.)
(a) What is the maximum speed of the bob? WebAssign will check your answer for the correct number of significant figures. m/s
(b) What is the maximum angular acceleration of the bob? WebAssign will check your answer for the correct number of significant figures. rad/s2
(c) What is the maximum restoring force of the bob? WebAssign will check your answer for the correct number of significant figures. N
(d) Solve parts (a)through (c) by using other analysis models. (Hint: you may need to use separate analysis models for each part.)
maximum speed WebAssign will check your answer for the correct number of significant figures. m/s
maximum angular acceleration WebAssign will check your answer for the correct number of significant figures. rad/s2
maximum restoring force WebAssign will check your answer for the correct number of significant figures. N
(e) Compare the answers.

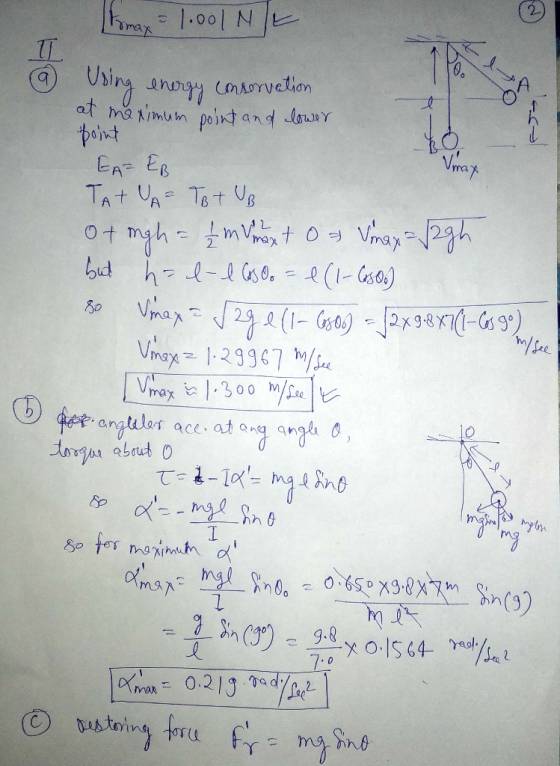

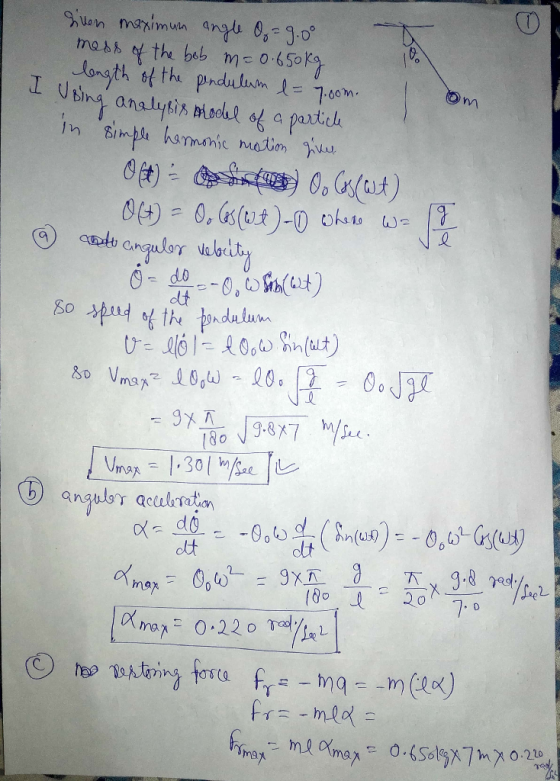

Homework Answers

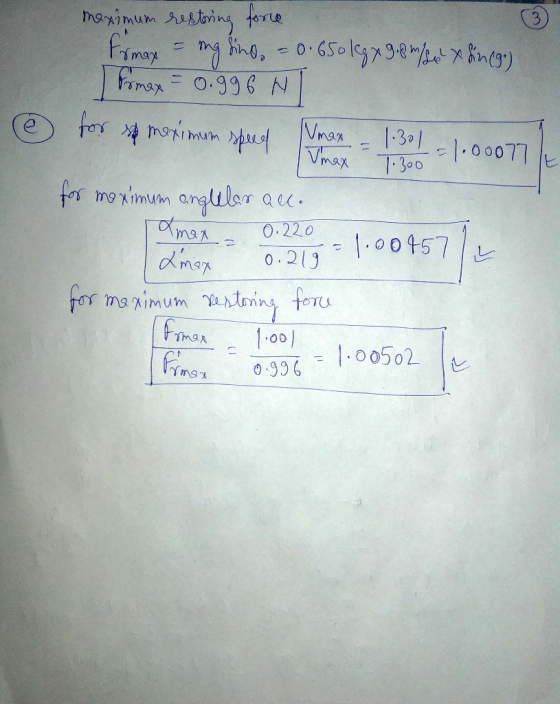

![Vmax 100077 momum ana 0.21] = 1.0045 mgr 0.9910050](http://img.homeworklib.com/images/99b1d75d-ef32-4d98-9246-f17992b10cb5.png?x-oss-process=image/resize,w_560)
