Example 11:The 1.5-in-diameter solid steel shaft shown below is simply supported at the ends Two ...
10 in BI 200 lbf 10 in 10 in 1000 lbf 500 lbt 100 lbf AD...

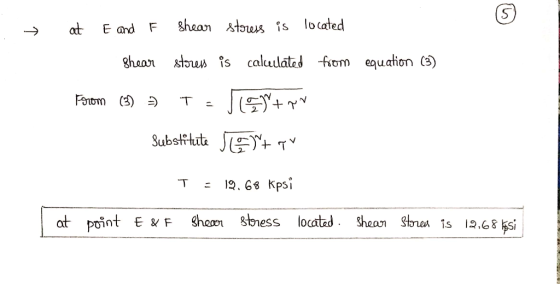

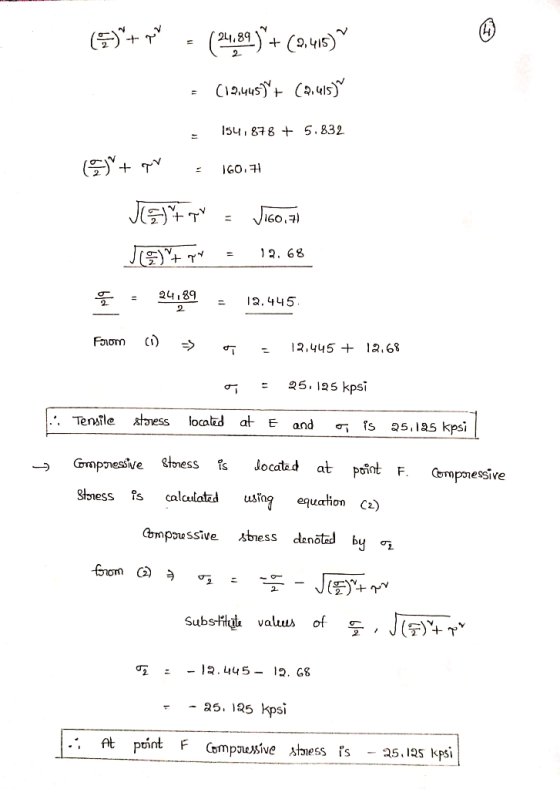

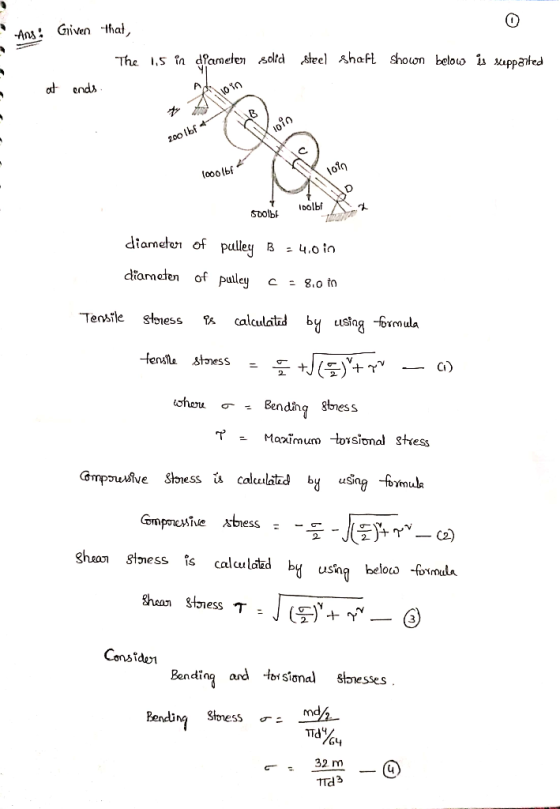

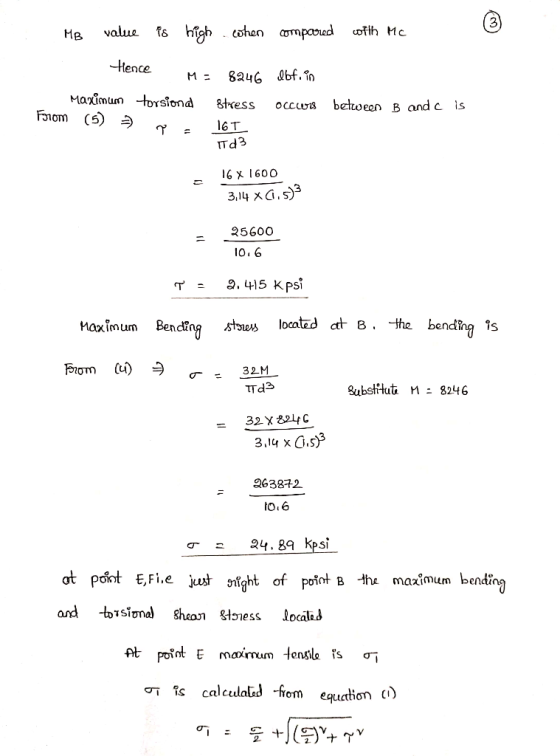

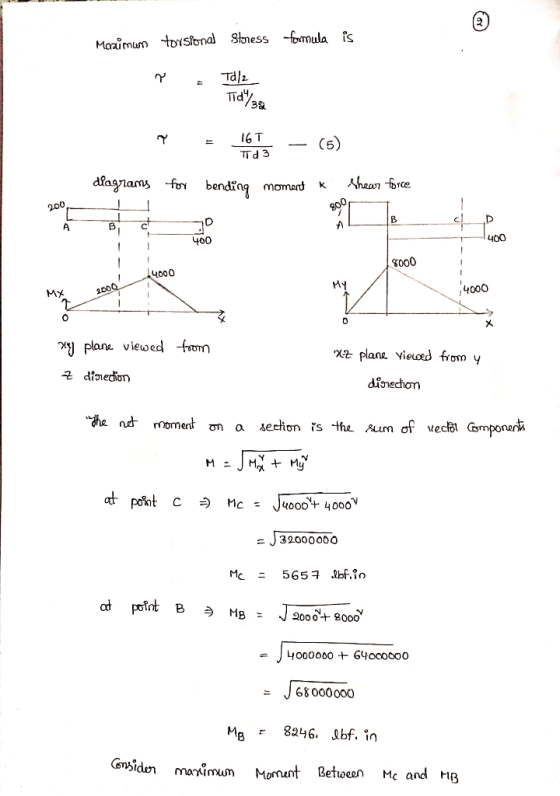

10 in BI 200 lbf 10 in 10 in 1000 lbf 500 lbt 100 lbf AD is a solid steel shaft of 1.5in diameter. Pulley at B has 4.0in diameter and pulley at C has 8.0in diameter. Considering bending and torsional stresses only, determine the locations and magnitudes of the greatest tensile, compressive, and shear stresses in the shaft.
5. The 0.875-in-diameter solid steel shaft shown below is simply supported with bearings at the ends....
5. The 0.875-in-diameter solid steel shaft shown below is simply supported with bearings at the ends. Loads are applied to arms welded to the shaft at B. Torque is provided through a flexible coupling at A. Determine the bending stress, shear stress and maximum principle stress just to the left and right of point B. por pe 1500 16 500 lb —12” — " B/G 16" 200 lb
The solid steel shaft (Sy = 75 kpsi, Se = 50 kpsi, Sut = 110 kpsi)...
The solid steel shaft (Sy = 75 kpsi, Se = 50 kpsi, Sut = 110 kpsi) carrying two-belt pulleys is shown in the figure (reaction force, torques are given as well). Two pulleys are keyed to the shaft where pulley B is of diameter 4.0 in the pulley C is of diameter 8.0 in. Assume the shaft has a uniform diameter d = 1.5 in. 1) Design a key (S, = 60 kpsi) for pulley C using the design factor...
The solid cylindrical shaft AB of 1.5 in-diameter supports of two pulleys as shown. Find the...
The solid cylindrical shaft AB of 1.5 in-diameter supports of two pulleys as shown. Find the principal normal stresses and the maximum shear stress in the critical section of the shaft. Free Body Diagram Roy 300 lbf 1 6-in D wa 50 lbf SSM 27 lbf a Roz 360 lbf :D Fe = 350 lbf Fc = 387 lbf D. Coin 1 RAZ Tec = (300-50)x8/2 = 1000 in-Ib
System Description The system is made of a shaft with two bearings and two pulleys as...
System Description The system is made of a shaft with two bearings and two pulleys as shown in figure 1 D1 = D2 6 inches 4 inches 3 inches 120 lbf 35 lbf Axial Force N 1.5" motor shaft D1 02 Bearing I Bearing lI Pulley 2 Pulley 1 Pulley 2 Figure 1 Questions Given the following THE SHAFT IS NOT ROTATING FOR QUESTIONS 1 -5 THE AXIAL FORCE N 550 lbf THERE ARE NO FORCES ON PULLEY 1 Op=...
The 60-mm-diameter solid shaft is subjected to the distributed and concentrated torsional loadings shown. Determine the...
The 60-mm-diameter solid shaft is subjected to the distributed and concentrated torsional loadings shown. Determine the absolute maximum and minimum shear stresses in the shaft's surface and specify their locations, measured from the free end. 10-25. The solid shaft is subjected to the distributed and concentrated torsional loadings shown. Determine the required diameter d of the shaft if the allowable shear stress for the material is Tallow = 60 MPa. 400 N·m 4 kN.m/m А. < 0.2 m 0.2 m...
Problem 3 (17 points) The two static forces are applied to a circular 1-in diameter shaft as shown. The shaft is ma...
Problem 3 (17 points) The two static forces are applied to a circular 1-in diameter shaft as shown. The shaft is made from 1045 CD Steel with a yield strength of 77 ksi. 8 in 1000 lbf 1 in dia. Cross section at the wall 800 lbf (2) a) Identify the location of the most critical stress element. (A. E, F or D?) (10) b) Determine the stresses and draw the stresses on the critical element identified in part a)....
The W33 x221 steel simply supported beam is loaded with concentrated loads and uniform load as...
The W33 x221 steel simply supported beam is loaded with
concentrated loads and uniform
load as shown with the load P= 150kip and w = 10kip/ft. For
this beam do the following;
a) Draw the shear and bending moment diagram
b) Calculate the maximum compressive and tensile stress
c) Calculate the maximum shear stress
P Р 3 ft 3 ft w 10 ft
The rotating solid steel shaft is simply supported by bearings at points B and C and is driven by gear (not shown) which meshes with the spur gear at D
The rotating solid steel shaft is simply supported by bearings at points B and C and is driven by gear (not shown) which meshes with the spur gear at D, which has a 150-mm pitch diameter. The force F from the drive gear acts at a pressure angle of 20". The shaft transmits a torque to point A of TA = 340 N.m. The shaft is machined from steel with Sy= 420 MPa and Sut = 560 MPa. The fatigue...
P10.018 210 GPa] shaft supports two pulleys. For the loading shown, The solid 36-mm-diameter steel [E discontinuity...
P10.018 210 GPa] shaft supports two pulleys. For the loading shown, The solid 36-mm-diameter steel [E discontinuity functions to compute: (a) the shaft deflection vB at pulley B (b) the shaft deflection vc at pulley C. use = 400 mm, P 840 N, Q 470 N 290 mm, LBC Assume LAB A B C LAB LBC P Answer: (a) VB = mm. (b) vC mm. Open Show Work Click if you would like to Show Work for this question:
P10.018...
10 in BI 200 lbf 10 in 10 in 1000 lbf 500 lbt 100 lbf AD is a solid steel shaft of 1.5in diameter. Pulley at B has 4.0in diameter and pulley at C has 8.0in diameter. Considering bending and torsional stresses only, determine the locations and magnitudes of the greatest tensile, compressive, and shear stresses in the shaft.
5. The 0.875-in-diameter solid steel shaft shown below is simply supported with bearings at the ends. Loads are applied to arms welded to the shaft at B. Torque is provided through a flexible coupling at A. Determine the bending stress, shear stress and maximum principle stress just to the left and right of point B. por pe 1500 16 500 lb —12” — " B/G 16" 200 lb
The solid steel shaft (Sy = 75 kpsi, Se = 50 kpsi, Sut = 110 kpsi) carrying two-belt pulleys is shown in the figure (reaction force, torques are given as well). Two pulleys are keyed to the shaft where pulley B is of diameter 4.0 in the pulley C is of diameter 8.0 in. Assume the shaft has a uniform diameter d = 1.5 in. 1) Design a key (S, = 60 kpsi) for pulley C using the design factor...
The solid cylindrical shaft AB of 1.5 in-diameter supports of two pulleys as shown. Find the principal normal stresses and the maximum shear stress in the critical section of the shaft. Free Body Diagram Roy 300 lbf 1 6-in D wa 50 lbf SSM 27 lbf a Roz 360 lbf :D Fe = 350 lbf Fc = 387 lbf D. Coin 1 RAZ Tec = (300-50)x8/2 = 1000 in-Ib
System Description The system is made of a shaft with two bearings and two pulleys as shown in figure 1 D1 = D2 6 inches 4 inches 3 inches 120 lbf 35 lbf Axial Force N 1.5" motor shaft D1 02 Bearing I Bearing lI Pulley 2 Pulley 1 Pulley 2 Figure 1 Questions Given the following THE SHAFT IS NOT ROTATING FOR QUESTIONS 1 -5 THE AXIAL FORCE N 550 lbf THERE ARE NO FORCES ON PULLEY 1 Op=...
The 60-mm-diameter solid shaft is subjected to the distributed and concentrated torsional loadings shown. Determine the absolute maximum and minimum shear stresses in the shaft's surface and specify their locations, measured from the free end. 10-25. The solid shaft is subjected to the distributed and concentrated torsional loadings shown. Determine the required diameter d of the shaft if the allowable shear stress for the material is Tallow = 60 MPa. 400 N·m 4 kN.m/m А. < 0.2 m 0.2 m...
Problem 3 (17 points) The two static forces are applied to a circular 1-in diameter shaft as shown. The shaft is made from 1045 CD Steel with a yield strength of 77 ksi. 8 in 1000 lbf 1 in dia. Cross section at the wall 800 lbf (2) a) Identify the location of the most critical stress element. (A. E, F or D?) (10) b) Determine the stresses and draw the stresses on the critical element identified in part a)....
The W33 x221 steel simply supported beam is loaded with
concentrated loads and uniform
load as shown with the load P= 150kip and w = 10kip/ft. For
this beam do the following;
a) Draw the shear and bending moment diagram
b) Calculate the maximum compressive and tensile stress
c) Calculate the maximum shear stress
P Р 3 ft 3 ft w 10 ft
P10.018 210 GPa] shaft supports two pulleys. For the loading shown, The solid 36-mm-diameter steel [E discontinuity functions to compute: (a) the shaft deflection vB at pulley B (b) the shaft deflection vc at pulley C. use = 400 mm, P 840 N, Q 470 N 290 mm, LBC Assume LAB A B C LAB LBC P Answer: (a) VB = mm. (b) vC mm. Open Show Work Click if you would like to Show Work for this question:
P10.018...
