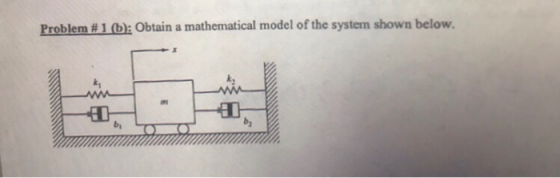

Problem # 1 (b): Obtain a mathematical model of the system shown below.

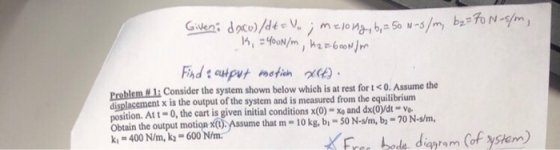

Problem1: Consider the system shown below which is at rest for t<0. Assume the displacement x is the output of the system and
c.rditinstoo)20 추dx(Hat20.5m/s inilia) Problem12i Referring to Problem # 1, assume that m-100 kg, b.-120 N-sim, b2 80 N-s/m,
Problem # 1 (b): Obtain a mathematical model of the system shown below.
Problem1: Consider the system shown below which is at rest for t
0 0
Add a comment Improve this question Transcribed image text
Answer #1

kni ertprintiple 6b motion ag,hit like please

Add a comment
Know the answer?
Add Answer to:
Problem # 1 (b): Obtain a mathematical model of the system shown below. Problem1: Consider the ...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • Obtain a mathematical model (The two equations that constitute of Kirchhoff's voltage law) of the circuit shown below: Ri e(r) Problem 1 Obtain a mathematical model (The two equations that...

    Obtain a mathematical model (The two equations that constitute of Kirchhoff's voltage law) of the circuit shown below: Ri e(r) Problem 1 Obtain a mathematical model (The two equations that constitute of Kirchhoff's voltage law) of the circuit shown below: Ri e(r) Problem 1

  • (20pts) Consider the vertical spring-mass-damper system shown below, where m 2 kg, b 4 N-s/m, and...

    (20pts) Consider the vertical spring-mass-damper system shown below, where m 2 kg, b 4 N-s/m, and k 20N/m. Assume that x(0) 0.1 m and (0) 0. The displacement is measured form the equilibrium position. Derive a mathematical model of the system (i.e. an ODE). Then find x(t) as a function of time t.

  • Question 3 (35 marks) Consider a mechanical system shown in Figure 3. The system is at rest for t

    Question 3 (35 marks) Consider a mechanical system shown in Figure 3. The system is at rest for t<0. The input force f is applied at 0. The displacement x is the output of the system and is measured from the equilibrium position. kI b2 bi it Figure 3. Schematic of a mechanical system. (a) Obtain the traf) (10 marks) X (s) F(s) (b) Use of force-voltage analogy, obtain the equations for an electrical system (5 marks) (c) Draw a...

  • Problem1: Consider the translational system shown in the figure below. Att-0,x (displacement)-y (...

    Problem1: Consider the translational system shown in the figure below. Att-0,x (displacement)-y (let y represents velocity)-fat)0. The physical constants are: M-3,B1,B2B 0.5. Find the first order system equation in y and do following. a) Find the response, y(t) of the system when subjected to a step input,falt)-A b). Find time constant, "7". c Identify the steady state, "yss" and transient, "yr" part of the response. d). Sketch the complete response when the input is unit step function. e). Is the...

  • Problem 2 - A modified mass-spring-damper system: Model the modified mass-spring-damper system shown below. The mass...

    Problem 2 - A modified mass-spring-damper system: Model the modified mass-spring-damper system shown below. The mass of the handle is negligi- ble (only 1 FBD is necessary). Consider the displacement (t) to be the input to the system and the cart displacement az(t) to be the output. You may assume negligible drag. MwSpring-Damper System M0 Problem 3 Repeat problem 2, but with the following differences: • Assume the mass of the handle m, is not equal to zero. You may...

  • NOTE 2: Initial conditions assumed to be 0 unless otherwise is stated 1) Consider the system depi...

    NOTE 2: Initial conditions assumed to be 0 unless otherwise is stated 1) Consider the system depicted below Input: v, Output: vo Assume that c (0)2, v2 (0)0 a) b) c) d) Derive the mathematical model of the system using mesh current method Find unit impulse response Find unit step response Find the transfer function T(s)Vo (s)/V(s) 2) Consider the system depicted below 2,20.5 Input: v, Output: i Assume that i,(0) 1, vc(00 a) Derive the mathematical model of the...

  • please can you solve clearly and step by step GA Problem-5: The system given in the...

    please can you solve clearly and step by step GA Problem-5: The system given in the following figure consists of a pulley with inertia ) and radius r, and a hanging object with mass m. The input of this system is the torque t applied on the pulley and angle is measured along CCW direction in radians. Assume that the effect of gravity is balanced by the springs before the torque is applied. a) Obtain a parametric mathematical model for...

  • 3) Consider the system depicted below xz Input: F. Output: x Assume that all initial conditions a...

    3) Consider the system depicted below xz Input: F. Output: x Assume that all initial conditions are zero. a) Derive mathematical model of the system b Find unit step response c) Find the transfer function T(s) X2(s)/Fs) d) What is the final value of the output be. limx)-7) for F)- 4) Find the transfer function state space R(s) for each of the following sytems represented in a) 10 y-[1 0 0 b) 2 -3-8 3 -5 y-1 3 6 c)...

  • (5 marks) For the followving electrical system shown in Figure 3. a) Derive the mathematical mode...

    (5 marks) For the followving electrical system shown in Figure 3. a) Derive the mathematical model of the system b) Draw Block diagram of the system, then, c) Obtain the transfer function of Eo(s)/E (s) Figure 3 (5 marks) For the followving electrical system shown in Figure 3. a) Derive the mathematical model of the system b) Draw Block diagram of the system, then, c) Obtain the transfer function of Eo(s)/E (s) Figure 3

  • 6. For the following mechanical system: a) Find a mathematical model b) Find the transfer functio...

    6. For the following mechanical system: a) Find a mathematical model b) Find the transfer function, G(s) = c Find impulse, step and ramp response by using MATLAB functions d) Find harmonic response by using MATLAB SIMULINK T(s) 2 N-m-s/rad 2 N-m/rad N2-20 T0) l kg-m2 N3-40 010 N1-5 N4-10 0.02 N-m-s/radl 6. For the following mechanical system: a) Find a mathematical model b) Find the transfer function, G(s) = c Find impulse, step and ramp response by using MATLAB...
