The plantneeds to be stabilized with a feedback controller. The closed-loop system should have a ...
2) The plant damping ratio of ζ-0.707 and a dominant time constant 0.1s (choose real part of the ...

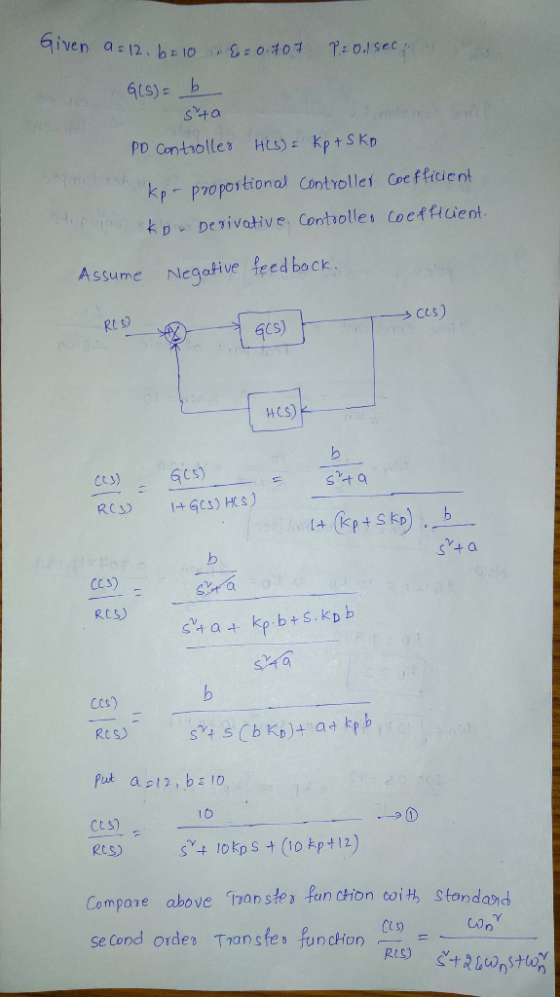

a=12 b=10

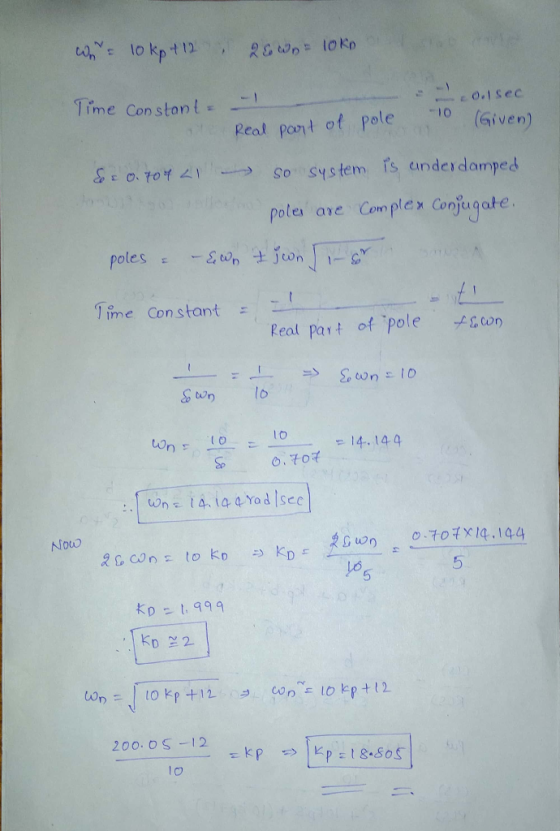

2) The plant damping ratio of ζ-0.707 and a dominant time constant 0.1s (choose real part of the closed-loop poles to be-10). Use PD control and compute the required values of the gains. needs to be stabilized with a feedback controller. The closed-loop system should have a
2) The plant damping ratio of ζ-0.707 and a dominant time constant 0.1s (choose real part of the closed-loop poles to be-10). Use PD control and compute the required values of...
Consider a unity-feedback control system with a PI controller Gpr(s) and a plant G(s) in cascade. In particular, the plant transfer function is given as 2. G(s) = s+4, and the PI controller trans...
Consider a unity-feedback control system with a PI controller Gpr(s) and a plant G(s) in cascade. In particular, the plant transfer function is given as 2. G(s) = s+4, and the PI controller transfer function is of the forrm KI p and Ki are the proportional and integral controller gains, respectively where K Design numerical values for Kp and Ki such that the closed-loop control system has a step- response settling time T, 0.5 seconds with a damping ratio of...
Question# 1 (25 points) For a unity feedback system with open loop transfer function K(s+10)(s+20) (s+30)(s2-20s+2...
Question# 1 (25 points) For a unity feedback system with open loop transfer function K(s+10)(s+20) (s+30)(s2-20s+200) G(s) = Do the following using Matlab: a) Sketch the root locus. b) Find the range of gain, K that makes the system stable c) Find the value of K that yields a damping ratio of 0.707 for the system's closed-loop dominant poles. d) Obtain Ts, Tp, %OS for the closed loop system in part c). e) Find the value of K that yields...
A robot force control system with unity feedback has a loop transfer function [6 7.11 Tood transf...
A robot force control system with unity feedback has a loop transfer function [6 7.11 Tood transfer function (6l K(s +2.5) (s2 + 2s 2) (s2 + 4s + 5) (a) Find the gain K that results in dominant roots with a damping ratio of 0.707. Sketch the root locus. (b) Find the actual percent overshoot and peak time for the gain K of part (a)
A robot force control system with unity feedback has a loop transfer function [6...
Can you Solve in matlab please. I need your help B-7-6. Consider the system shown in Figure 7-59. Plot the root loci for the system. Determine the value of K such that the damping ratio ζ of the d...
Can you Solve in matlab please. I need your help
B-7-6. Consider the system shown in Figure 7-59. Plot the root loci for the system. Determine the value of K such that the damping ratio ζ of the dominant closed-loop poles is 05. Then determine all closed-loop poles. Plot the unit-step response curve with MATLAB. s(s2 +4s +5) Figure 7-59 Control system.
B-7-6. Consider the system shown in Figure 7-59. Plot the root loci for the system. Determine the value...
PD & PID controller design Consider a unity feedback system with open loop transfer function, G(s)...
PD & PID controller design Consider a unity feedback system with open loop transfer function, G(s) = 20/s(s+2)(8+4). Design a PD controller so that the closed loop has a damping ratio of 0.8 and natural frequency of oscillation as 2 rad/sec. b) 100 Consider a unity feedback system with open loop transfer function, aus. Design a PID controller, so that the phase margin of (S-1) (s + 2) (s+10) the system is 45° at a frequency of 4 rad/scc and...
A unity feedback closed loop control system is displayed in Figure 4. (a) Assume that the control...
Please solve as a MATLAB code.
A unity feedback closed loop control system is displayed in Figure 4. (a) Assume that the controller is given by G (s) 2. Based on the lsim function of MATLAB, calculate and obtain the graph of the response for (t) at. Here a 0.5°/s. Find the height error after 10 seconds, (b) In order to reduce the steady-state error, substitute G (s) with the following controller This is a Proportional-Integral (PI) controller. Repeat part...
show steps please 10 A second-order open-loop system with transfer function G(s) = is to be...
show steps please
10 A second-order open-loop system with transfer function G(s) = is to be $2+45+10 controlled with unity negative feedback. (a) Derive the error transfer functions E(s) of the closed-loop system subjected to a unit step input, when using a P controller and a PI controller, respectively, in terms P control gain kp, and PI control gains kp and ki, respectively. [7] (b) Determine the steady-state errors in (a). Briefly comment on the differences in control performance by...
3. Consider the system It is desired to design an output feedback controller such that all closed-loop eigenvalues sati...
3. Consider the system It is desired to design an output feedback controller such that all closed-loop eigenvalues satisfy R, [A S-3 and the output y is to track a constant reference r. (a) Design the controller using the feedback compensator method. (b) Design the controller using the integral-control method.
3. Consider the system It is desired to design an output feedback controller such that all closed-loop eigenvalues satisfy R, [A S-3 and the output y is to track a...
plz solve this problem [10] Consider the system shown below. Design the PD controller such that the closed loop syst...
plz solve this problem
[10] Consider the system shown below. Design the PD controller such that the closed loop system satisfies the following specifications. a) The steady-state error with respect to a step disturbance W (s) is no more than 10 %. b) The third order system gives a dominant 2nd order response such that the third pole s=p satisfies p 10wn, where Zwn is the damping constant. |W(s) Y(s) 1 E(S)Kp+Kps R(s) s(s+10)
[10] Consider the system shown below....
a=12 b=10
2) The plant damping ratio of ζ-0.707 and a dominant time constant 0.1s (choose real part of the closed-loop poles to be-10). Use PD control and compute the required values of the gains. needs to be stabilized with a feedback controller. The closed-loop system should have a
2) The plant damping ratio of ζ-0.707 and a dominant time constant 0.1s (choose real part of the closed-loop poles to be-10). Use PD control and compute the required values of...
Consider a unity-feedback control system with a PI controller Gpr(s) and a plant G(s) in cascade. In particular, the plant transfer function is given as 2. G(s) = s+4, and the PI controller transfer function is of the forrm KI p and Ki are the proportional and integral controller gains, respectively where K Design numerical values for Kp and Ki such that the closed-loop control system has a step- response settling time T, 0.5 seconds with a damping ratio of...
Question# 1 (25 points) For a unity feedback system with open loop transfer function K(s+10)(s+20) (s+30)(s2-20s+200) G(s) = Do the following using Matlab: a) Sketch the root locus. b) Find the range of gain, K that makes the system stable c) Find the value of K that yields a damping ratio of 0.707 for the system's closed-loop dominant poles. d) Obtain Ts, Tp, %OS for the closed loop system in part c). e) Find the value of K that yields...
A robot force control system with unity feedback has a loop transfer function [6 7.11 Tood transfer function (6l K(s +2.5) (s2 + 2s 2) (s2 + 4s + 5) (a) Find the gain K that results in dominant roots with a damping ratio of 0.707. Sketch the root locus. (b) Find the actual percent overshoot and peak time for the gain K of part (a)
A robot force control system with unity feedback has a loop transfer function [6...
Can you Solve in matlab please. I need your help
B-7-6. Consider the system shown in Figure 7-59. Plot the root loci for the system. Determine the value of K such that the damping ratio ζ of the dominant closed-loop poles is 05. Then determine all closed-loop poles. Plot the unit-step response curve with MATLAB. s(s2 +4s +5) Figure 7-59 Control system.
B-7-6. Consider the system shown in Figure 7-59. Plot the root loci for the system. Determine the value...
PD & PID controller design Consider a unity feedback system with open loop transfer function, G(s) = 20/s(s+2)(8+4). Design a PD controller so that the closed loop has a damping ratio of 0.8 and natural frequency of oscillation as 2 rad/sec. b) 100 Consider a unity feedback system with open loop transfer function, aus. Design a PID controller, so that the phase margin of (S-1) (s + 2) (s+10) the system is 45° at a frequency of 4 rad/scc and...
Please solve as a MATLAB code.
A unity feedback closed loop control system is displayed in Figure 4. (a) Assume that the controller is given by G (s) 2. Based on the lsim function of MATLAB, calculate and obtain the graph of the response for (t) at. Here a 0.5°/s. Find the height error after 10 seconds, (b) In order to reduce the steady-state error, substitute G (s) with the following controller This is a Proportional-Integral (PI) controller. Repeat part...
show steps please
10 A second-order open-loop system with transfer function G(s) = is to be $2+45+10 controlled with unity negative feedback. (a) Derive the error transfer functions E(s) of the closed-loop system subjected to a unit step input, when using a P controller and a PI controller, respectively, in terms P control gain kp, and PI control gains kp and ki, respectively. [7] (b) Determine the steady-state errors in (a). Briefly comment on the differences in control performance by...
3. Consider the system It is desired to design an output feedback controller such that all closed-loop eigenvalues satisfy R, [A S-3 and the output y is to track a constant reference r. (a) Design the controller using the feedback compensator method. (b) Design the controller using the integral-control method.
3. Consider the system It is desired to design an output feedback controller such that all closed-loop eigenvalues satisfy R, [A S-3 and the output y is to track a...
plz solve this problem
[10] Consider the system shown below. Design the PD controller such that the closed loop system satisfies the following specifications. a) The steady-state error with respect to a step disturbance W (s) is no more than 10 %. b) The third order system gives a dominant 2nd order response such that the third pole s=p satisfies p 10wn, where Zwn is the damping constant. |W(s) Y(s) 1 E(S)Kp+Kps R(s) s(s+10)
[10] Consider the system shown below....
