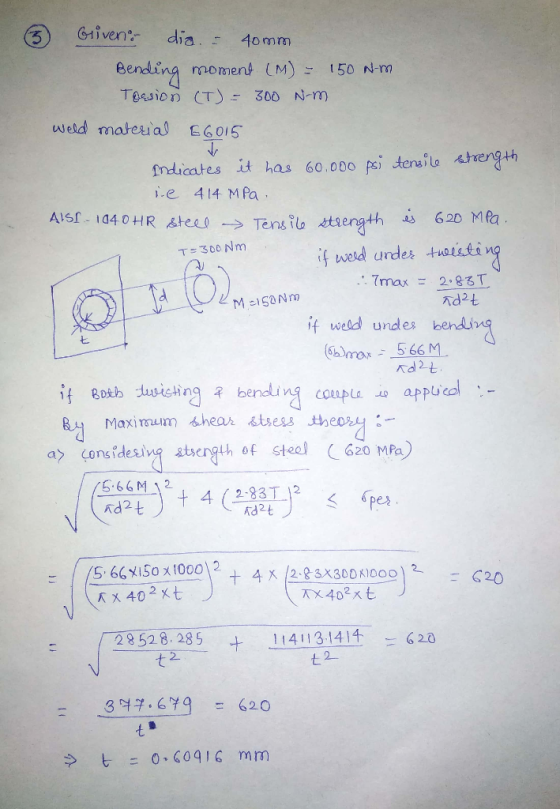

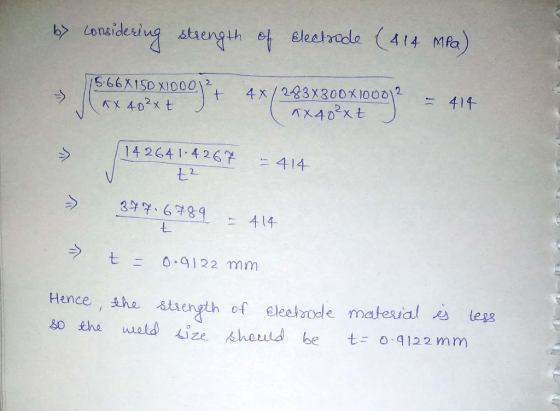

3. 40mm square tubing is to be welded to a steel frame and is loaded by a bending moment of 150Nm...
Problem #3 (25 pts): In transferring atorque of 20K-ft and a bending moment of 10 between...

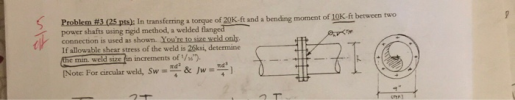

Problem #3 (25 pts): In transferring atorque of 20K-ft and a bending moment of 10 between two power shafts using rigid method, a welded flanged connection is used as shown. Y If allowable shear stress of the weld is 26ksi, determine the min. weld size in increments of io" Note: For arcular weld, Sw & w ]
The frame shown consists of a very stiff steel beam with a wide-flange beam (W33 X 200), welded r...
The frame shown consists of a very stiff steel beam with a wide-flange beam (W33 X 200), welded rigidly to two vertical channels (C8 X11.5). Assume that the mass of the channels is small compared to the mass of the beam. The area moment of inertia of each channel about its centroidal bending axis is 1.3 in'. An eccentric exciter weighting 50 lib is attached to the beam, which weighs 2,000 lb, and is used to excite the frame. The...
The cantilever bar in the figure is made from AISI 1018 CD steel and is statically loaded
The cantilever bar in the figure is made from AISI 1018 CD
steel and is statically loaded with Fy = 800 N, and Fx = Fz = 0.
The fillet radius at the wall is 2 mm with theoretical stress
concentrations of 1.5 for bending, 1.2 for axial, and 2.1 for
torsion.Sut = 440 MPa = 64 kpsi, Sy = 370 MPa = 54 kpsi. Analyze the
stress situation in rod AB by obtaining the following
information.a) Determine the precise...
3. A 16-foot-long single overhang steel beam is loaded as shown. Assuming a W8 x 35...
3. A 16-foot-long single overhang steel beam is loaded as shown. Assuming a W8 x 35 section, determine the maximum bending stress developed. (A992 steel, Fb-30 ksi) (25 points) Gk INSTRUCTIONS For PROBLEM do the following steps: 1. Show ALL your work 2. Draw appropriately labeled FBDs 3. Use appropriate segments to develop expressions for the shear force and bending moment. diagrams in a standard format the required stresses in the critical points in the 4. Draw the shear force...
1) The shaft shown in the figure is machined from AISI 1040 CD steel. The shaft...
1) The shaft shown in the figure is machined from AISI 1040 CD steel. The shaft rotates at 1600 rpm and is supported in rolling bearings at A and B. The applied forces are F1-1000 lbf and F2-400 lbf. The torque, 100 lbf.in, is also applied between C and D. Determine the minimum fatigue factor of safety based on: a) Soderburg b) Modified-Goodman c) Gerber d) ASME-DE (ASME-DE criteria e) If infinite life is not predicted, estimate the number of...
The crane shown in the sketch is to be designed to lifl a load of 70...
The crane shown in the sketch is to be designed to lifl a load of 70 KN to a maximum height which corresponds to the position where the beam will be making an angle of 70P with the ground You are required to: Draw necessary free body diagrams and caculate all the forces acting on the beam, piston rod and mount joints for the configuration shown in the sketch 2) Design the beam based on bending stress only, assuming a...
summatize the following info and break them into differeng key points. write them in yojr own...
summatize the following info and break them into differeng key points. write them in yojr own words
apartus
6.1 Introduction—The design of a successful hot box appa- ratus is influenced by many factors. Before beginning the design of an apparatus meeting this standard, the designer shall review the discussion on the limitations and accuracy, Section 13, discussions of the energy flows in a hot box, Annex A2, the metering box wall loss flow, Annex A3, and flanking loss, Annex...
summarizr the followung info and write them in your own words and break them into different...
summarizr the followung info and write them in your own words and break them into different key points. 6.5 Metering Chamber: 6.5.1 The minimum size of the metering box is governed by the metering area required to obtain a representative test area for the specimen (see 7.2) and for maintenance of reasonable test accuracy. For example, for specimens incorporating air spaces or stud spaces, the metering area shall span an integral number of spaces (see 5.5). The depth of...
Problem #3 (25 pts): In transferring atorque of 20K-ft and a bending moment of 10 between two power shafts using rigid method, a welded flanged connection is used as shown. Y If allowable shear stress of the weld is 26ksi, determine the min. weld size in increments of io" Note: For arcular weld, Sw & w ]
The frame shown consists of a very stiff steel beam with a wide-flange beam (W33 X 200), welded rigidly to two vertical channels (C8 X11.5). Assume that the mass of the channels is small compared to the mass of the beam. The area moment of inertia of each channel about its centroidal bending axis is 1.3 in'. An eccentric exciter weighting 50 lib is attached to the beam, which weighs 2,000 lb, and is used to excite the frame. The...
The cantilever bar in the figure is made from AISI 1018 CD
steel and is statically loaded with Fy = 800 N, and Fx = Fz = 0.
The fillet radius at the wall is 2 mm with theoretical stress
concentrations of 1.5 for bending, 1.2 for axial, and 2.1 for
torsion.Sut = 440 MPa = 64 kpsi, Sy = 370 MPa = 54 kpsi. Analyze the
stress situation in rod AB by obtaining the following
information.a) Determine the precise...
3. A 16-foot-long single overhang steel beam is loaded as shown. Assuming a W8 x 35 section, determine the maximum bending stress developed. (A992 steel, Fb-30 ksi) (25 points) Gk INSTRUCTIONS For PROBLEM do the following steps: 1. Show ALL your work 2. Draw appropriately labeled FBDs 3. Use appropriate segments to develop expressions for the shear force and bending moment. diagrams in a standard format the required stresses in the critical points in the 4. Draw the shear force...
1) The shaft shown in the figure is machined from AISI 1040 CD steel. The shaft rotates at 1600 rpm and is supported in rolling bearings at A and B. The applied forces are F1-1000 lbf and F2-400 lbf. The torque, 100 lbf.in, is also applied between C and D. Determine the minimum fatigue factor of safety based on: a) Soderburg b) Modified-Goodman c) Gerber d) ASME-DE (ASME-DE criteria e) If infinite life is not predicted, estimate the number of...
The crane shown in the sketch is to be designed to lifl a load of 70 KN to a maximum height which corresponds to the position where the beam will be making an angle of 70P with the ground You are required to: Draw necessary free body diagrams and caculate all the forces acting on the beam, piston rod and mount joints for the configuration shown in the sketch 2) Design the beam based on bending stress only, assuming a...
summatize the following info and break them into differeng key points. write them in yojr own words
apartus
6.1 Introduction—The design of a successful hot box appa- ratus is influenced by many factors. Before beginning the design of an apparatus meeting this standard, the designer shall review the discussion on the limitations and accuracy, Section 13, discussions of the energy flows in a hot box, Annex A2, the metering box wall loss flow, Annex A3, and flanking loss, Annex...
