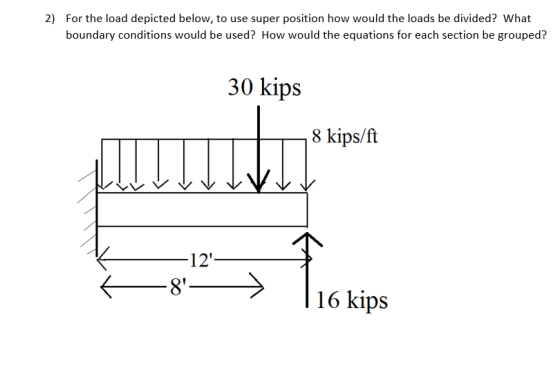

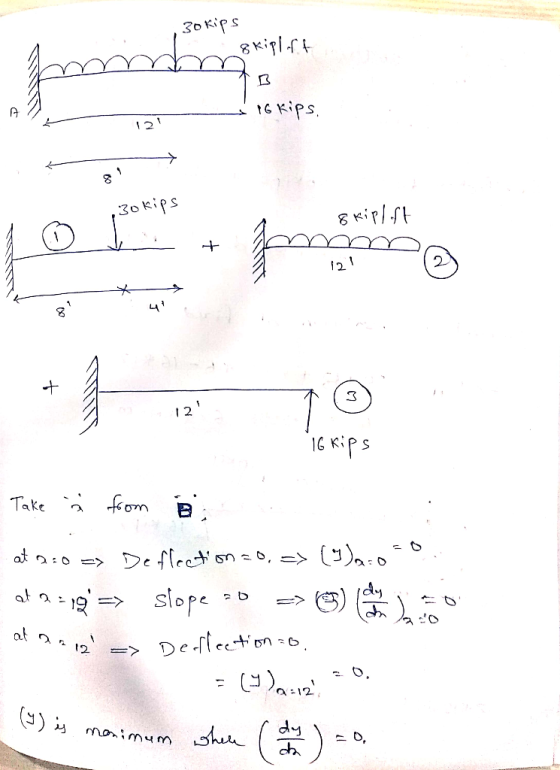

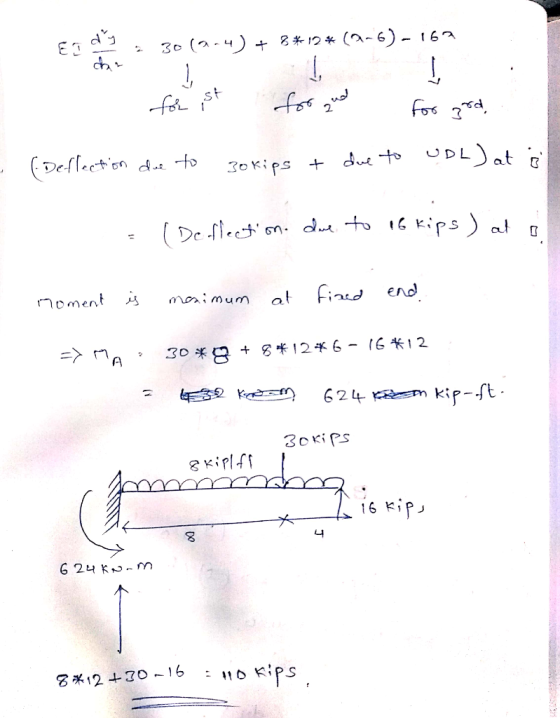

For the load depicted below, to use super position how would the loads be divided? What boundary ...
16. For the beam shown below, a uniform load, two con team shown below, a uniform load, two concentrated loads, and a triangular los Pied as shown. The beam diagram is presented on both this pape and the next pas to help you as you answer the questions heta. Provide the following information 10 kips 18 kips 6 kips/it 3 kips/ft 3 ft 8 ft 4 24 24 3ft A 8. C. D. is this beam statically determinate? What are...
1. For the building shown below, calculate the dead load, reduced live load, and maximum design load per IBC 2012, LRFD load combinations. Beam loads should be in plf, column loads should be in kips. [To be done by hand.] Note: It is acceptable check only equations 16-1 and 16-2 of IBC 2012. a. Beam I b. Веam II olumn A/3-supporting 1 story d. Column B/2- supporting 1 story C e. Column B/2-supporting 4 stories Given loading: Dead Load 60...
The single-story unbraced frame shown below is subjected to dead load, roof live load, and wind load Figure 1 shows the results of a first-order analysis relative to the columns of the frame. The axial load and end moment (also equal to the maximum moment in the column) are given separately for the different load cases (i.e., dead load, roof live load, and lateral wind load). All vertical loads are symmetrically placed and contribute only to the Mnt moments (i.e.,...
Based on tributary load analysis, the dead and live loads, wd and wų, respectively, acting on a beam in a vertical load resisting system are shown below. The concrete is normalweight with compressive strength f=5000 psi. Note that the given dead load includes the self-weight of the beam and slab. Section wp=1.2 kip/ft, wu=1.5 kip/ft be-45 inch 5 inch 1 30 inch B A 10 inch In=10 ft 1. Design and detail the beam for positive flexure at section A....
please help me solve part B
it is drawing please be clear
To use a load diagram to determine internal axial forces and to calculate axial deformations. The axially loaded bar with circular cross-section is loaded and supported as shown below. The bar is made of aluminum 2014-T4 and has a modulus of elasticity, E, of 10,600 ksi. The lengths of segments AB, BC, and CD are 2, 1.5, and is 2.5 ft, respectively and the diameters of the segments...
Problem 1 Consider the cantilever beam shown below. This beam is loaded with a downward pointing point load that moves horizontally along the top of the beam. The position of the load from point A, the fixed point, is denoted by x. An influence line diagram showing the internal moment at point B as the load moves across the beam is also shown below 1 kip x, Position of load from Point A (ft) 24 Moment at Point B (kip-ft)/kip...
1) For the frame below, use a- 4 ft, b- 12 ft and c 8 ft. Draw the plan view of the load distribution. Clearly identify the tributary area for each beam/girder (10 pts) 2) The weight of the 5 in thick concrete slab is 3 pst per inch, the beams/grders are both w12x 25 Draw a FBD of the dead load for girder ABC. (30 pts)
1) For the frame below, use a- 4 ft, b- 12 ft and...
1. The floor framing plan is shown below. Design the beams B1, B2, and Ba Check the beam weight for each beam. The bay does not repeat. Note The dead load does not include the weight of the beam Select the most economical section for each design to be fully laterally braced. Use A36 steel where Beam B1 frames into it only. Use A992 Grade 50 steel is considered fully braced by the slab it supports. Use A992 Grade 50...
CIT 253 Homework #2 Spring 2018 Problem 1: The assembly below will be used for each problem. Lengths, diameters, and materials are provided. If the temperature when this system was assembled was 74F, what would be the stress in each cylinder at a temperature of 40F? Problem 2: If the fixed support at D were removed and the temperature change did not occur, how far would point D move if a 400 lb tension load was applied at the center...
727 PM Sat May 11 ? 25% 3. For the simple CRT depicted below, describe how each suggested change in Va or Vd would affect the final deflection position of the electron beam. Effect on deflection, D Change in Voltage Vd is halved V, is tripled Vais increased by 1.5x and its polarity is reversed V, is quadrupled, Vd is doubled In a CRT, the deflection on the screen is 2.4 cm when the accelerating voltage is 480 V and...
