Question

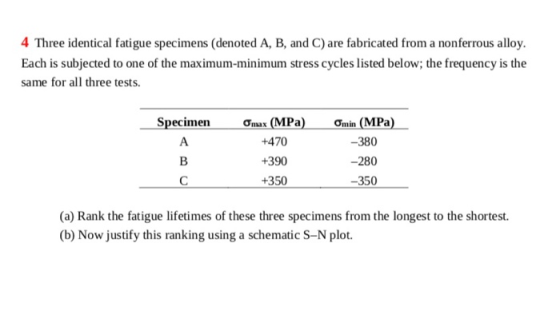

4 Three identical fatigue specimens (denoted A, B, and C) are fabricated from a nonferrous alloy. Each is subjected to one of
science   chemistry
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

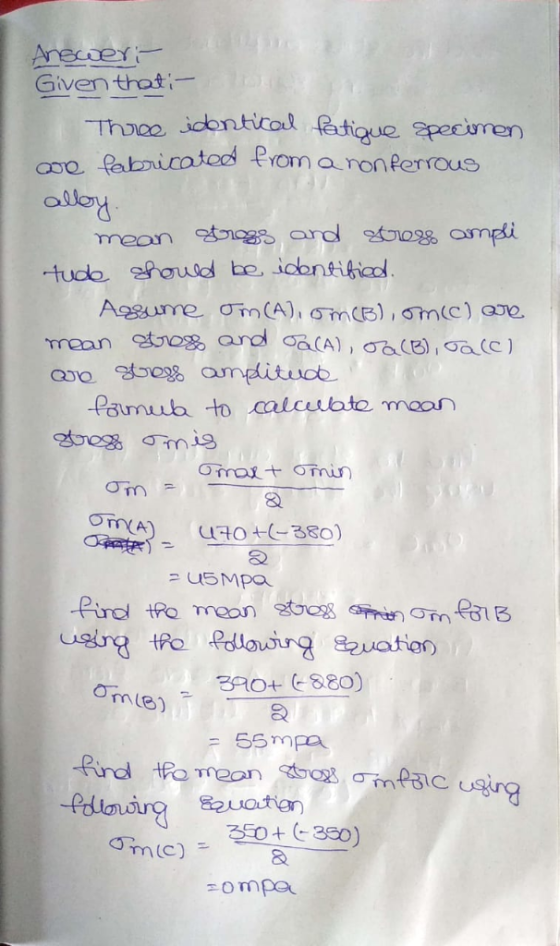

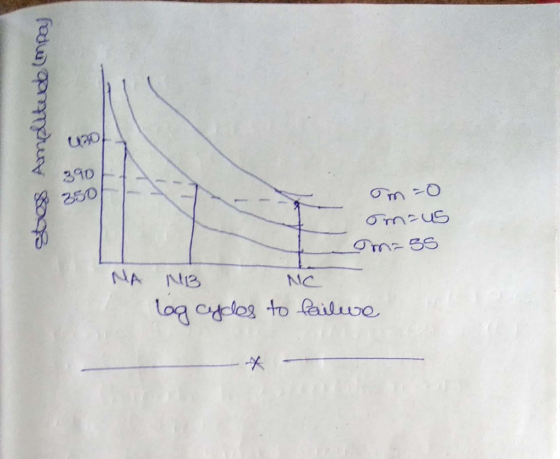

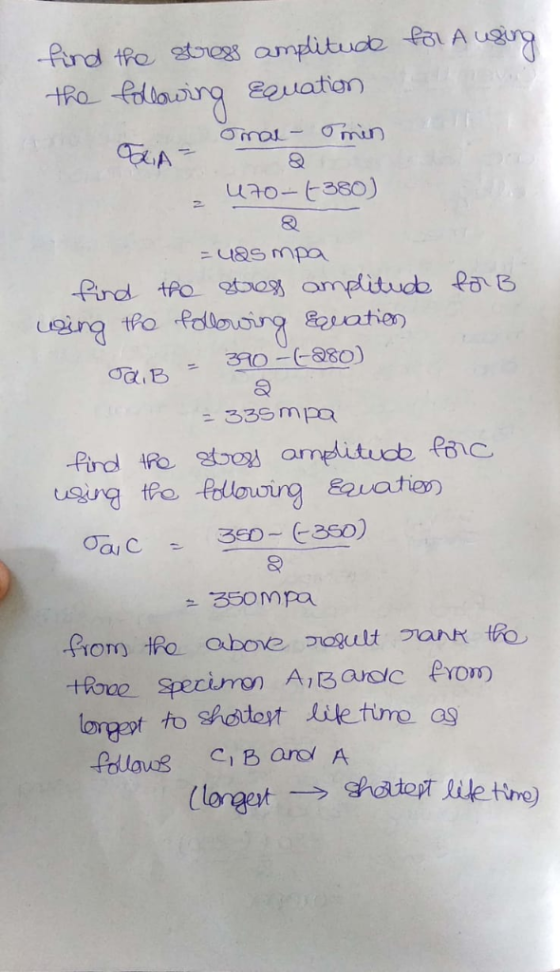

eメー Giventhot Prom a ron Perrous ola mle) 55maLag to dta orgeot to shoutot lile ture as390 250

1 0
Add a comment
Know the answer?
Add Answer to:
4 Three identical fatigue specimens (denoted A, B, and C) are fabricated from a nonferrous alloy....
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Q.3. Three identical fatigue specimens (denoted A, B, and C) are fabricated from a nonferrous alloy....

    Q.3. Three identical fatigue specimens (denoted A, B, and C) are fabricated from a nonferrous alloy. Each is subjected to one of the maximum-minimum stress cycles listed in the following table; the frequency is the same for all three Specimen Omax (MPa) Omin(MPa) tests. Rank the fatigue lifetimes of A + 450 150 these three specimens from the B + 300 300 shortest to the longest. с + 500 200

  • Q6. (a) Three identical fatigue specimens (denoted A, B and C) are fabricated from a non-ferrous...

    Q6. (a) Three identical fatigue specimens (denoted A, B and C) are fabricated from a non-ferrous alloy. Each is subjected to one of the maximum- minimum stress cycles listed in Table 26 (the frequency is the same for all tests) Table 26 Specimen Omax (MPa) Omin (MPa) A +450 -150 +300 -300 +500 -200 Rank the three specimens in terms of their fatigue lifetimes (highest to lowest). Justify this ranking [5 marks] (b) A cylindrical tie rod of diameter 20...

  • A 6.4 mm diameter cylindrical rod fabricated from a 2014-T6 aluminium alloy is subjected to reversed...

    A 6.4 mm diameter cylindrical rod fabricated from a 2014-T6 aluminium alloy is subjected to reversed tension-compression load cycling along its axis of +7400 N to -2250N. Determine the fatigue life using the data shown below. 500 400 1045 steel 300 2014-T6 aluminum alloy 200 100 Red brass 10 103 104 106 105 108 10° 1010 Cycles to failure, N Stress amplitude, S (MPa) A 6.4 mm diameter cylindrical rod fabricated from a 2014-T6 aluminium alloy is subjected to reversed...
