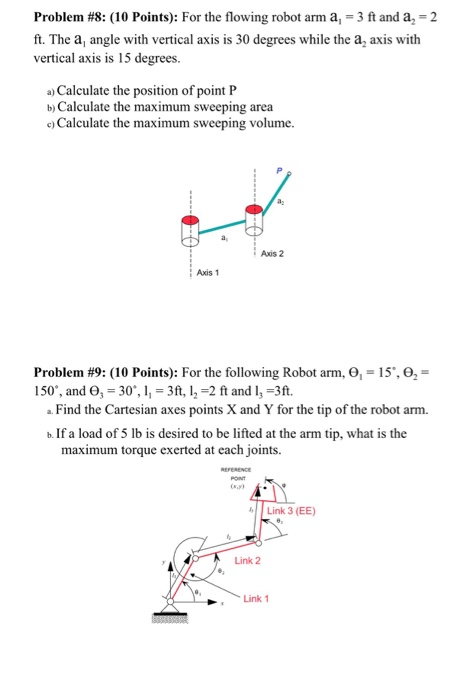

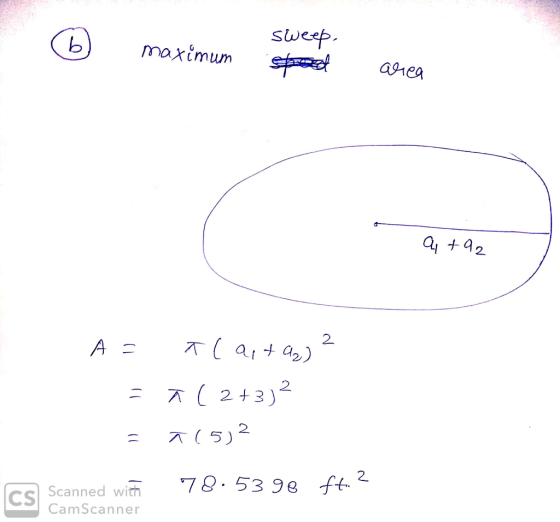

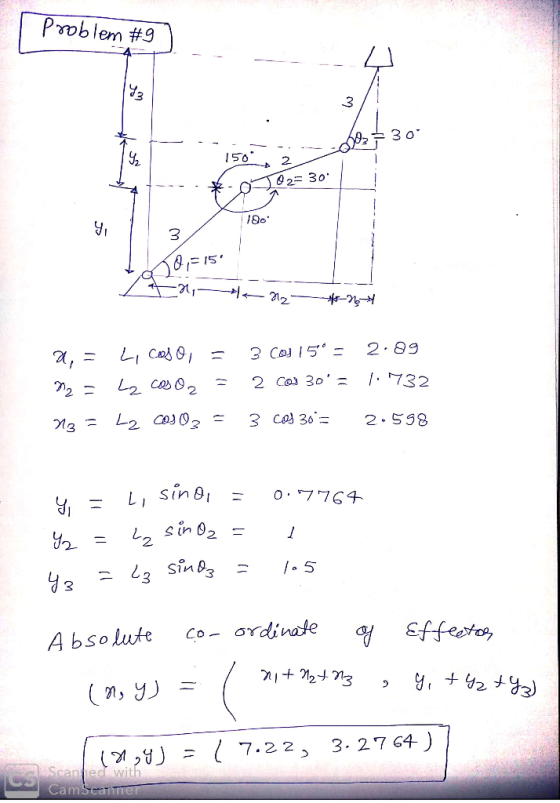

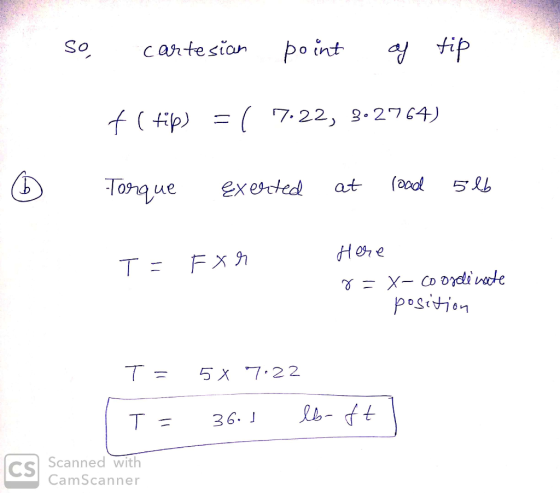

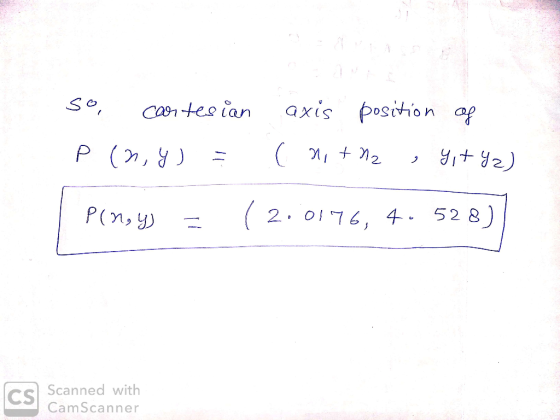

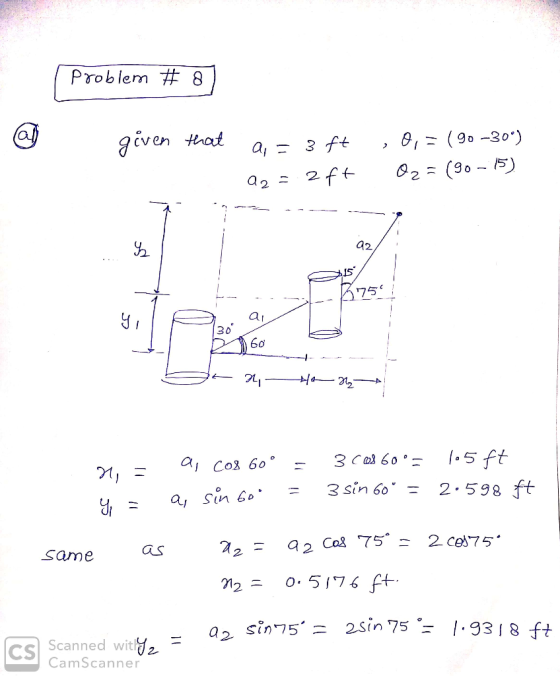

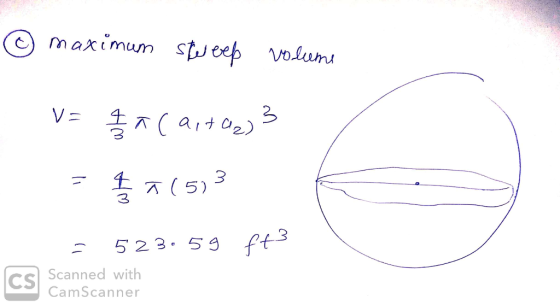

Problem #8: (10 Points): For the flowing robot arm ai-3 ft and a,-2 ft. The a, angle with vertica...
