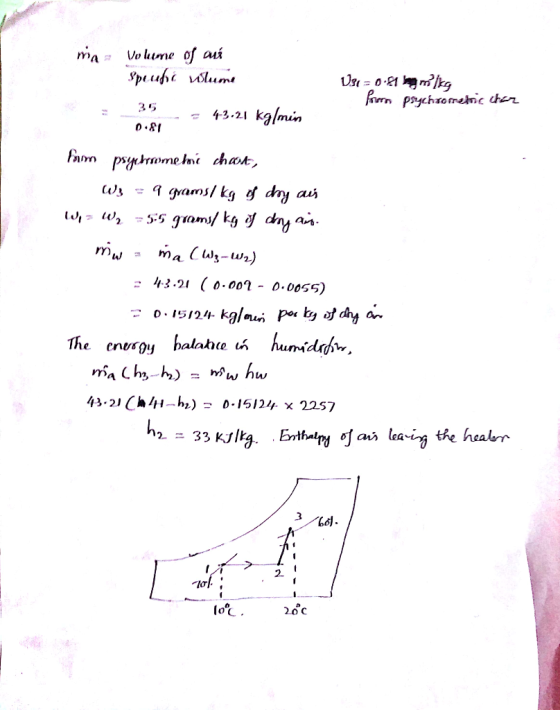

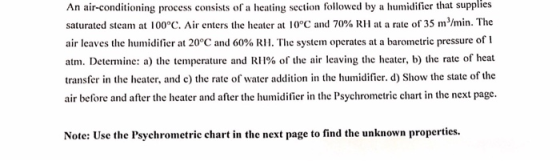

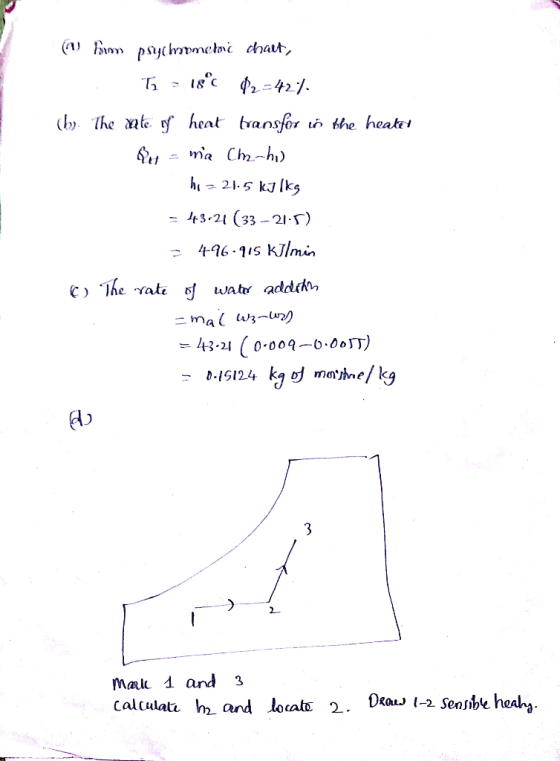

Supplies An air-conditioning process consists of a heating section followed by a humidifier that ...
Anair-conditioning system operates at a total pressure of 1 atm and consists of a heating section...
Anair-conditioning system operates at a total pressure of 1 atm and consists of a heating section and a humidifier that supplies wet steam (saturated water vapor) at 100° C. Air enters the heating section at 10°C and 70 percent relative humidity at a rate of 35 mP/min, and it leaves the humidifying section at 20°C and 60 percent relative humidity. Determine (a) the temperature and relative humidity of air when it leaves the heating section, (b) the rate of heat...
Please DO NOT use the psychrometric chart to solve the following: An air-conditioning system operates at...
Please DO NOT use the psychrometric chart to solve the following: An air-conditioning system operates at a total pressure of 95kPa and consists of a heating section and a humidifier that supplies wet steam (saturated water vapor) at 100°C. Air enters the heating section at 10°C and 70 percent relative humidity at a rate of 35 m3/min, and it leaves the humidifying section at 20°C and 60 percent relative humidity. Determine (a) the temperature and relative humidity of air when...
An air conditioning system operates at a total pressure of 95 kPa and consists of a...
An air conditioning system operates at a total pressure of 95 kPa and consists of a heating section and a humidifier that supplies wet steam (saturated water vapor) at 100°C. Air enters the heating section at 10°C and 70 percent relative humidity at a rate of 35 m/min, and it leaves the humidifying section at 20°C and 60 percent relative humidity. Determine (a) the temperature and relative humidity of air when it leaves the heating section, (b) the rate of...
Problem 14.7: An air-conditioning system operates at a total pressure of 95kPa and consists of a...
Problem 14.7: An air-conditioning system operates at a total pressure of 95kPa and consists of a heating section and a humidifier that supplies wet steam (saturated water vapor) at 100°C. Air enters the heating section at 10°C and 70 percent relative humidity at a rate of 35 m'/min, and it leaves the humidifying section at 20°C and 60 percent relative humidity. Determine (a) the temperature and relative humidity of air when it leaves the heating section, (b) the rate of...
Problem 4- A HVAC system is operating in heating mode with a steam humidification system, as...
Problem 4- A HVAC system is operating in heating mode with a steam humidification system, as shown below. Air enters the system at 10°C and 70% relative humidity at a rate of 35m3/min. After heating and subsequent humidification by saturated water vapor at 100°C, the air leaves the system at 20°C and 60% relative humidity. Find (1) the temperature and relative humidity of the air when it leaves the heating section, (2) the heat transferred to the air in the...
Air enters a heating and humidification system at 5◦C, 50% relative humidity. The air first passe...
Air enters a heating and humidification system at 5◦C, 50% relative humidity. The air first passes over a heater, and is then humidified with steam. The steam is supplied at 200 kPa pressure and 300◦C. The air leaves the system at 30◦C, 60% relative humidity. (a) Determine the heat transfer to the air, per unit mass dry air. (b) Determine the temperature and relative humidity of the air leaving the heating section (i.e., prior to the humidification section). (c) Determine...
3. (45) Operating data for an air-conditioning process is shown below. Air flows through a soaked...
3. (45) Operating data for an air-conditioning process is shown below. Air flows through a soaked pad and then a heating section. The device is well-insulated and the volume flow rate of the incoming moist air is 150 m3/min. Please determine (a) (6) The humidity ratio of the incoming and exiting air. (b) (10) The humidity ratio and temperature of the intermediate state (i). The enthalpy of liquid water is negligible. (c) (11) The amount of water evaporated into the...
150 ft3/min of air at 80F dry-bulb temperature and 70% relative humidity enters an air conditioning...
150 ft3/min of air at 80F dry-bulb temperature and 70% relative humidity enters an air conditioning unit and leaves it as saturated air at 50F. Part of the moisture in the air that condensate is collected and removed at 55F. Draw the cycle on the attached chart and a)Determine the rates of heat removal from the air. b)Determine the rate of moisture removal from the air
An air-water vapor mixture enters a heater-humidifier unit at 5°C, 100 kPa, 50% rh. The flow rate of dry air is 0.1 kg/s. Liquid water at 10°C is sprayed into the mixture al the rate of 0.0022 kg/s. The mixture leaves the unit at 30°C, 100 kPa. Calculate
An air-water vapor mixture enters a heater-humidifier unit at 5°C, 100 kPa, 50% rh. The flow rate of dry air is 0.1 kg/s. Liquid water at 10°C is sprayed into the mixture al the rate of 0.0022 kg/s. The mixture leaves the unit at 30°C, 100 kPa. Calculate (a) the relative humidity at the outlet (b) the rate of heat transfer to the unit
Question z a) What is the physical interpretation of the wet-bulb temperature? b) During winter time...
Question z a) What is the physical interpretation of the wet-bulb temperature? b) During winter time a room is maintained at a steady temperature and humidity by an air-conditioning system shown. 200 m3/min of room return air at 30°C, 50% relative humidity is first mixed with 40 m3/min of outdoor at 10°C, 20% relative humidity. The mixed air is then introduced to a heater where the temperature of the air is raised to 45°C and supplied to the room. [Note...
Anair-conditioning system operates at a total pressure of 1 atm and consists of a heating section and a humidifier that supplies wet steam (saturated water vapor) at 100° C. Air enters the heating section at 10°C and 70 percent relative humidity at a rate of 35 mP/min, and it leaves the humidifying section at 20°C and 60 percent relative humidity. Determine (a) the temperature and relative humidity of air when it leaves the heating section, (b) the rate of heat...
An air conditioning system operates at a total pressure of 95 kPa and consists of a heating section and a humidifier that supplies wet steam (saturated water vapor) at 100°C. Air enters the heating section at 10°C and 70 percent relative humidity at a rate of 35 m/min, and it leaves the humidifying section at 20°C and 60 percent relative humidity. Determine (a) the temperature and relative humidity of air when it leaves the heating section, (b) the rate of...
Problem 14.7: An air-conditioning system operates at a total pressure of 95kPa and consists of a heating section and a humidifier that supplies wet steam (saturated water vapor) at 100°C. Air enters the heating section at 10°C and 70 percent relative humidity at a rate of 35 m'/min, and it leaves the humidifying section at 20°C and 60 percent relative humidity. Determine (a) the temperature and relative humidity of air when it leaves the heating section, (b) the rate of...
Problem 4- A HVAC system is operating in heating mode with a steam humidification system, as shown below. Air enters the system at 10°C and 70% relative humidity at a rate of 35m3/min. After heating and subsequent humidification by saturated water vapor at 100°C, the air leaves the system at 20°C and 60% relative humidity. Find (1) the temperature and relative humidity of the air when it leaves the heating section, (2) the heat transferred to the air in the...
3. (45) Operating data for an air-conditioning process is shown below. Air flows through a soaked pad and then a heating section. The device is well-insulated and the volume flow rate of the incoming moist air is 150 m3/min. Please determine (a) (6) The humidity ratio of the incoming and exiting air. (b) (10) The humidity ratio and temperature of the intermediate state (i). The enthalpy of liquid water is negligible. (c) (11) The amount of water evaporated into the...
Question z a) What is the physical interpretation of the wet-bulb temperature? b) During winter time a room is maintained at a steady temperature and humidity by an air-conditioning system shown. 200 m3/min of room return air at 30°C, 50% relative humidity is first mixed with 40 m3/min of outdoor at 10°C, 20% relative humidity. The mixed air is then introduced to a heater where the temperature of the air is raised to 45°C and supplied to the room. [Note...
