The diagram below shows a beam of light shining through three linear polarizers in a row. The polarizing axis of each polarizer is measured at an angle (ϴ1,ϴ2,ϴ3) from vertical. Suppose that the orig...

The diagram below shows a beam of light shining through three linear polarizers in a row. The polarizing axis of each polarizer is measured at an angle (ϴ1,ϴ2,ϴ3) from vertical.Transmitted beam Vertical 2 3 Incident beam

  1. Suppose that the original beam of light emanates from a vertically polarized laser. The laser has a power output of 1 mW and the beam has a diameter of 2 mm. What is the intensity of the laser beam before it travels through any polarizers?
  2. Calculate the final intensity of the transmitted beam if ϴ1= 15°, ϴ2 = 40°, and ϴ3 = 82°.
  3. What would the answer to (b) be if the incident beam were unpolarized, but had the same initial intensity?
  4. What is the angle of polarization of the light traveling between the second and third polarizers? State your answer as an angle measured from the vertical.
  5. Now imagine adding a fourth polarizer. At what angle should you orient the axis of the fourth polarizer to completely cancel out the light exiting from the third polarizer? State your answer as an angle measured from the vertical.
Transmitted beam Vertical 2 3 Incident beam
0 0
Report
Answer #1

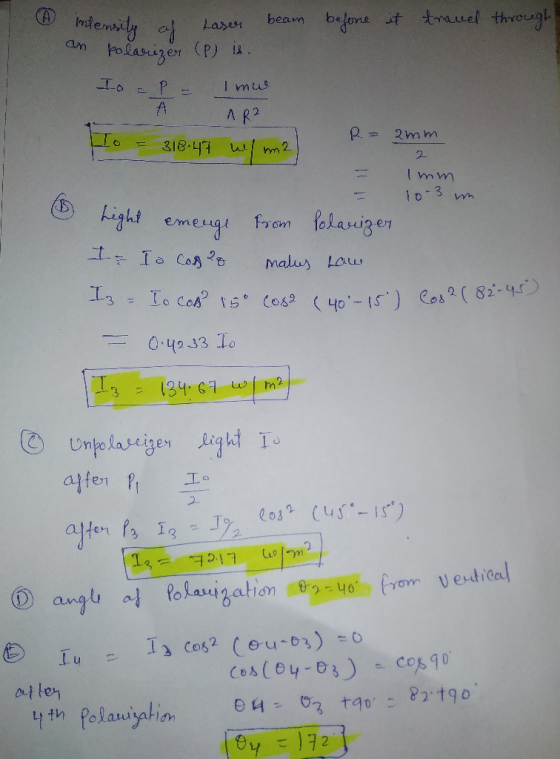

I mtus A R2 2. 0 4933 1 Unbo 2

Know the answer?
Add Answer to:
The diagram below shows a beam of light shining through three linear polarizers in a row. The polarizing axis of each polarizer is measured at an angle (ϴ1,ϴ2,ϴ3) from vertical. Suppose that the orig...
Your Answer: Your Name: What's your source?
Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • Three polarizing disks whose planes are parallel and centered on common axis. The directions of their...

    Three polarizing disks whose planes are parallel and centered on common axis. The directions of their transmission axes relative to the vertical are respectively: θ1 = 37o clockwise, θ2 = 25o counter-clockwise, and θ3 = 18o clockwise. A beam of light polarized along the vertical is incident onto the first polarizer with an intensity of I0 = 36.0 W/m². Calculate the transmitted intensity through all three polarizers. 7. For each of the three sheets of polarizing material shown in the...

  • A beam of initially unpolarized light passes through a sequence of three ideal polarizers. The angle...

    A beam of initially unpolarized light passes through a sequence of three ideal polarizers. The angle between the axes of the and second polarizers, labeled P12, is 22.1° and the angle between the axes of the second and third polarizers, labeled 023, 53.3°. What is the ratio of the intensity of light emerging from the third polarizer, 13 , to the intensity of light incident on the first polarizer, I ? A beam of unpolarized light shines on a stack...

  • In Figure (a) below, unpolarized light is sent into a system of three polarizing sheets.The angles...

    In Figure (a) below, unpolarized light is sent into a system of three polarizing sheets.The angles θ1, θ2, and θ3 of the polarizing directions are measured counterclockwise from the positive direction of the y axis (they are not drawn to scale). Angles θ1 and θ3 are fixed, but angle θ2 can be varied. Figure (b) gives the intensity of the light emerging from sheet 3 as a function of θ2. (The scale of the intensity axis is not indicated.) What...

  • An optical system consists of a polarizer (polarizing axis at 30o relative to the vertical) and...

    An optical system consists of a polarizer (polarizing axis at 30o relative to the vertical) and analyzer (polarizing axis at 75o relative to vertical). 1) When unpolarized light with intensity 60 W/m2 is incident on the polarizer, the transmitted intensity through the whole system is: 15 W/m2 7.5 W/m2 30 W/m2 zero 2) In the above situation, the transmitted light has its polarization axis at an angle relative to the vertical of: 0 degrees 30 degrees 90 degrees 75 degrees...

  • GOAL Understand how polarizing materials affect light intensity. Unpolarized light is incident upon three polarizers. The...

    GOAL Understand how polarizing materials affect light intensity. Unpolarized light is incident upon three polarizers. The first polarizer has a vertical transmission axis, the second has a transmission axis rotated 30.0 degree with respect to the first, and the third has a transmission axis rotated 75.0 degree relative to the first. If the initial light intensity of the beam is I_b, calculate the light intensity after the beam passes through the second polarizer and the third polarizer. After the beam...

  • Consider three polarizing filters oriented as shown in the figure below. A beam of unpolarized light...

    Consider three polarizing filters oriented as shown in the figure below. A beam of unpolarized light is directed through the three filters. The first filter has a polarization axis along the vertical, the second has its polarization axis rotated at an angle of 55° from the vertical, and the third has its axis along the horizontal Polarizer Transmission axis Polarizer Polarizer (a) What fraction of the light intensity comes out of the third filter?

  • A beam of initially unpolarized light passes through a sequence of three ideal polarizers. The angle...

    A beam of initially unpolarized light passes through a sequence of three ideal polarizers. The angle 0 12 between the axes of the first and second polarizers is 19.7°, and the angle $23 between the axes of the second and third polarizers is 53.3º. 1912 1 EEN 12 What is the ratio of the intensity 13 of light emerging from the third polarizer to the intensity Io of light incident on the first polarizer? I3 Io -

  • A beam of initially unpolarized light passes through a sequence first and second polarizers, labeled is...

    A beam of initially unpolarized light passes through a sequence first and second polarizers, labeled is 16.7 and the angle between the axes of the second and third polarizers, labeled of three ideal polarizers. The angle between the axes of the s hat is the ratio of the intensity of light emerging from the third polarizer, 13, to the intensity of light incident on is 51.1. W the first polarizer, lo? 13 Io

  • Light is entering a polarizer or set of polarizers from the left. Determine the relative intensity...

    Light is entering a polarizer or set of polarizers from the left. Determine the relative intensity of the light exiting on the right after passing through all of the polarizers. The dashed vertical lines represent the vertical reference. The solid lines represent either the polarization angle of the light or the transmission angle of the polarizer. CW represents clockwise and CCW represents counterclockwise as viewed from the right looking back to the left along the path of the light. Unpolarized...

  • what intensity of light emerges from the third polarizer? Suppose 3 polarizers have their transmission axes...

    what intensity of light emerges from the third polarizer? Suppose 3 polarizers have their transmission axes oriented as follows the angle between polarizer 1 and 2 is 30 degree, and the angle between polarizers 2 and 3 is 60 degree If 10W/m2 of unpolarized light is incident on the first polarizer, what intensity of light emerges tom e polarizer?
